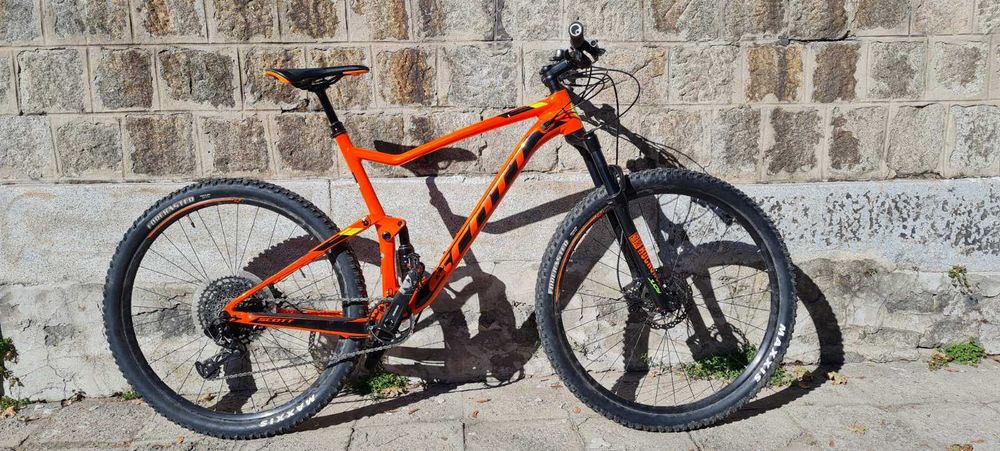

Product Scott Spark 960 Bike
Model Year 2019
Intended Use Cross Country Trail
Rider Unisex
Sizes and Geometry XL
Wheel Size 29"
Frame Material Aluminum
Frame Material Details Alloy SL 6011 custom butted hydroformed tubes
Rear Travel 120mm

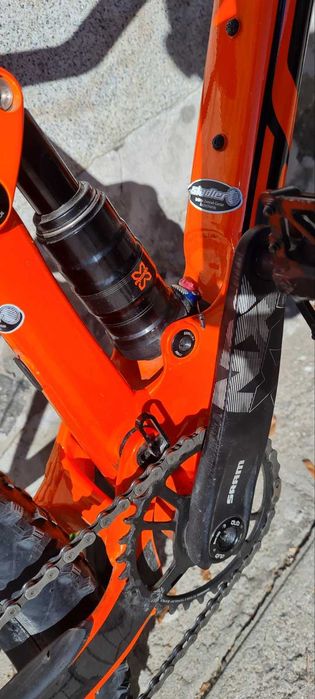

Rear Shock X-Fusion Nude Trunnion, Scott custom with travel and geo adjust, 120mm-85mm, 3 modes (Lockout, Traction Control, Descend), rebound adjust, 165mm X 45mm

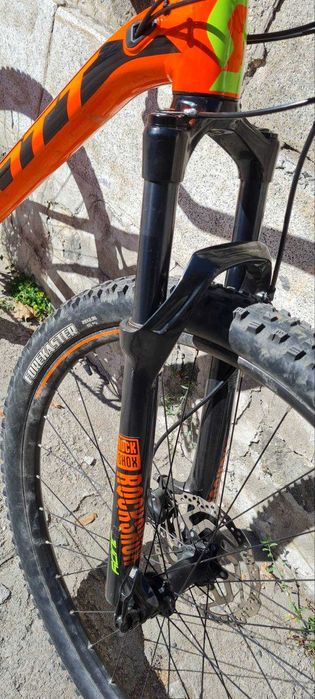

Fork RockShox Judy Silver RL Solo Air, 2 modes, lockout, rebound adjust, 15x110mm QR axle
Fork Travel 120mm
Head Tube Diameter Tapered
Headset Syncros OE press fit

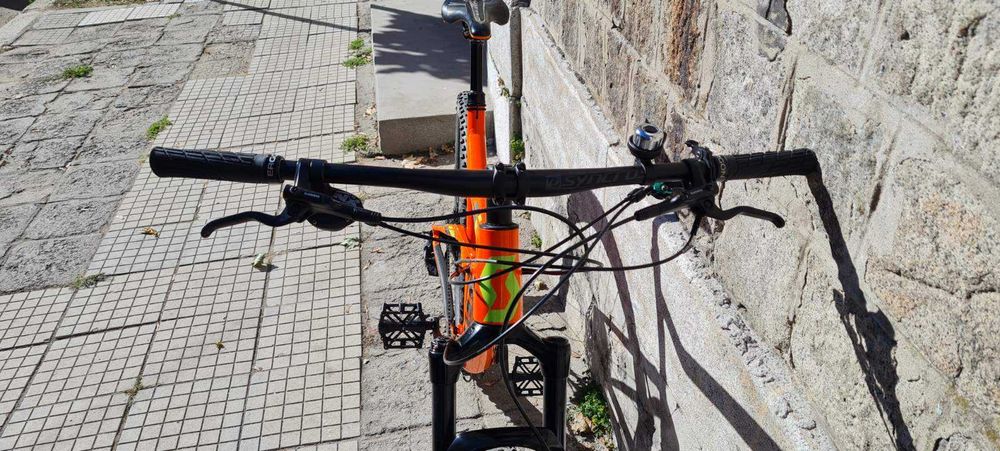

Handlebar Syncros T-Bar, 6061 alloy, flat, 31.8mm diameter, 9°, 740mm width
Stem Syncros, 6061 alloy, 6°, 31.8mm diameter
Stem length: 80mm (XL)
Grips Syncros Pro lock-on
Brakes Shimano MT201 with SM-RT10 CL rotors (180mm front and rear)
Brake Levers Shimano MT201
Drivetrain 1x
Shifters SRAM NX Eagle, 12-speed
Rear Derailleur SRAM NX Eagle, 12-speed
Cranks SRAM NX Eagle DUB Boost
Chainrings 32 tooth
Bottom Bracket SRAM DUB PF integrated, 41x92mm
Pedals None
Chain SRAM CN NX Eagle

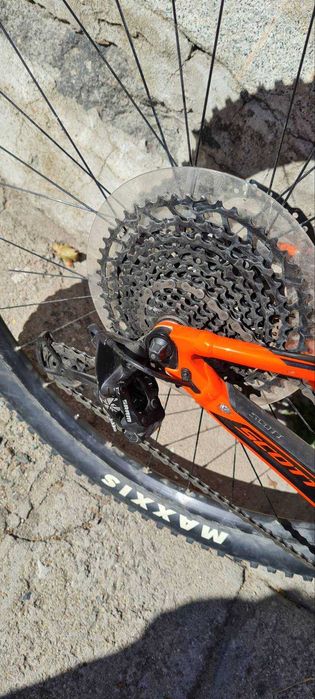

Cassette SRAM NX XG1230, 10-50 tooth, 12-speed
Rims Syncros X-25S, 25mm tubeless ready, 32 hole
Hubs Formula CL811 15x110mm (front), Formula CT1702 5x141mm (rear)
Spokes Stainless black 15G 1.8mm
Tires Maxxis Rekon 29 x 2.4", 60 tpi(front and rear)
Saddle Syncros XR2.5
Seatpost Syncros Dropper 2.5 Remote 120mm
Seatpost Diameter 31.6mm
Seatpost Clamp Syncros single bolt
Rear Dropout / Hub Dimensions 5x141mm
Max. Tire Size 29 x 2.6"
Bottle Cage Mounts Yes
Colors Orange
