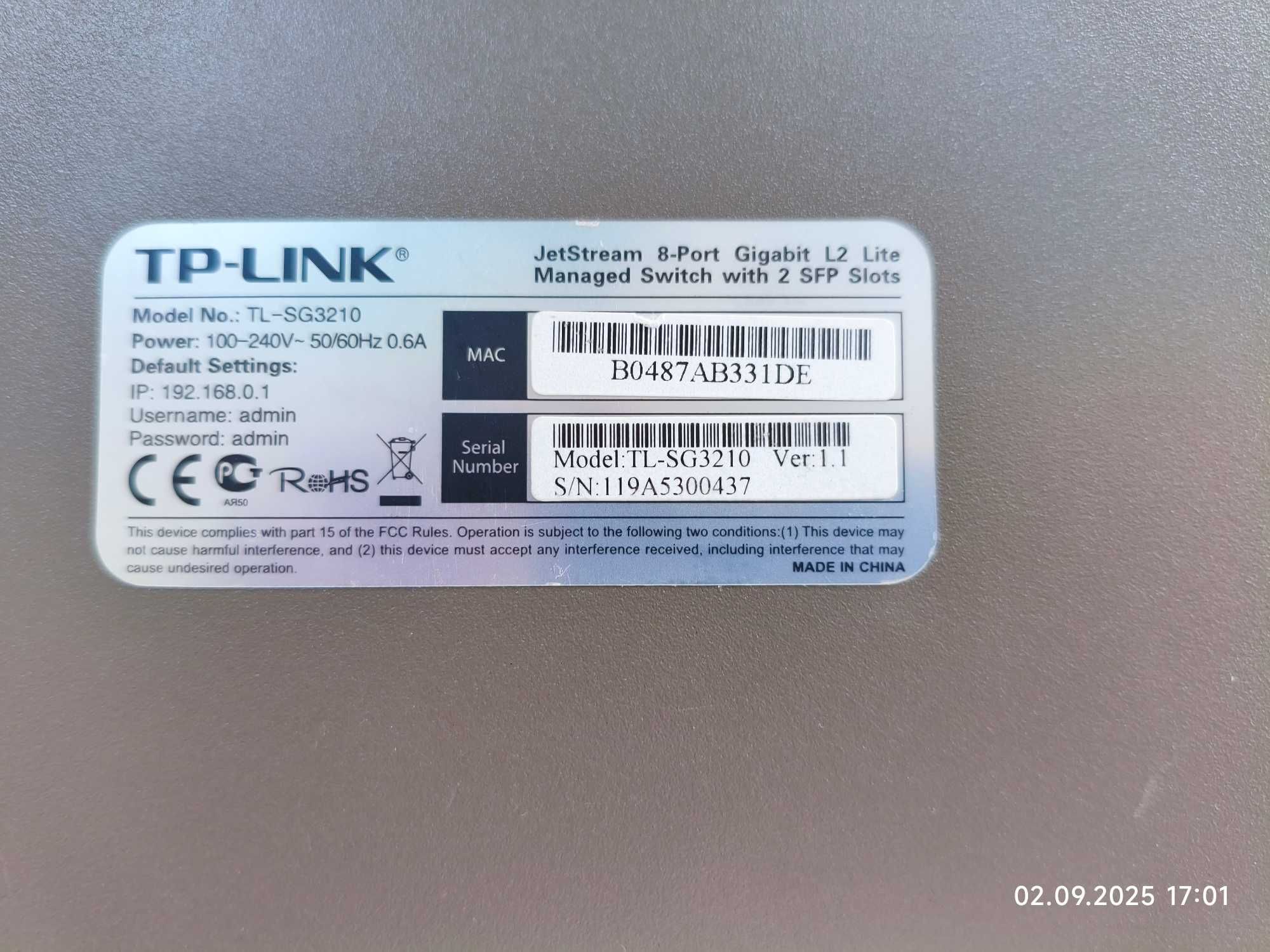

JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots
- IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm
control, DHCP Snooping, 802.1X Authentication and Radius provide you
robust security strategies
- L2/L3/L4 QoS and IGMP snooping optimize voice and video application
- WEB/CLI managed modes, SNMP, RMON bring abundant management features

HARDWARE FEATURES

Interface: 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
2 1000Mbps SFP Slots 1 Console Port

Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
1000BASE-X: MMF, SMF

Dimensions ( W x D x H ) 294*180*44 mm
Power Supply 100～240VAC, 50/60Hz

PERFORMANCE
Bandwidth/Backplane 20Gbps
MAC Address Table 8k
Packet Buffer Memory 512KB
Packet Forwarding Rate 14.9Mpps
Jumbo Frame 10240 Bytes

SOFTWARE FEATURES
Quality of Service:
Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features:
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
Port isolation
BPDU filtering/guard
TC/Root protect
Loop back detection
802.3x Flow Control
VLAN:
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based VLAN
GARP/GVRP
Management VLAN configuration
Access Control List:
L2～L4 package filtering based on source and destination MAC address, IP
address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;
Security:
IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control

Management:
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Възможен лек коментар на цената!
