Трифазен Соларен Хибриден Инвертор Deye SUN 12Kw
Трифазен Соларен Хибриден Инвертор Deye SUN 12Kw
Трифазен Соларен Хибриден Инвертор Deye SUN 12Kw
Трифазен Соларен Хибриден Инвертор Deye SUN 12Kw
Трифазен Соларен Хибриден Инвертор Deye SUN 12Kw
ПромотирайОбнови

Частна

Доставката се поема от: купувача, лично предаване

Състояние: ново

Описание

Соларен Хибриден Инвертор Deye SUN-12K-SG04LP3 Трифазен

С 10г гаранция към Българска фирма.

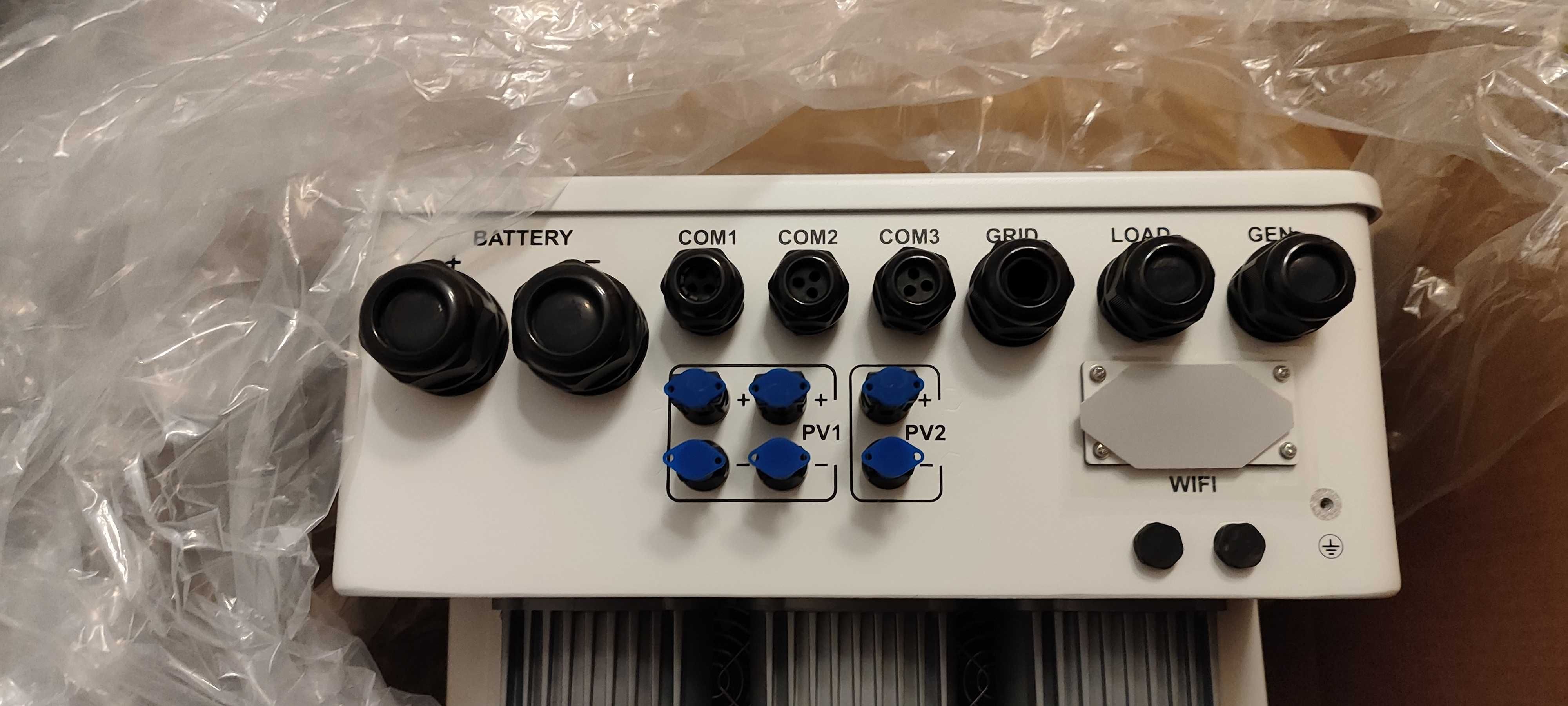

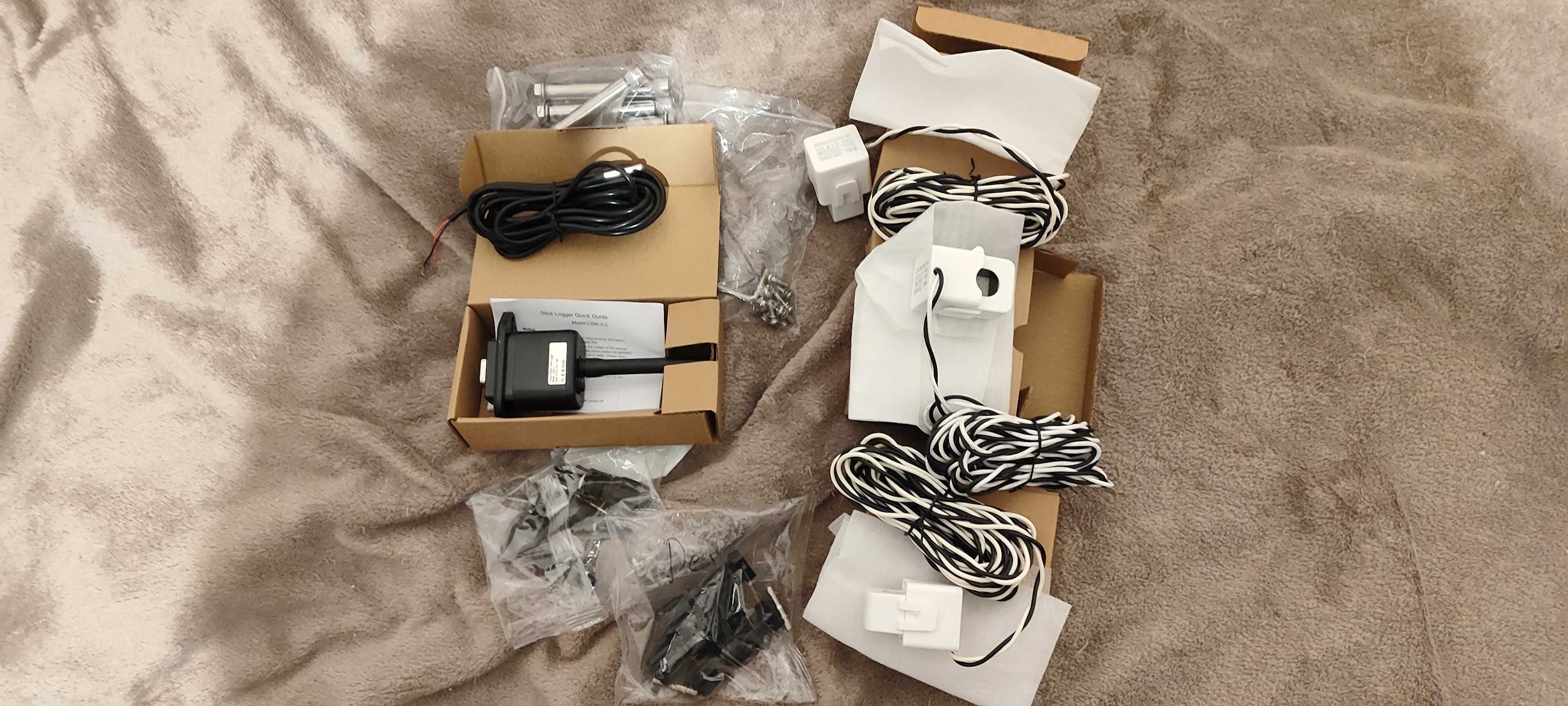

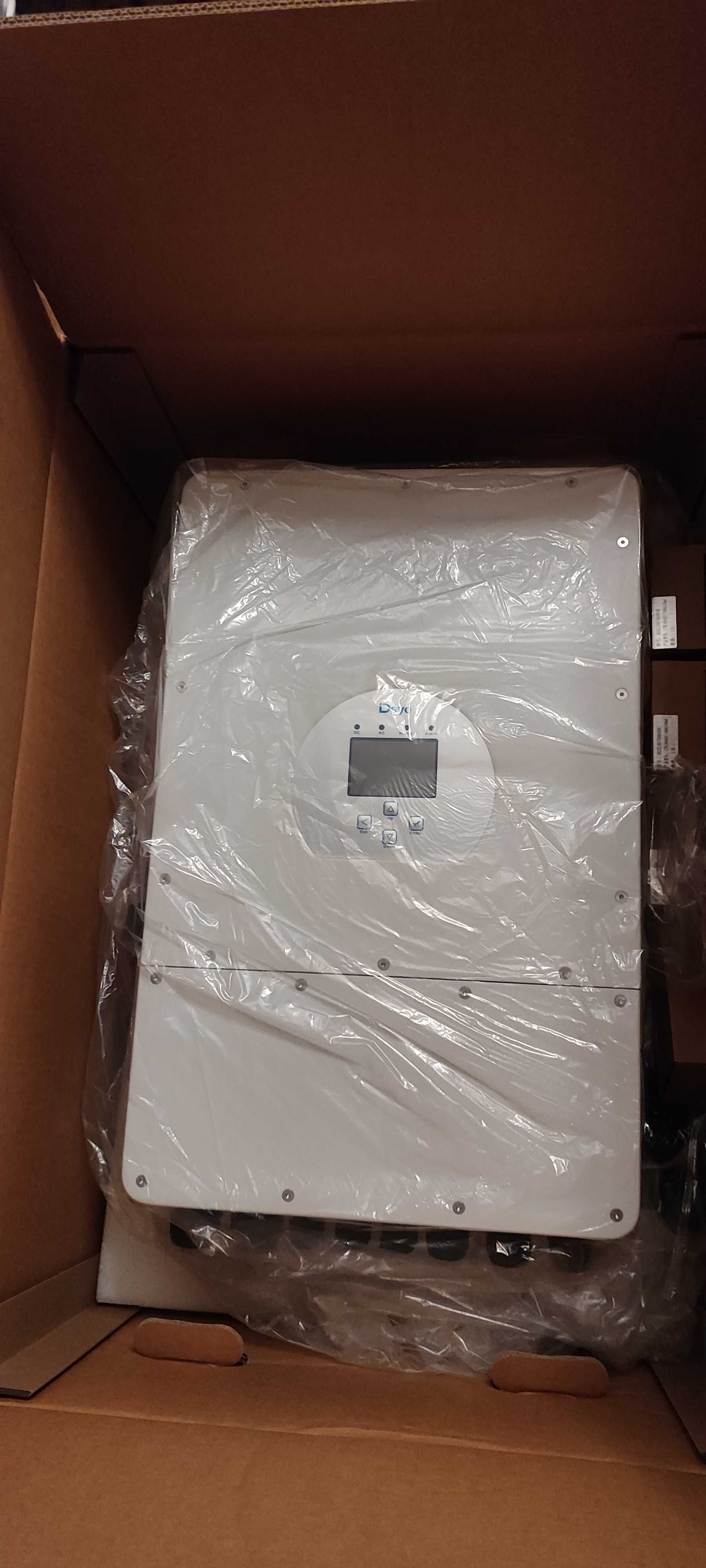

Ползван е от Март до Ноември и както се вижда от снимите е като нов, дори консумативите му са непокътнати. Продава се с оригиналната си окомплектовка, както би дошъл от магазина.

Пълни спецификаци - на официалната страница: deyeinverter.com/product/hybrid-inverter-1/sun5-6-8-10-12ksg04lp3.html

Имам и налични слънчеви панели JaSolar 460 Wp.

Model SUN-5K-SG04LP3-EU SUN-6K-SG04LP3-EU SUN-8K-SG04LP3-EU SUN-10K-SG04LP3-EU SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range(V) 40-60
Max.Charging Current(A) 120 150 190 210 240
Max.Discharging Current(A) 120 150 190 210 240
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of battery input 1
PV String Input Data
Max. PV Access Power (W)
10000 12000 16000 20000 24000
Max PV Input Power(W) 7500 9000 12000 15000 18000
MaxPV Input Voltage(V) 800
Start-up Voltage(V) 160
MPPT Voltage Range(V) 200-650
Rated PV Input Voltage(V) 550
Max. Operating PV Input Current (A) 13+13 26+13
Max. Input Short-Circuit Current (A) 17+17 34+17
No.of MPP Trackers/No.of String Per MPP Tracker 2/1+1 2/2+1
AC Input/Output Data
Rated AC Input/Output Active Power(W) 5000 6000 8000 10000 12000
Max AC Input/Output Apparent Power (VA) 5500 6600 8800 11000 13200
Peak Power (off-grid)(W) 2 times of rated power, 10s
Rated AC Input/Output Current(A) 7.6/7.2 9.1/8.7 12.1/11.6 15.2/14.5 18.2/17.4
Max AC Input/Output Current(A) 8.4/8 10/9.6 13.4/12.8 16.7/15.9 20/19.1
Max Continuous AC Passthrough (grid to load)(A) 45
Rated Input/Output Voltage/Range(V) 220/380V,230/400V 0.85Un-1.1Un
Grid Connection Form 3L+N+PE
Rated Input/Output Grid Frequency/Range 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi 3% (of nominal power)
DC Injection Current 0.5%ln
Efficiency
Max Efficiency 97.6%
Euro Efficiency 97.0%
MPPT Efficiency 99%
Equipment Protection
Integrated
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Interface
Communication Interface RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range -40 to +60, 45 Derating
Permissible Ambient Humidity 0-100%
Permissible Altitude 2000m
Noise ≤ 55 dB(A)
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Cabinet size(W*H*D)[mm] 422×658×254(Excluding connectors and brackets)
Weight[kg] 38
Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling Intelligent air cooling
ID: 141990557
