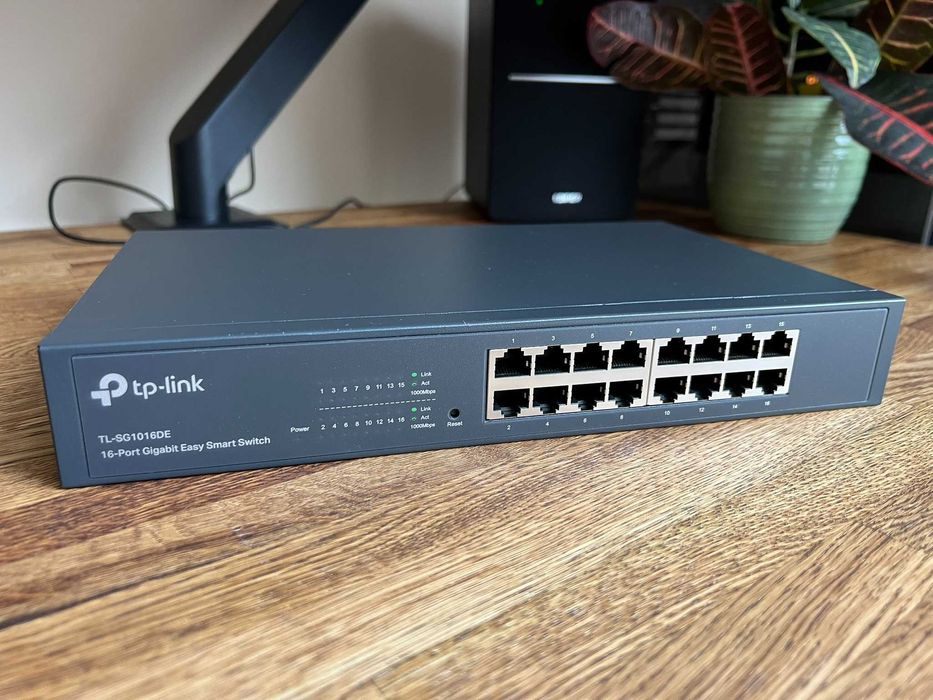

Суич TP-Link TL-SG1016DE, 16 ports 1000Mbps

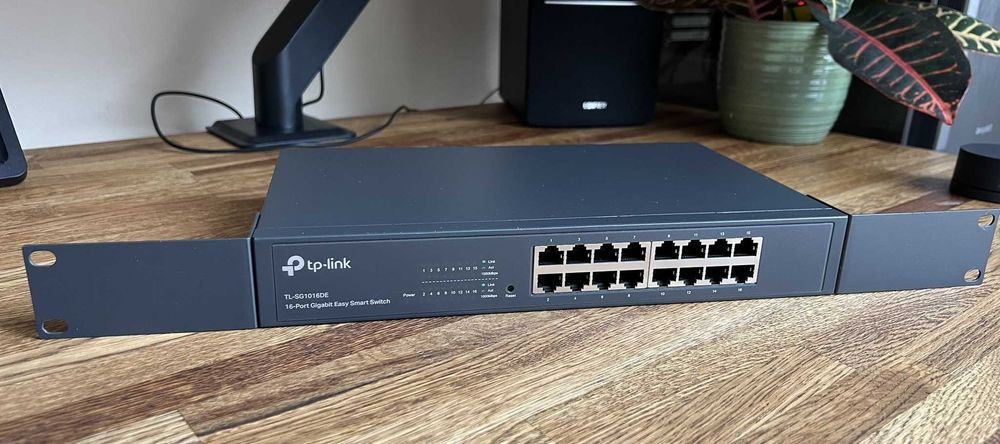

Комплект с планки за монтаж в 19" инчов рак.

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface
16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Dimensions (W X D X H) 11.6*7.1*1.7 in. (294*180*44 mm)
Fan Quantity Fanless
Power Consumption Maximum: 12.55W (220V/50Hz)
Power Supply 100-240VAC, 50/60Hz

PERFORMANCE
Switching Capacity 32Gbps
MAC Address Table 8K
Packet Buffer Memory 512KB
Packet Forwarding Rate 23.8Mpps
Jumbo Frame 10240Bytes

Quality of Service
Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features
IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Пълна информация:
www.tp-link.com/us/business-networking/easy-smart-switch/tl-sg1016de/v4/#specifications
