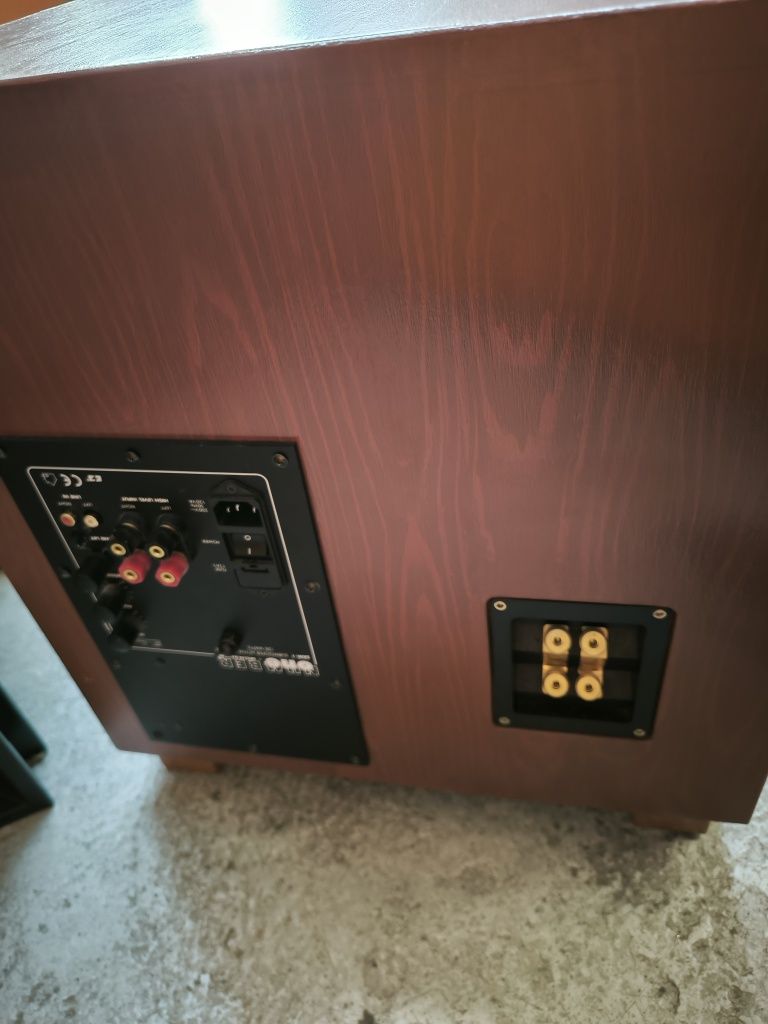

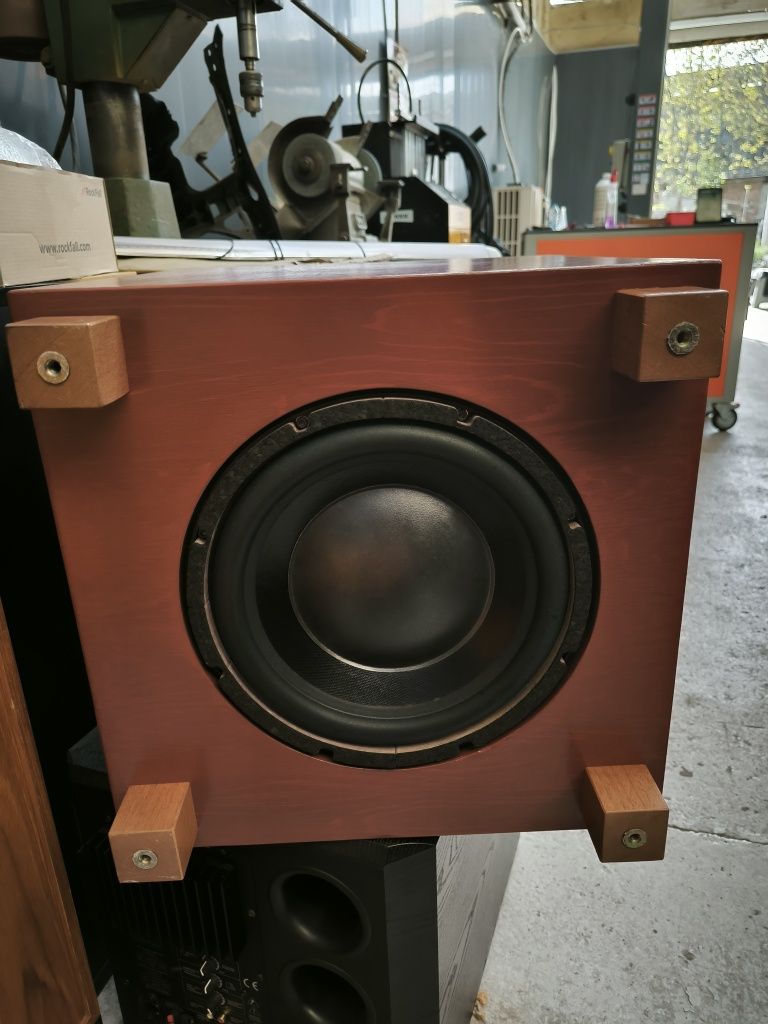

Много запазен . 12 инча активен жас и 15 инча пасивен радиатор.

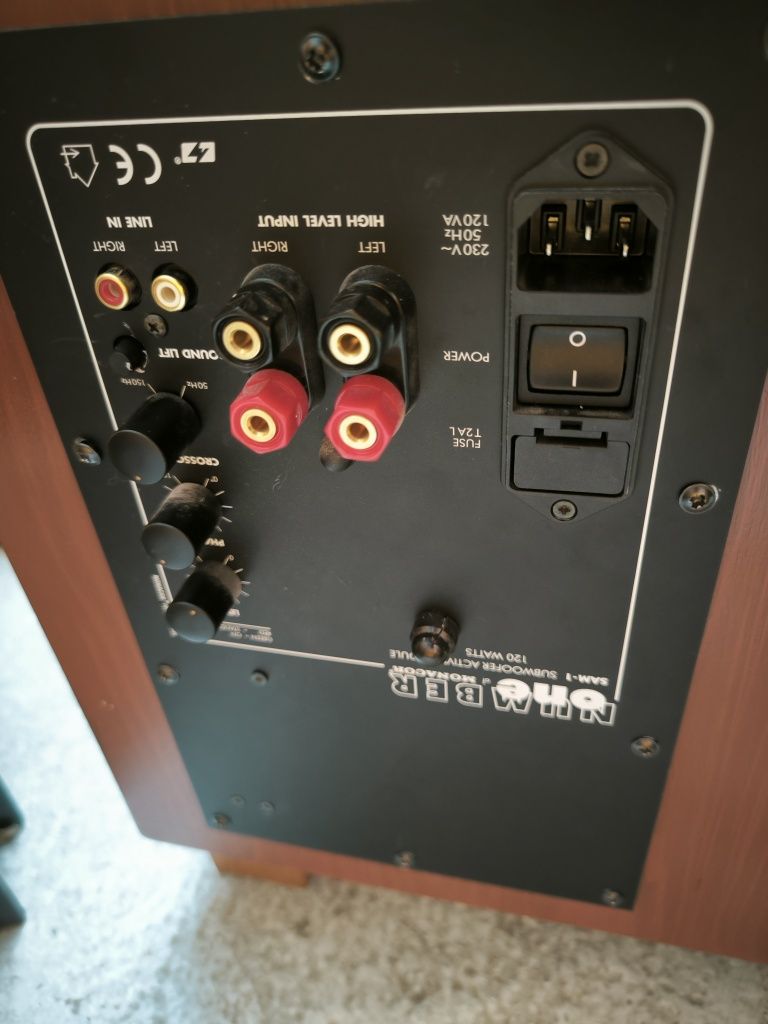

Monacor SAM-1 Active Subwoofer Module, 120W Max 8ohm - main image

Monacor SAM-1 Active Subwoofer Module, 120W Max 8ohm
Code: 32.0640

Active subwoofer module, 120W
With this active module developed in Germany, excellent subwoofer speaker systems for HiFi and home cinema can be built up in connection with the dual voice coil bass speakers (1 x 4Ω or 1 x 8Ω) shown as follows as well as with all other high-quality bass speakers.

Powerful active module of highest operating reliability due to jumpers suitable for subwoofers (12dB slope) and full range speaker systems, continuously adjustable phase control, ground lift switch of the professional technology against hum interference, 24dB subsonic filter, automatic switch-on system and extensive protective circuits (short circuit, overheating and DC voltage overload). With the usual modern music material and a crossover frequency below 100Hz, the power of the SAM-1 for the bass range corresponds to a total amplifier power for the full frequency range of several hundred watts.

Technical Specification

Output power rms 4ohm 90WRMS
Output power rms 8ohm 65WRMS
Music output power 4ohm 120WMAX
Music output power 8ohm 90WMAX
THD at rms power 0.1%
Frequency range, full range 20-20,000Hz
Frequency range, satellite -
Frequency range, subwoofer 20Hz - (var. 50-150Hz)
Output impedance 4-8ohm
Input impedance line: 24kohm/high: 17kohm
Max. input voltage Line in 4.7V mono/ 2.3V stereo
High power in 33V stereo
Max. power of high level input 4Ω 2 x 270WMAX
Max. power of high-level input 8Ω 2 x 135WMAX S/N ratio > 70dB
Power consumption, no load 2.5VA
Power consumption, stand-by 0.6VA
Stand-by activation time approx. 7 min.
Power supply 230V˜/50Hz/120VA
Required mounting cutout 140x250mm
