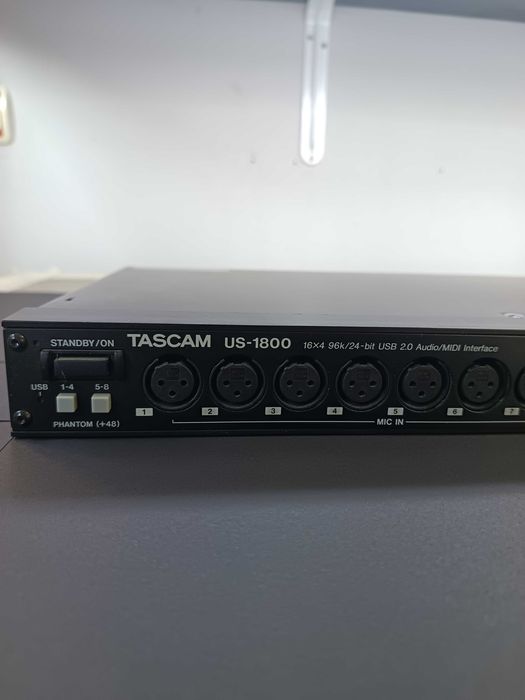

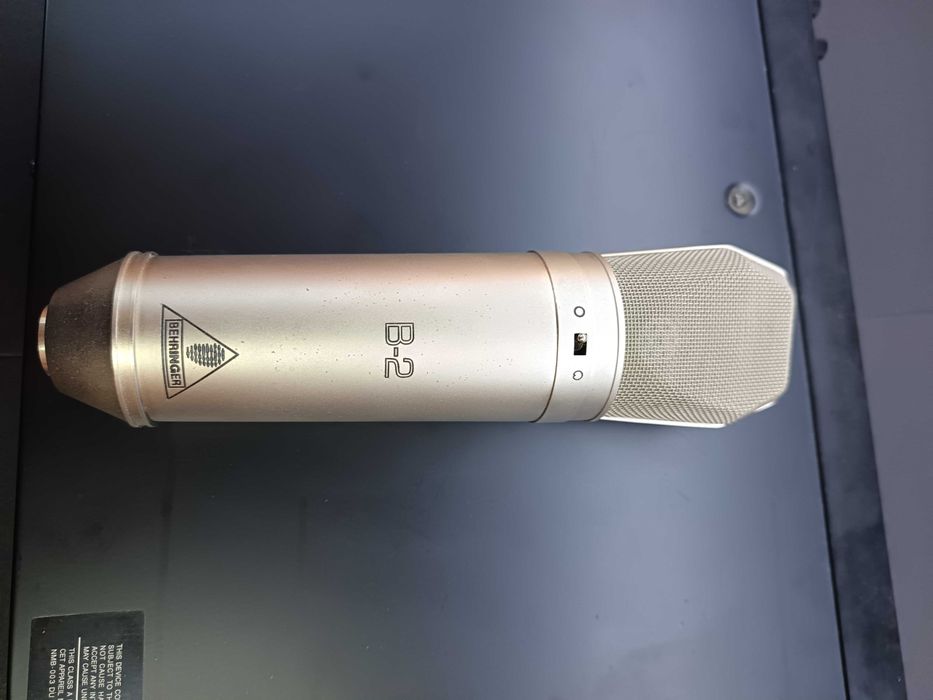

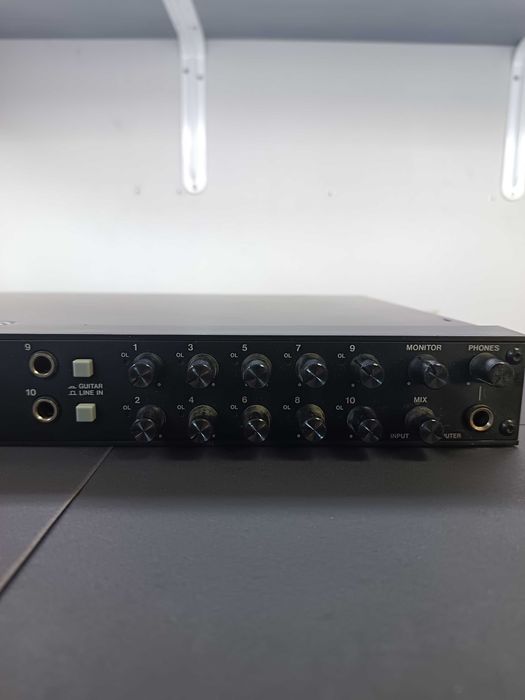

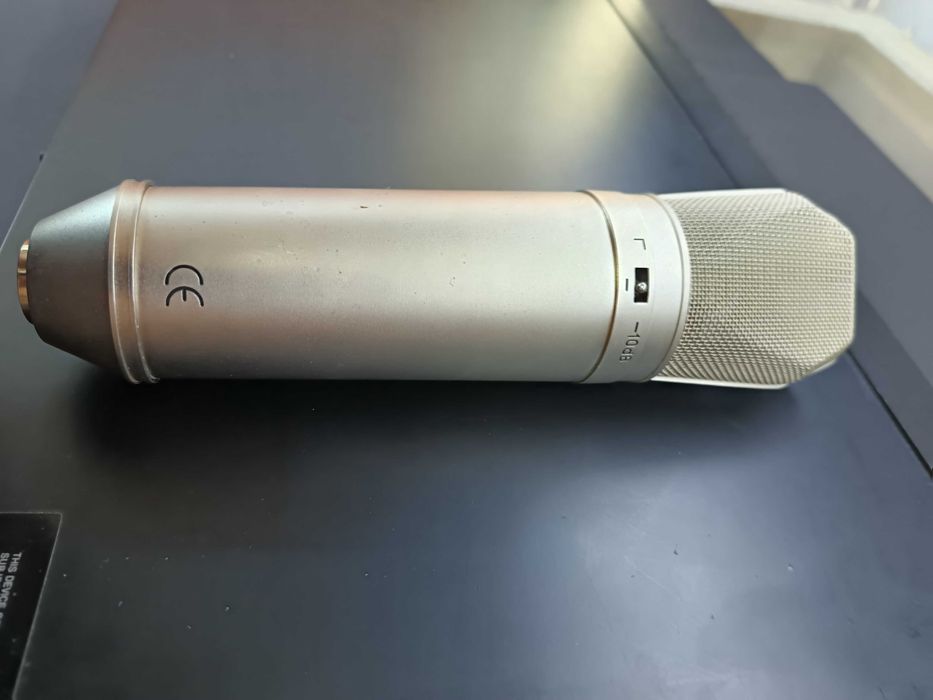

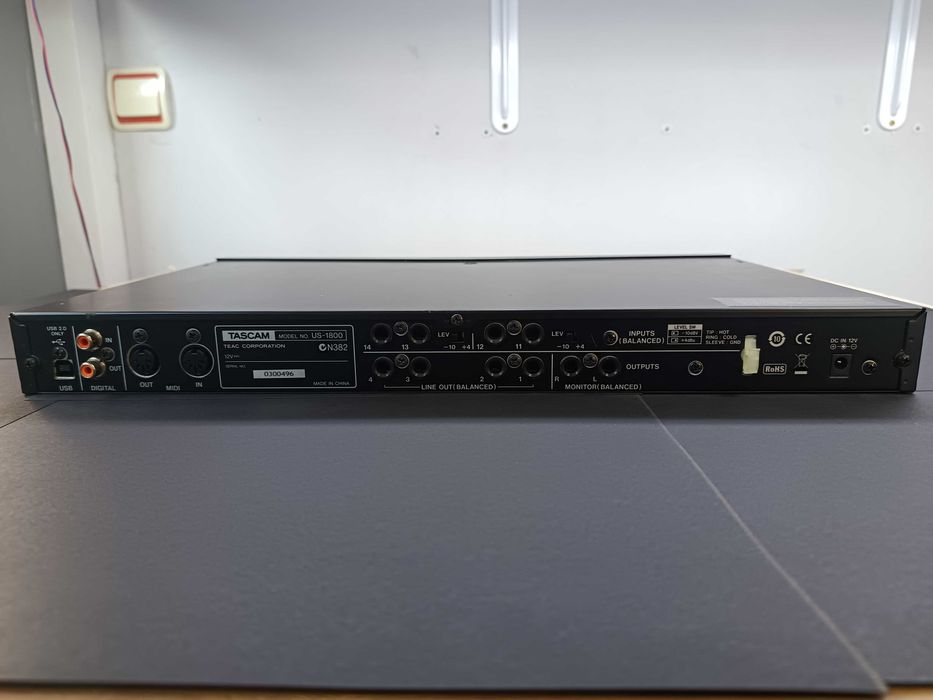

Tascam US-1800 е много входен миди интерфейс (идеален за запис на групи+барабани).Аудио картата е с оригиналното захранване на Tascam, поддържа +48V за кондензаторни микрофони.Като забележки липсват гумените крачета от долният капак и няколко винта от горният.Нормални следи от експлоатация.Към нея подарявам кондензаторен микрофон Behringer B-2. Всичко е тествано и работи безупречно.Цената е крайна и е съобразена със състоянието на картата, коментарите относно нея са излишни.Изпращам с Еконт!

Supported sampling frequency
44.1/48/88.2/96kHz
Supported bit rate
16/24bit
Analog audio Inputs

MIC IN(1-8)
XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance
2.2k ohms
Nominal input level
-2dBu
Minimum input level
-58dBu
Maximum input level
+14dBu

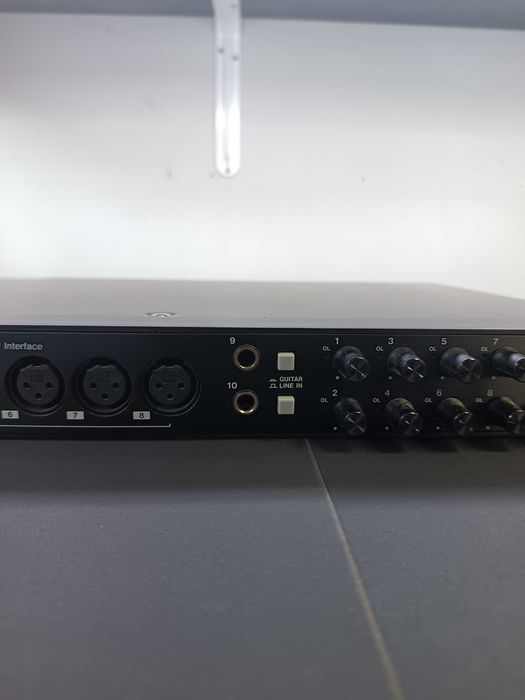

GUITAR / LINE IN(9-10)

GUITAR IN
6.3mm(1/4″) TS-jack(T:HOT, S:GND), UNBALANCED
Input impedance
700k ohms
Nominal input level
-6dBV
Minimum input level
-52dBV
Maximum input level
+10dBV
LINE IN
6.3mm(1/4″) TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Input impedance
10k ohms
Nominal input level
+4dBu
Minimum input level
-42dBu
Maximum input level
+20dBu
LINE IN(11-14)
6.3mm(1/4″) TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Input impedance
10k ohms
Nominal input level
-10dBV/+4dBu
Maximum input level
+6dBV/+20dBu

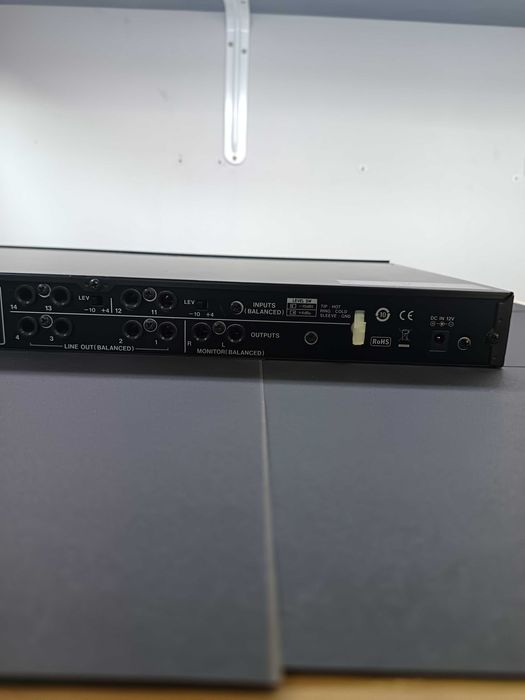

Analog audio Outputs

LINE OUT(1-4)
6.3mm(1/4″) TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Output impedance
100ohms
Nominal output level
+4dBu
Maximum output level
+24dBu
MONITOR OUT(L/R)
6.3mm(1/4″) TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Output impedance
100ohms
Nominal output level
+4dBu
Maximum output level
+24dBu

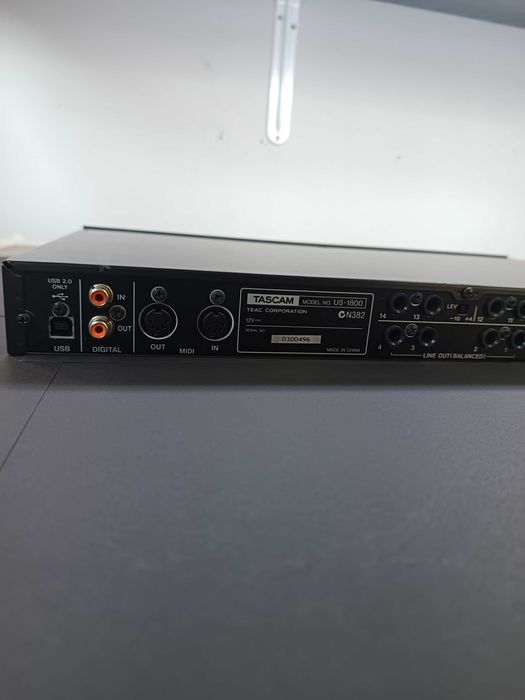

Digital audio Inputs

COAXIAL
RCA pin-jack
Format
IEC60958-3(S/PDIF)
Input impedance
75ohms
Level
0.5Vp-p / 75ohms
Digital audio Outputs

COAXIAL
RCA pin-jack
Format
IEC60958 Concumer(S/PDIF) and IEC958 Professional(AES/EBU)
*Selectable in the Control Panel betwiin
Output impedance
75ohms
Level
0.5Vp-p / 75ohms
PHONES

Connector
6.3mm(1/4″) stereo phone jack
Maximum output level
50mW + 50mW(1kHz, 1%, 32ohms load)
MIDI Input

Connector
DIN 5 pin
Format
Standard MIDI format
MIDI Output

Connector
DIN 5 pin
Format
Standard MIDI format
USB

Connector
USB B type 4pin
Format
USB2.0HIGH SPEED(480 MHz)
Power
AC100 – 240V, 50/60Hz(TASCAM PS-1225L, included)
Power consumption
7.2W
Dimensions
482.6(W)×44(H)×300.4(D)mm
Weight
3.1kg
Operating temperature
5-35˚C

Audio performance

Frequency response
20Hz to 20kHz, +/-1dB(44.1/48kHz, MIC IN – LINE OUT, GAIN knob set to minimum, JEITA)
20Hz to 40kHz, +1/-3dB(88.2/96kHz, MIC IN – LINE OUT, GAIN knob set to minimum, JEITA)
S/N ratio
96dB or more(44.1kHz, MIC IN – LINE OUT, GAIN knob set to minimum, JEITA)
THD
0.01% or less(MIC IN – LINE OUT, GAIN knob set to minimum, JEITA)
