STV-4102K (Primary)

SEV-4102K (Link)

The Server Technology Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides accurate
measurement of current (billing-grade), voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The Switched “Primary” PDU can be connected to a Switched “Link” PDU to extend the network access to the redundant or secondary power feed

Key Features

Network Monitoring
Gain access to valuable data through connections including
SSH, Telnet, SNMP, SMTP, Syslog, LDAP(S),
RS-232 serial, and more

Temperature/Humidity Monitoring
Primary and Expansion (select products) units each support
two external 10' (3m) T/H probes. Receive SNMP-based alerts
and email notifications.

Per-Inlet Power Sensing
PIPS (Per Inlet Power Sensing) Monitors Current Load (A),
Voltage (V), Power (W), Apparent Power (VA), Crest Factor,
Power Factor, & Energy per inlet.

Outlet Control
On Switched PDUs, cycle power to individual outlets or groups
of outlets to reboot servers, or power off unused receptacles.

Power Pivot™
The 90-degree rotatable power cord allows for standardized
deployment at any facility no matter where power must be
routed.

Color-Coded Options
Select from six colors to designate PDU circuits in the data
center — black, white, red, green, blue, and yellow.

Hot-Swap Network Card
Network access is ensured when power is lost to the Primary
unit with backup power provided by the Linked unit.

Auto-Flip Current Display
Easy-to-read LEDs display current per phase to help prevent
overloads and simplify three-phase load balancing in high
density cabinets.

Branch Circuit Protection
This PDU meets the UL and IEC 62368-1 requirement for
branch circuit protection through UL 489 rated magnetic
hydraulic circuit breakers or UL 248 fuses.

High Temperature Rating
This product has been tested and approved for safe and
reliable operation in 60 °C data center environments.

Flexible Mounting
Includes standard button mounts along with provisions for
custom mounting brackets

Branch Circuit Protection
UL 489, CSA C22.2 No. 5 & IEC/EN 60947-2 Compliant 2-pole, 20A trip circuit breakers, two (2) branch, rating: ≤ 16A, 5 kAIC Interrupt Rating

INPUTS

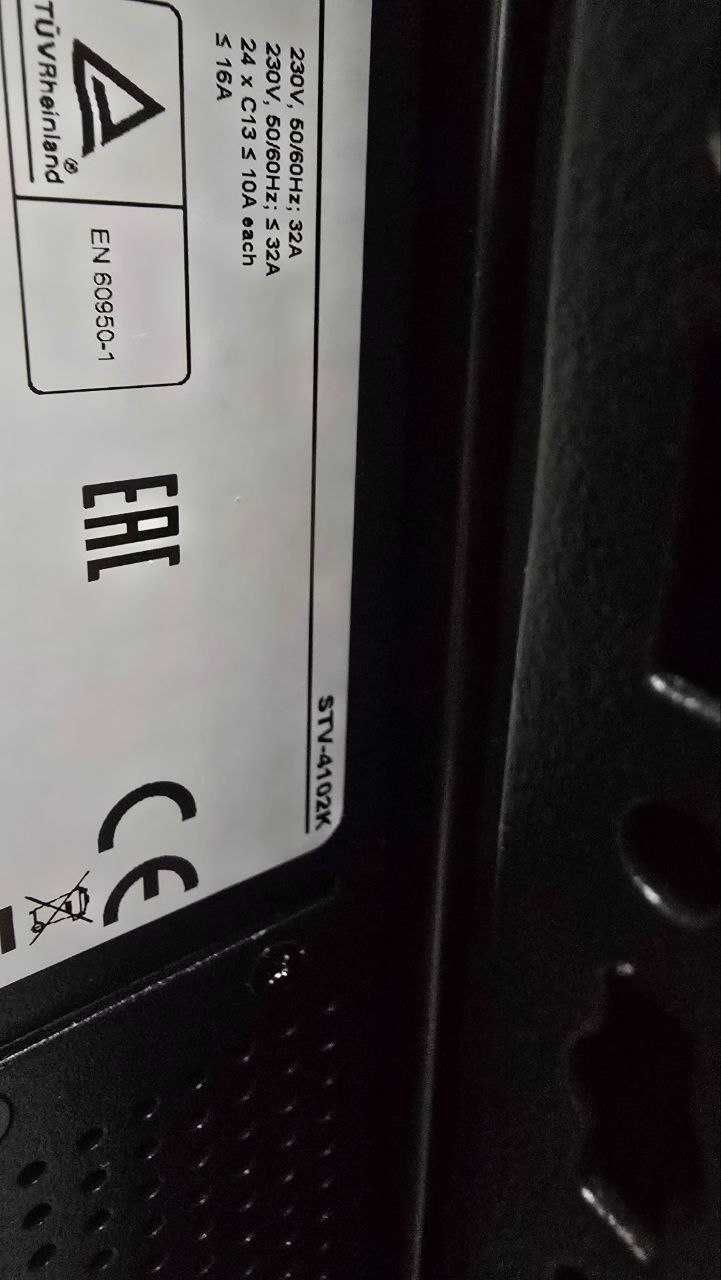

Input Voltage (V): 230V
Frequency: 50/60 Hz
Input Plug: IEC 230V/32A 2P+PE 6Hr
Input Current (A): 32
Input Current Rated (A): 32
Input Power Capacity (kW): 7.3

OUTPUTS

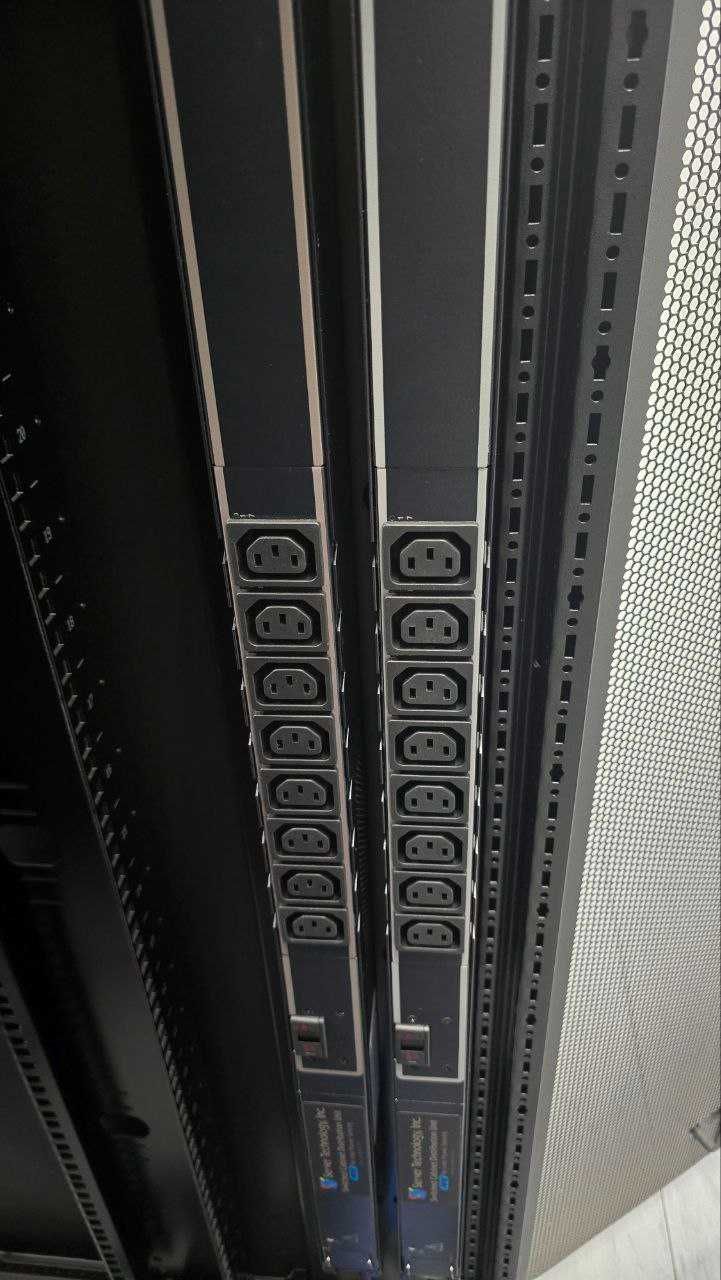

Connector: (24) x IEC 60320/C13
Rating: Global Rating: ≤ 10A 230V L-N

Physical
Dimensions: 69.0in tall x 1.75in wide x 2.25in deep [1753mm x 45mm x 58mm]

Environmental
Operating Environment: 32°F to 140°F / 0°C to 60°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation

Storage Environment: -22°F to 176°F / -30°C to 80°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: 10W for all configurations

Communications & Security
10/100 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector)
Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU}
Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6,
LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP

Certifications

Global:
Safety
EN IEC 62368-1 (TUVR certified, T-mark)
IEC 62368-1 incl. regional, national and harmonized differences (IECEE CB scheme) EMC
EMC
EN 55032 / CISPR 32
EN 55035 / CISPR 35
EN 61000-3-2 / IEC 61000-3-2
EN 61000-3-3 / IEC 61000-3-3
CE Mark
2011/65/EU (RoHS Directive)
2014/35/EU (Low Voltage Directive)
2014/30/EU (EMC Directive)
UKCA Mark
RoHS
Electrical Equipment (Safety)
Electromagnetic Compatibility

Measurement Accuracy

Input Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (0.3 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 1% at 0.01 amp resolution (above 0.25 amp)
Voltage = ± 1% at 0.1 volt resolution (nominal ± 10%)
Active Power = ± 1% at 1 watt resolution
Apparent Power = ± 1% at 1 volt-amp resolution
Power Factor = ± 3% at 0.01 resolution
Crest Factor = ± 10% at 0.1 resolution
Energy = ± 1% at 0.1 kilowatt-hour resolution

Състояние: ново
Количество: 5 комлекта
Цена: 490 ЕВРО/комплект

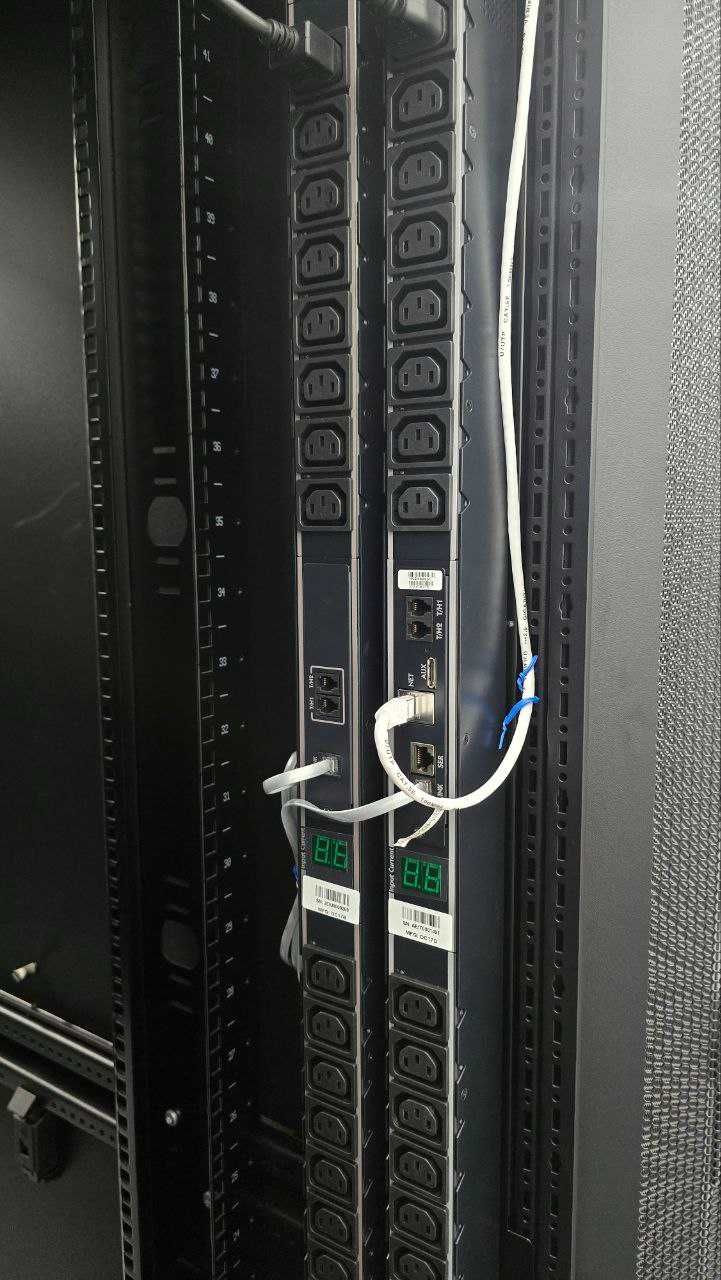

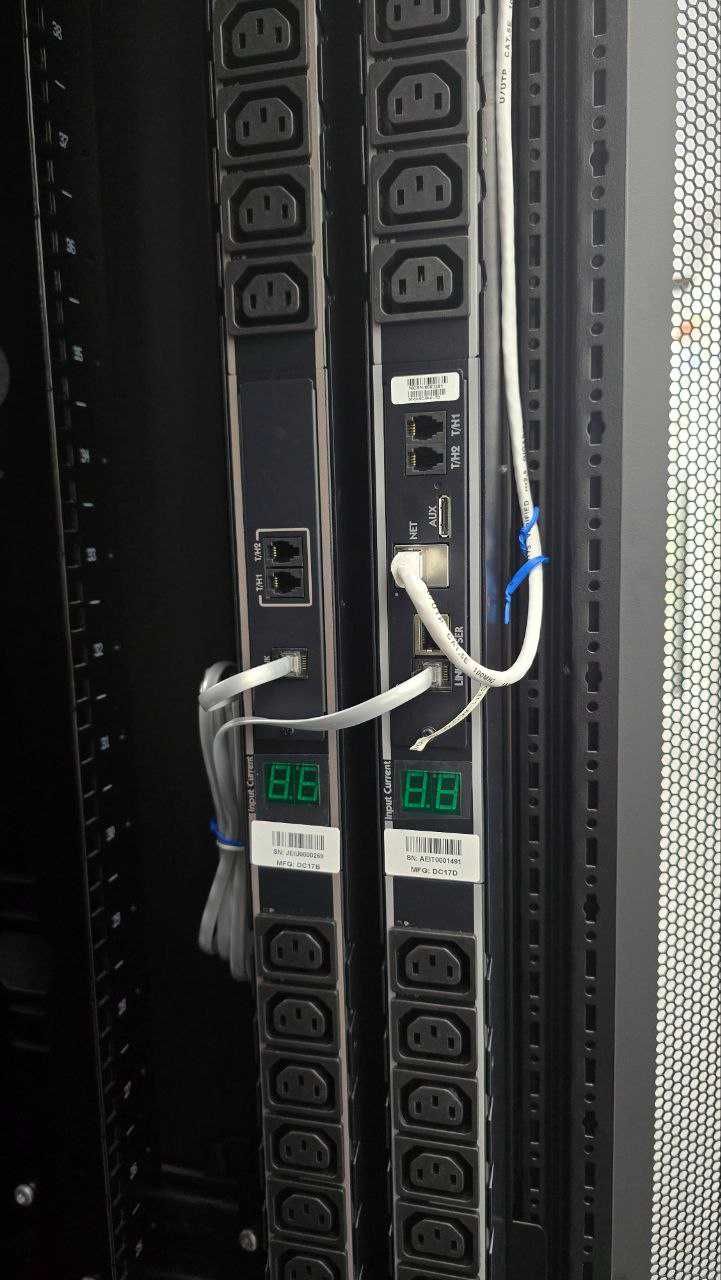

PDU-та са комплект 2 броя. STV-4102K (Primary) и SEV-4102K (Link). Общо 48xC13.
