Доставката се поема от: купувача, продавача
Състояние: ново
Описание
Main Technical Specifications
Specification
Technical Data
CNC Control System
OSAI
Linear Axes
X – Y – V – Z
Rotary Axes
B – C
Single Table Working Area
1500 × 1200 × 600 mm
Alternative Single Table Working Area
1500 × 1500 × 800 mm
Dual Table Working Area
3100 × 1200 × 600 mm
Alternative Dual Table Working Area
3100 × 1500 × 800 mm
X-Axis Travel
1700 mm
Y-Axis Travel
4000 mm
V-Axis Travel
4000 mm
Z-Axis Travel
850 mm
Optional X-Axis Travel
2100 mm
Optional Z-Axis Travel
1030 mm
X-Axis Feed Rate
40 m/min
Y-Axis Feed Rate
30 m/min
V-Axis Feed Rate
30 m/min
Z-Axis Feed Rate
40 m/min
C-Axis Rotation
400°
B-Axis Rotation
Infinite
Spindle Motor
ELTE
Spindle Power
7.5 kW
Maximum Spindle Speed
18,000 rpm
Vacuum Pump
BECKER
Vacuum Pump Capacity
4.8 kW / 140 m³
CAD/CAM Software
ALPHACAM
Installation Dimensions
5550 × 2250 × 2540 mm
Alternative Installation Dimensions
5550 × 2550 × 2940 mm
Specification
Technical Data
CNC Control System
OSAI
Linear Axes
X – Y – V – Z
Rotary Axes
B – C
Single Table Working Area
1500 × 1200 × 600 mm
Alternative Single Table Working Area
1500 × 1500 × 800 mm
Dual Table Working Area
3100 × 1200 × 600 mm
Alternative Dual Table Working Area
3100 × 1500 × 800 mm
X-Axis Travel
1700 mm
Y-Axis Travel
4000 mm
V-Axis Travel
4000 mm
Z-Axis Travel
850 mm
Optional X-Axis Travel
2100 mm
Optional Z-Axis Travel
1030 mm
X-Axis Feed Rate
40 m/min
Y-Axis Feed Rate
30 m/min
V-Axis Feed Rate
30 m/min
Z-Axis Feed Rate
40 m/min
C-Axis Rotation
400°
B-Axis Rotation
Infinite
Spindle Motor
ELTE
Spindle Power
7.5 kW
Maximum Spindle Speed
18,000 rpm
Vacuum Pump
BECKER
Vacuum Pump Capacity
4.8 kW / 140 m³
CAD/CAM Software
ALPHACAM
Installation Dimensions
5550 × 2250 × 2540 mm
Alternative Installation Dimensions
5550 × 2550 × 2940 mm
ID: 148896681
Контакт с продавача
xxx xxx xxx
Добавена 22 август 2026 г.

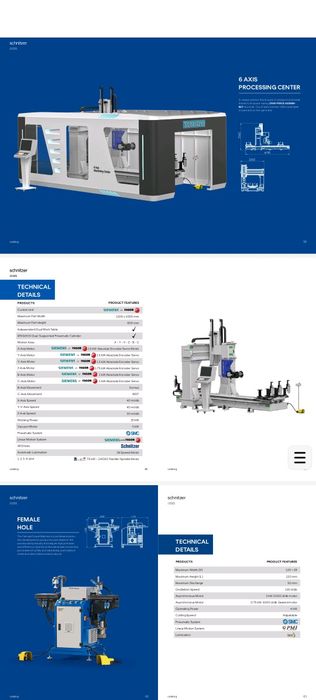

SCHNITZER 6 AXES Machinery Center
94000 €
