визуални забележки, работи перфектно, НЕоригинално захранване

ЗАБЕЛЕЖКА: захранването е съвместимо от лаптоп.

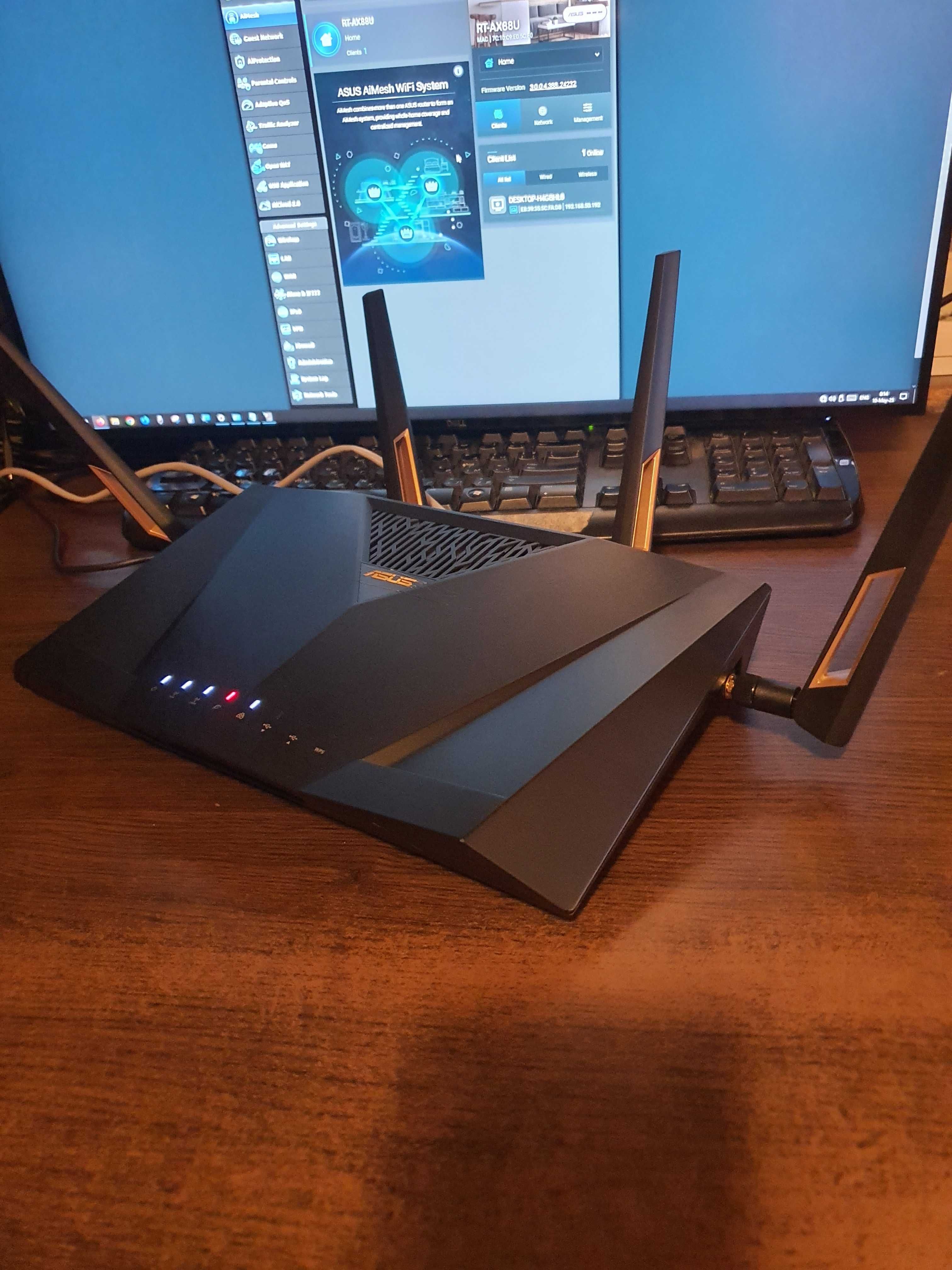

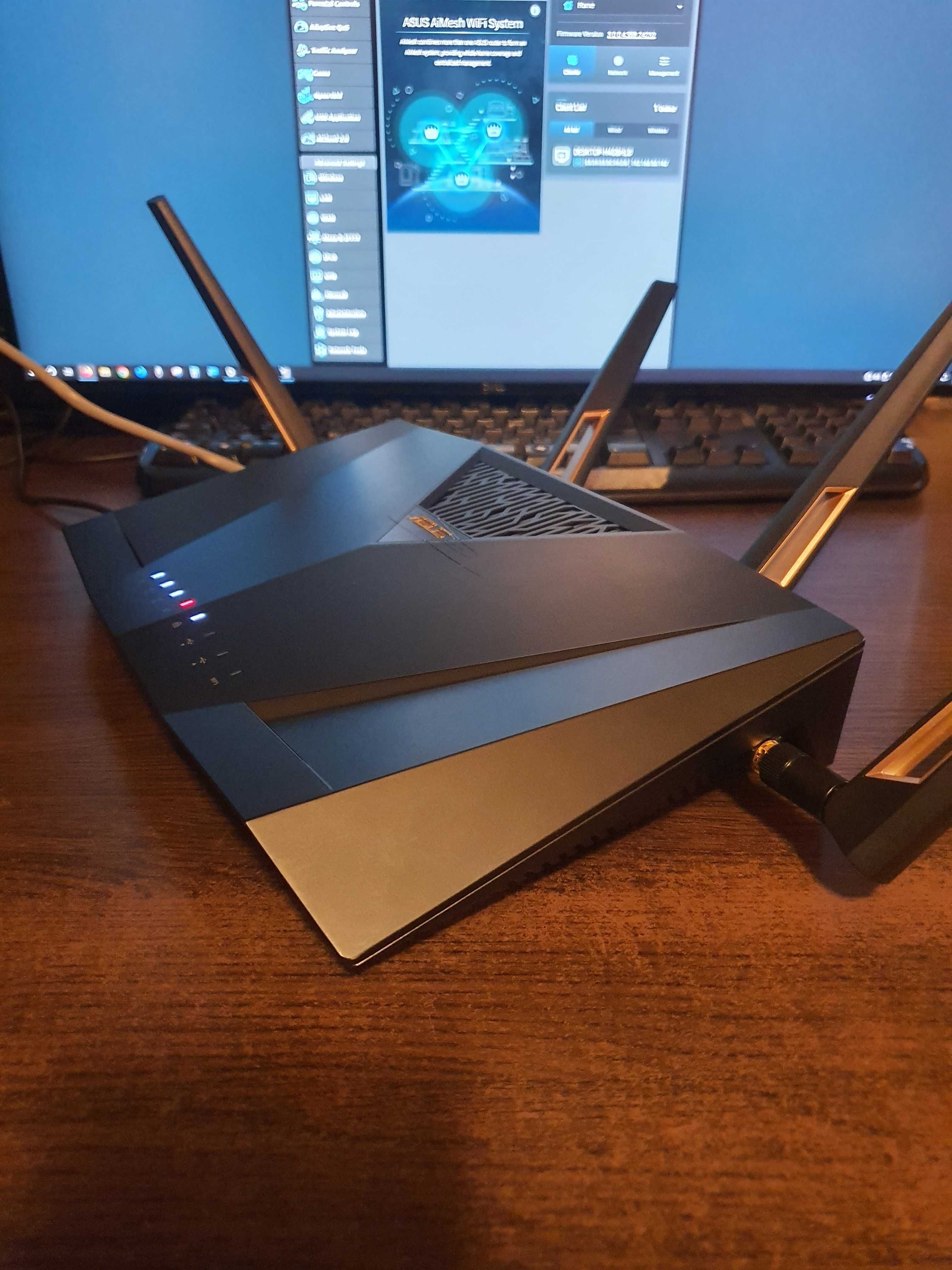

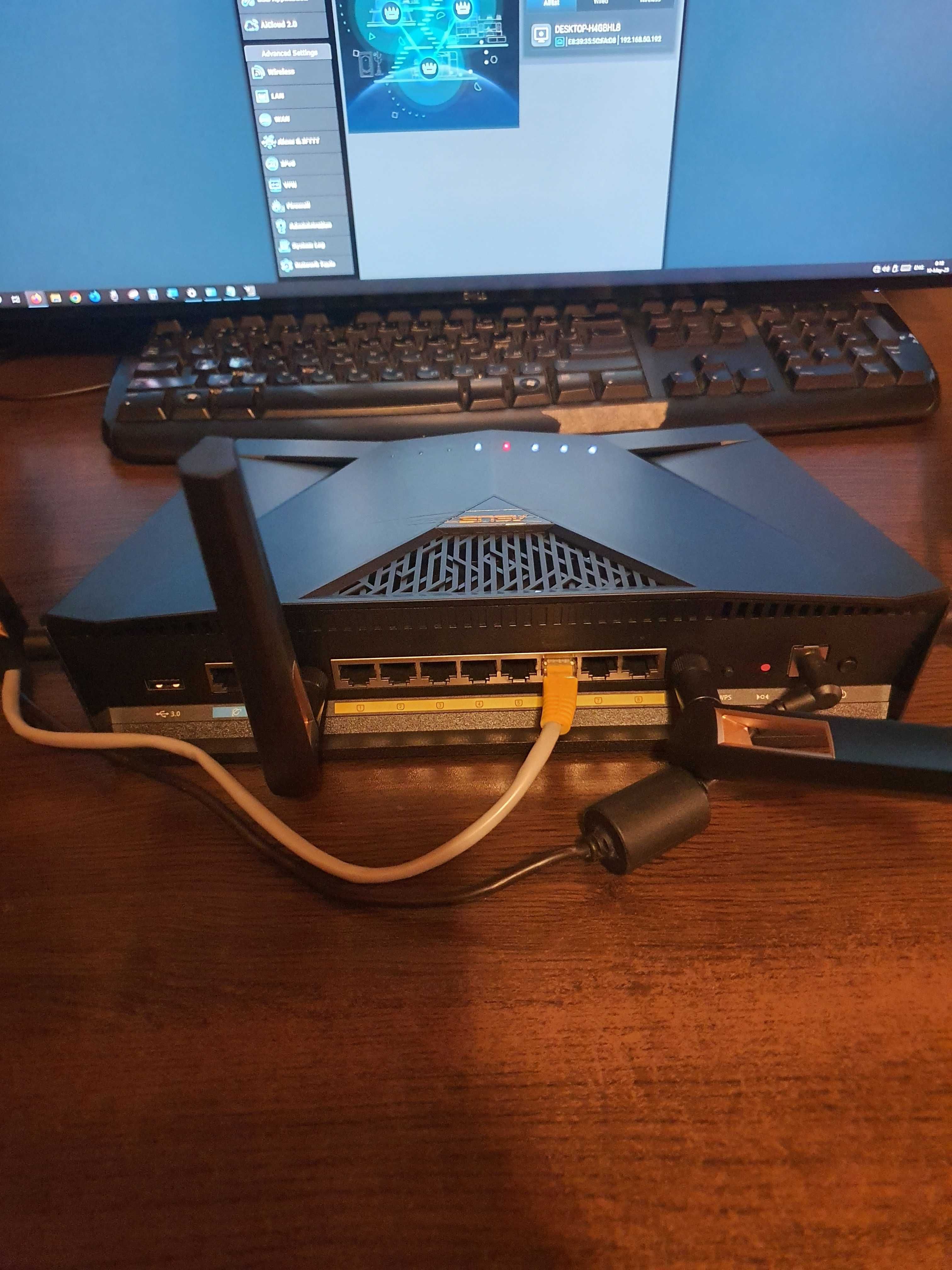

рутер Asus RT-AX88U (AX6000) WiFi 6, AiMesh, Adaptive QoS, 160 MHz канали, LAN Link Aggregation, Dual WAN aggregation, USB 3.1 Gen 1 x 2, Mobile Game Mode, Game Boost / Acceleration,
MU-MIMO, OFDMA (Orthogonal Frequency Division Multiple Access)

Model
RT-AX88U

Network Standard
IPv6
IPv4
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Product Segment
AX6000 ultimate AX performance : 1148+4804 Mbps

WiFi Data Rate
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 5 (802.11ac) : up to 3466 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 1000 Mbps
WiFi 4 (802.11n) : up to 600 Mbps
802.11g : up to 54 Mbps
802.11b : up to 11 Mbps
802.11a : up to 54 Mbps

Antenna
External antenna x 4

Transmit / Receive
5GHz 4x4
2.4GHz 4x4

Processor
1.8 GHz quad-core processor

Memory
256 MB Flash, 1 GB RAM

Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access),
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80/160 MHz bandwidth,

Operating Frequency
2.4G Hz / 5 GHz

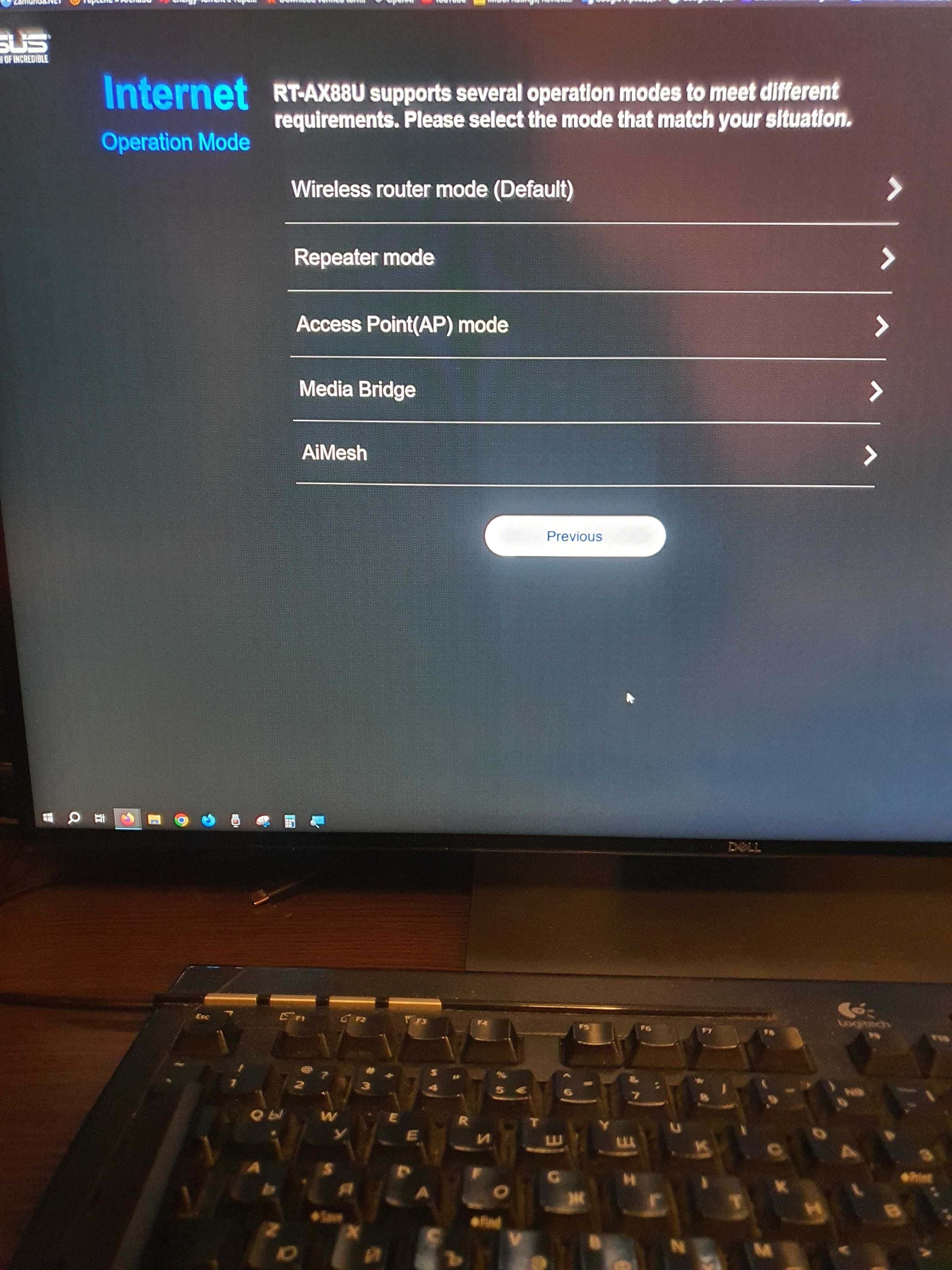

Operating Mode
Accesspoint, AiMeshnode, Mediabridge, Repeater, Router

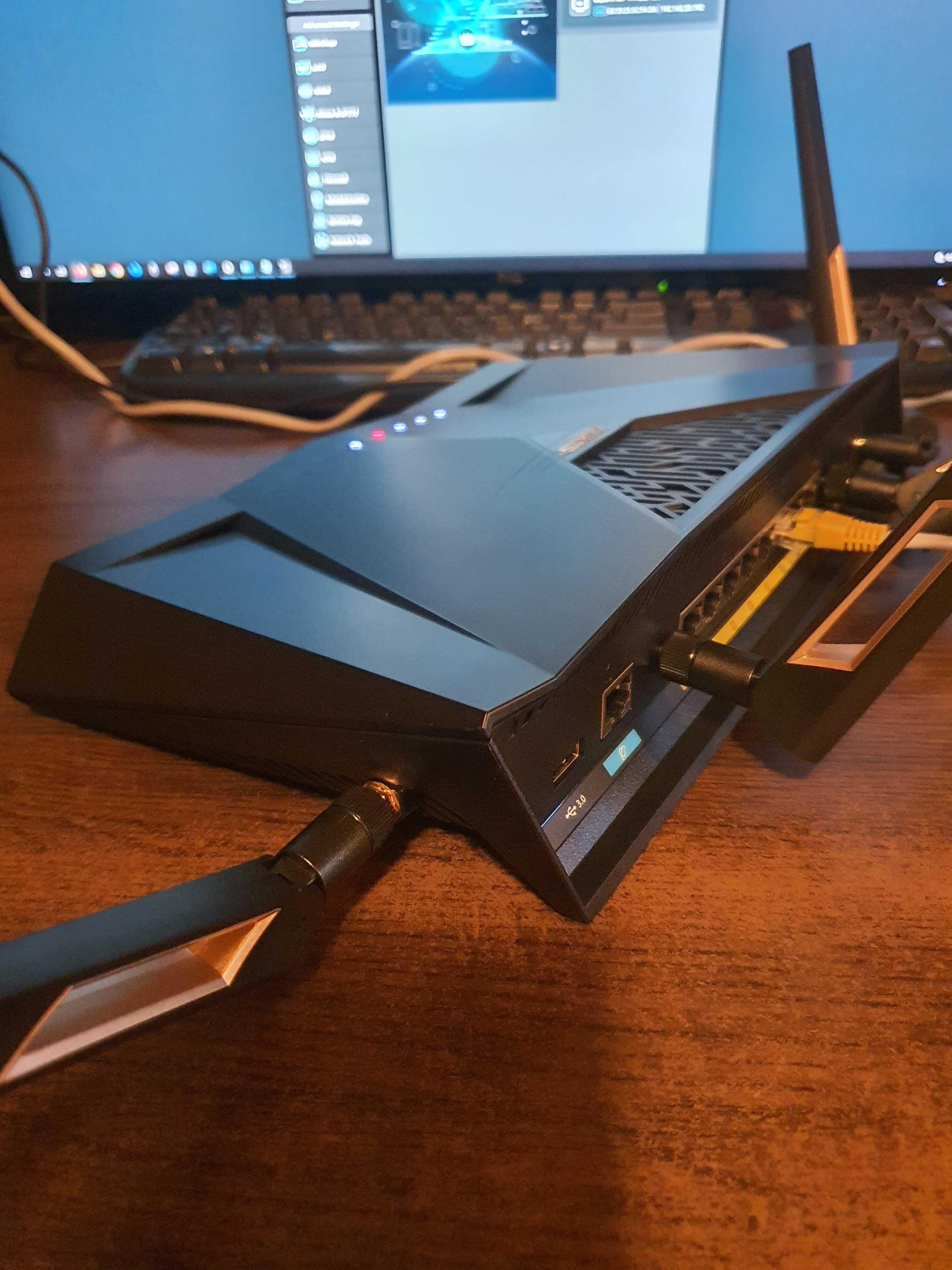

I/O Ports
RJ45 for Gigabits BaseT for WAN x 1,
RJ45 for Gigabits BaseT for LAN x 8,
USB 3.1 Gen 1 x 2

Buttons
WPS Button,
Reset Button,
Power Button,
Wireless on/off Button,
LED on/off Button

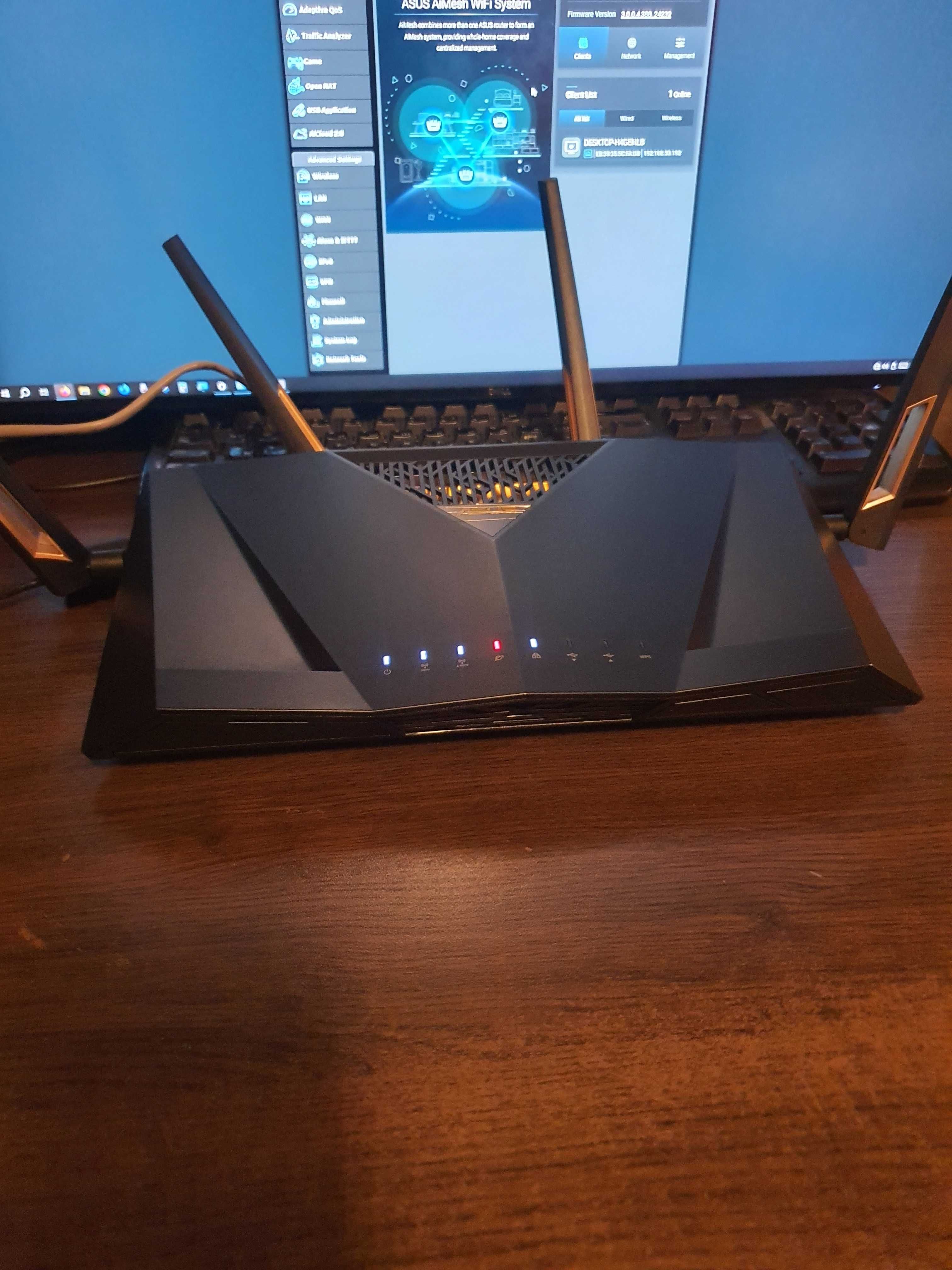

LED Indicator
Power x 1
Wi-Fi x 2
WAN x 1
LAN x 1
USB x 2
WPS x 1

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current

Product Weight (g)
1010 g

Product Dimensions
300 x 188 x 60.5 ~ mm (WxDxH) (Without Bezel)

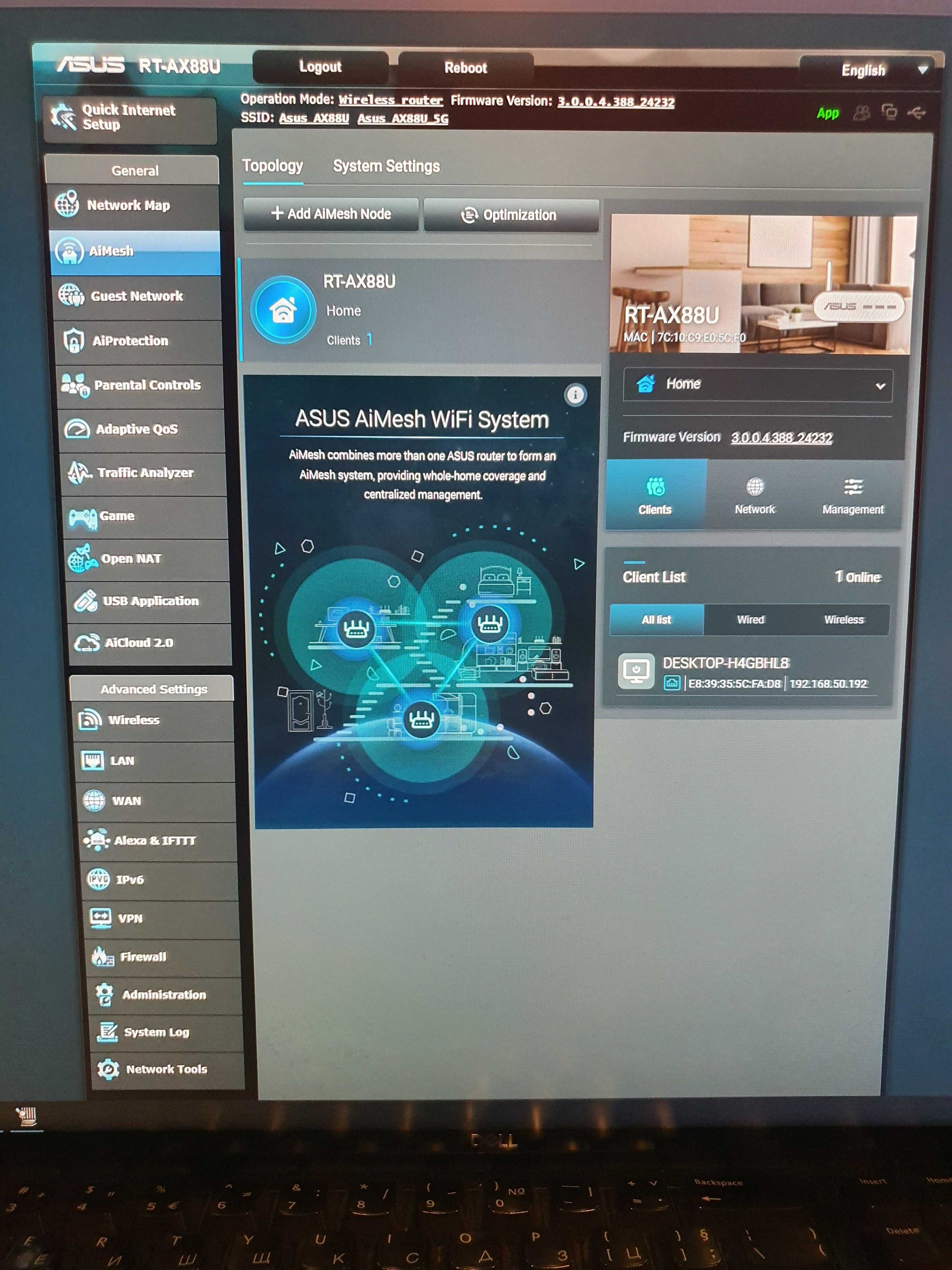

AiMesh
• AiMesh Node
• Primary AiMesh Router
AiMesh

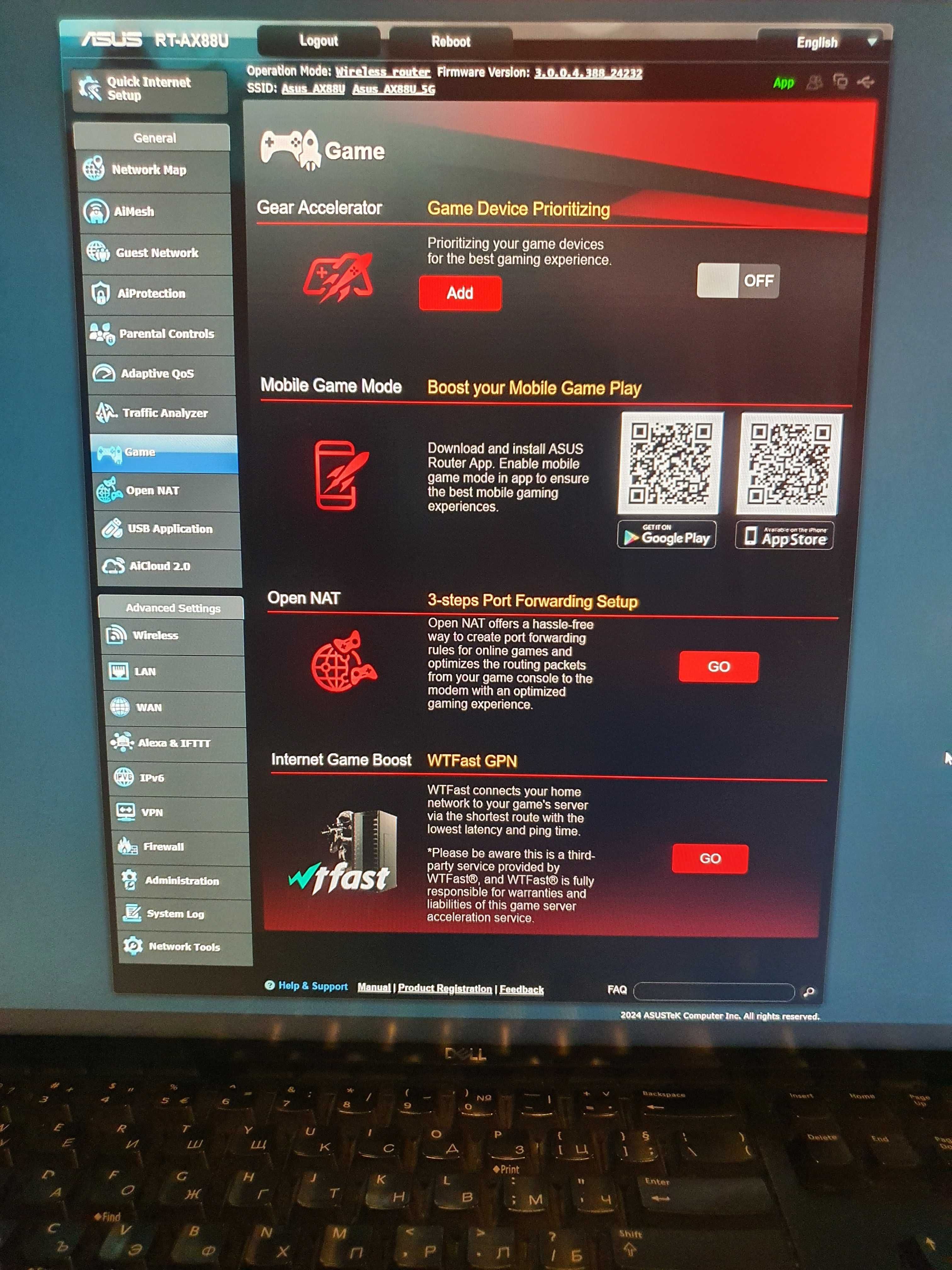

Game
WTFast
Game Boost / Acceleration

Parental Control
Safe Browsing
Customized Internet Schedule
"Allow you to block access to unwanted websites and apps."

Guest Network
Guest Network Connection Time Limit
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal

Security
DNS-over-TLS
Security Scan
SSH
Firewall
WPS
AiProtection
Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection
• Infected Device Prevention and Blocking
• Two-Way IPS
• Malicious Site Blocking
• Router Security Assessment

VPN
VPN Client WireGuard
VPN Server WireGuard
VPN Server PPTP
VPN Server Open VPN
VPN Server IPSec
VPN Client PPTP
VPN Client Open VPN
VPN Client L2TP

Traffic Control
• Website History
Traffic Analyzer
• Wireless Traffic Monitor
• Wired Traffic Monitor
• Real-time Traffic Monitor
Traffic Monitor
Traditional QoS
• Bandwidth Limiter
• Bandwidth Monitor
Adaptive QoS
-- Maximum Bandwidth Limiter Rule : 32
-- Maximum Traditional QoS Rule : 32
• Traffic Analysis Period : Daily, Weekly, Monthly

WAN
DDNS
DMZ
Port triggering
Port forwarding
3G / 4G LTE dongle
WAN Aggregation
Dual WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Maximum Port Forwarding Rule : 64
• Maximum Port Triggering Rule : 32
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN
Manually Assign IP Address
Wake on LAN (WOL)
LAN Link Aggregation
IPTV
IGMP Snooping
DHCP Server
• Maximum Manually Assign IP Address Rule : 64

Wireless
RADIUS Client
Explicit Beamforming
Universal Beamforming
Airtime Fairness
Wireless Scheduler
WiFi MAC Address Filter
UTF-8 SSID
• Maximum MAC Filters : 64

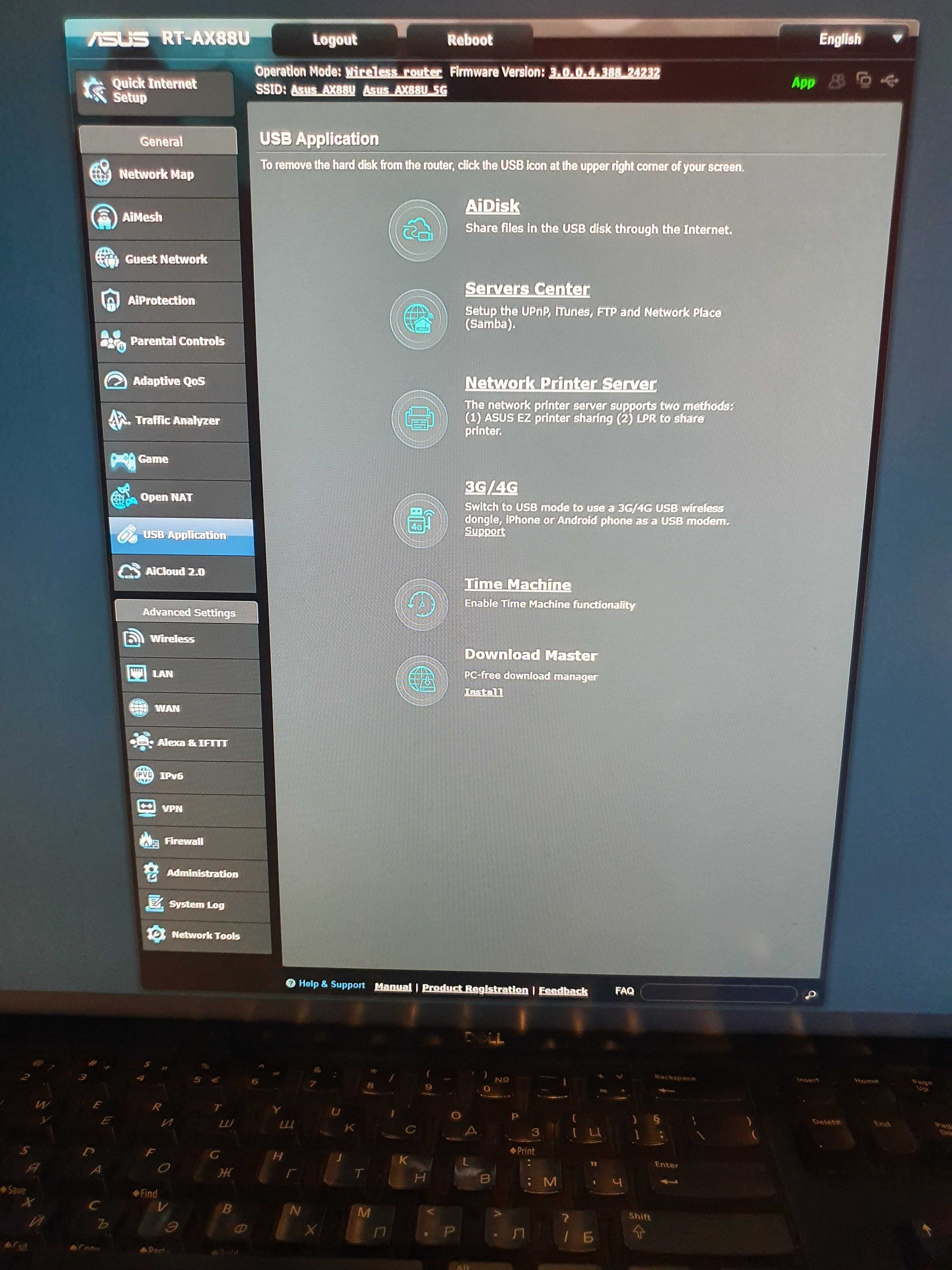

USB application
Samba Server
Shared Folder Privileges
FTP Server
Time Machine
Media Server
AiDisk
Download Master
AiCloud
Safely Remove Disk
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

Administration
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
