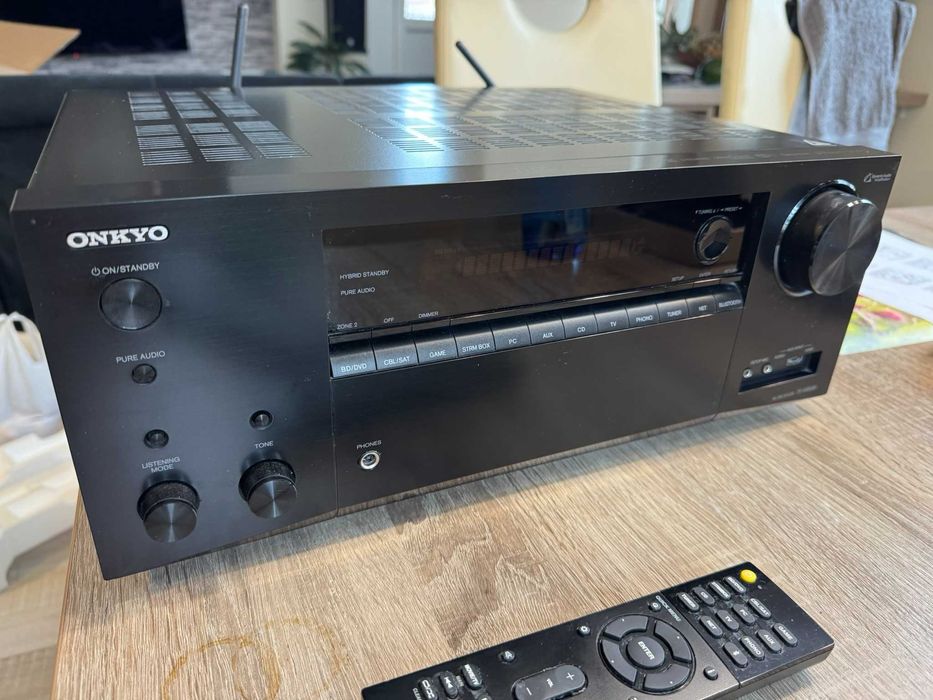

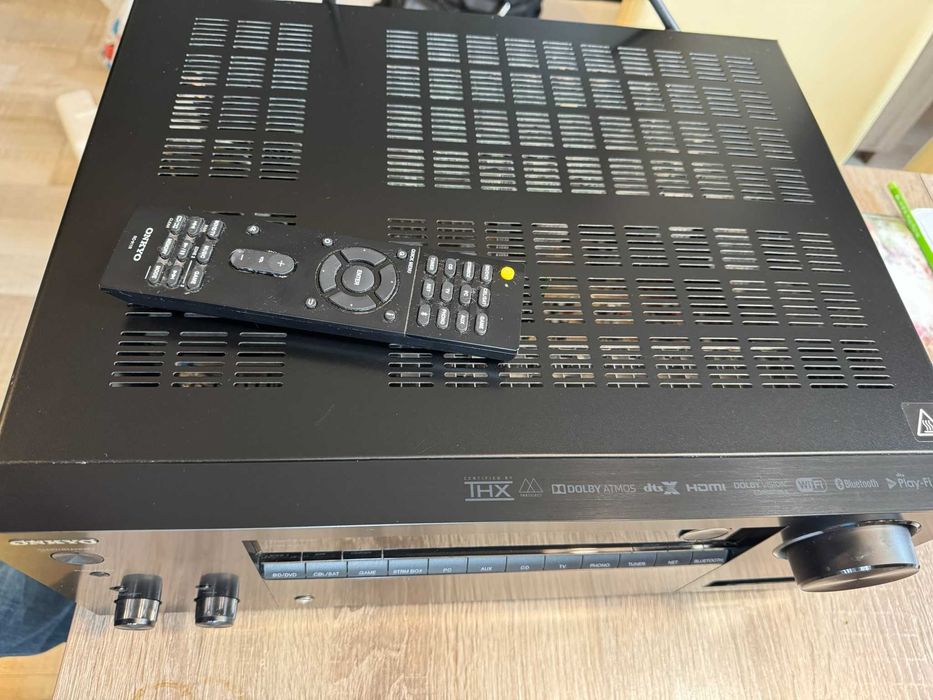

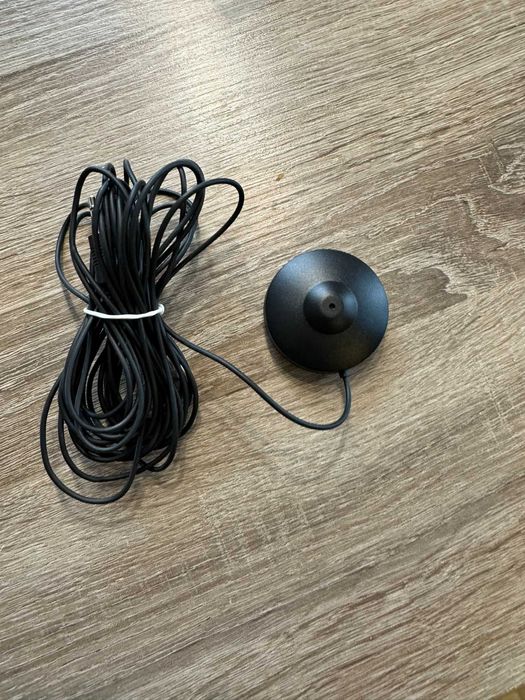

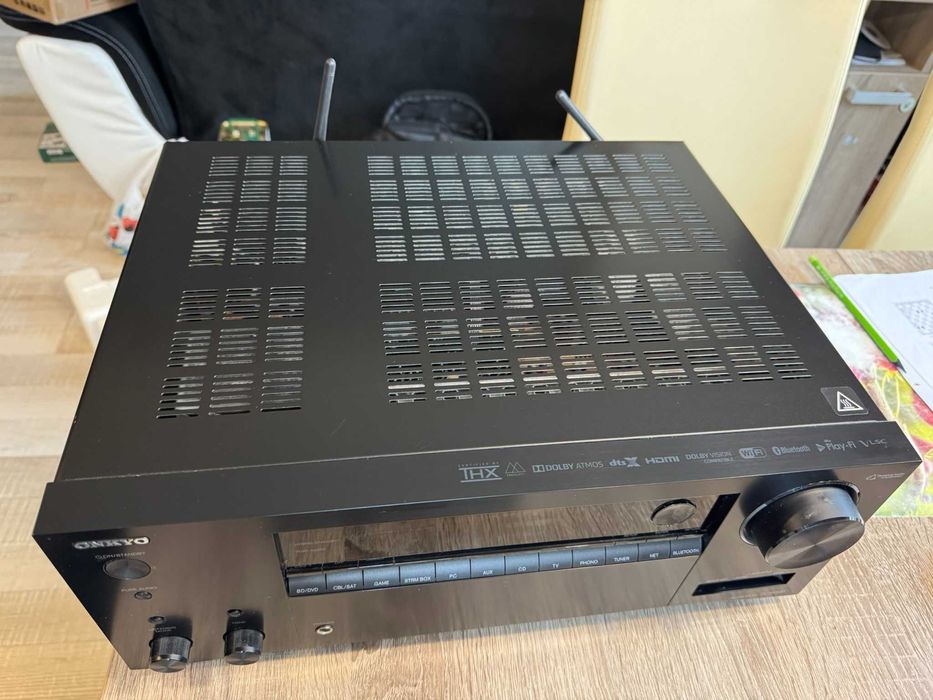

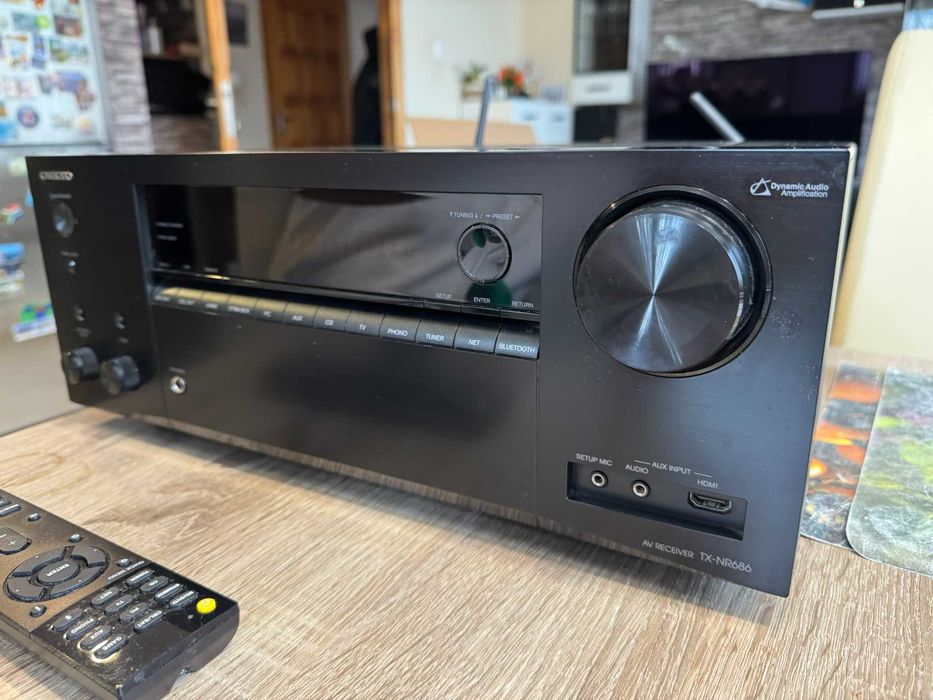

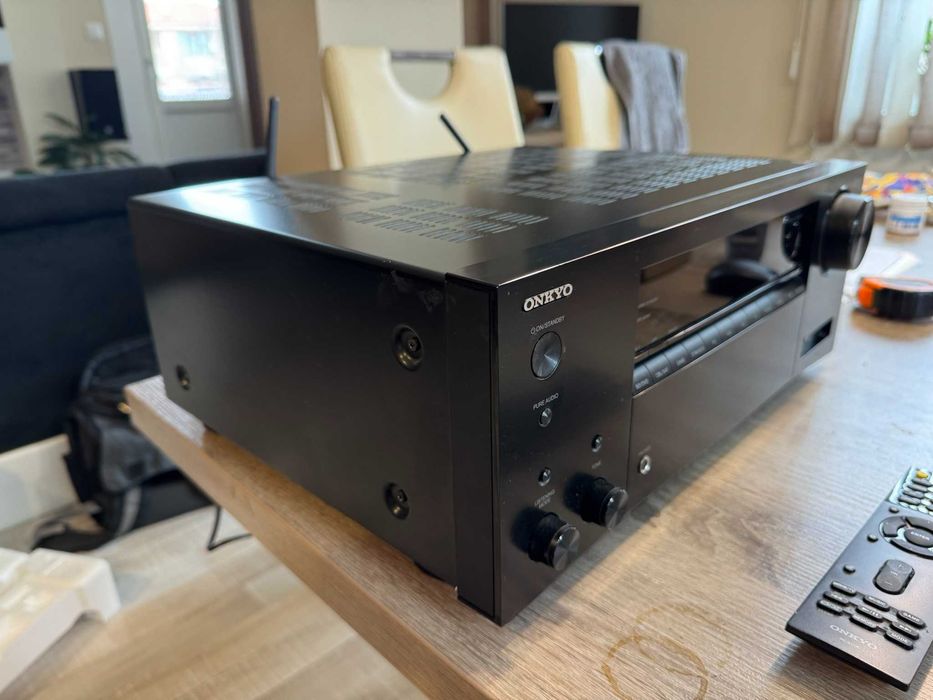

Ресийвъра е в перфектно визуално и техническо състояние. Няма точица по него и никога не е отварян/ремонтиран. Купуван е лично от мен нов от Германия. Комплект с оригинално дистанционно и калибриращ микрофон. Кашонът за момента липсва, ако го намеря ще ъпдейтна. Мощен и тежък ресийвър, който с подходящи тонколони доставя истинско удоволствие, както за слушане на музика, така и за гледане на филми.
Ето едно ревю, което е достатъчно красноречиво за качествата му:
www.crutchfield.com/S-NmZ6qjyGcQ8/p_580NR686/Onkyo-TX-NR686.html

SPECIFICATIONS

• THX® Certified Select™ theater reference sound
• Supports 5.2.2-channel Dolby Atmos® and
DTS:X® playback
• 210 W per channel
• HDMI® 7 in (1 front*1) / Main Out, and Sub Out*2
supporting 4K/60 Hz, HDR10, HLG, Dolby Vision™,
BT.2020, and HDCP 2.2 pass-through
• Dynamic Audio Amplification with 4-ohm
speaker-driving capability
• 384 kHz/32-bit DAC and VLSC™ filtering for
superior clarity
• Supports Chromecast built-in and works with the
Google Assistant
• Dual-band Wi-Fi®, DTS Play-Fi®, AirPlay, Amazon Music,
Spotify®, TIDAL, Deezer, Pandora®, TuneIn*3
• FlareConnect™ wireless multi-room audio

ADVANCED FEATURES
• HDMI terminals supporting HDR10, HLG, Dolby Vision™, BT.2020,
4K/60 Hz pass-through, and HDCP 2.2
• 5.2.2-channel Dolby Atmos playback and Dolby Surround upmixing
for audio formats including DTS® codecs
• DTS:X playback and DTS Neural:X® 3D upmixing supporting
Dolby® formats
• AccuEQ Room Acoustic Calibration with AccuReflex phase
alignment for Dolby Atmos-enabled speakers
• Supports Onkyo Controller app*4 for intuitive multi-room operation
• Stable 5 GHz/2.4 GHz Wi-Fi connectivity
• Chromecast built-in wireless audio streaming technology that works
with the Google Assistant
• DTS Play-Fi multi-room audio with Onkyo Music Control App*4
• AirPlay audio streaming from iTunes and iPad, iPhone,
and iPod touch
• Hi-Res Audio playback including DSD 5.6 MHz/2.8 MHz*5,
192 kHz/24-bit FLAC*6, WAV (RIFF)*6, AIFF, ALAC*6, and
Dolby® TrueHD*7
• Supports Amazon Music, Spotify, TIDAL, Pandora, and Deezer music
streaming services and TuneIn internet radio
• FlareConnect multi-room audio distribution to compatible
components
• Powered Zone 2 speaker outputs and Zone 2 line-output with
DAC supporting digital*8 and analog audio playback
• Bluetooth® wireless technology for mobiles, laptops, and PCs
(Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)
• Advanced Music Optimizer improves compressed digital audio
quality, including Bluetooth audio
• Support for front L/R bi-amping in a 5.2-channel speaker layout
• 480i de-interlacing (480i to 480p) via HDMI for legacy video formats
AMPLIFIER FEATURES
• 210 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven); 100 W/Ch
(8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC)
• Dynamic Audio Amplification delivers thrilling multichannel and
stereo performance
• High-current power drives large speakers with 4-ohm resistance
• H.C.P.S. (High Current Power Supply) customized transformer
• VLSC (Vector Linear Shaping Circuitry) high-frequency noise removal
(for front L/R channels)
• Non-phase-shift amplification circuitry for clarity and detail
• Discrete output stage circuitry for low distortion
PROCESSING FEATURES
• Dolby Atmos and DTS:X reproduction (supports 5.2.2 channels)
• HDMI support for 4K/60 Hz, HDR10, HLG, Dolby Vision, 3D,
Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby
Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio™, DSD,
DVD-Audio, Super Audio CD (SACD), multichannel PCM, and CEC
• High-grade AKM (AK4458) 384 kHz/32-bit multichannel DAC
• PLL (Phase Locked Loop) jitter-cleaning technology for S/PDIF audio
• 32-bit Digital Signal Processing (DSP)
• Listening modes for gaming (Rock, Sports, Action, and RPG)
• Theater-Dimensional virtual surround function
• Direct Mode for audio reproduction close to original source quality
• Tone controls (bass/treble) for front L/R channels

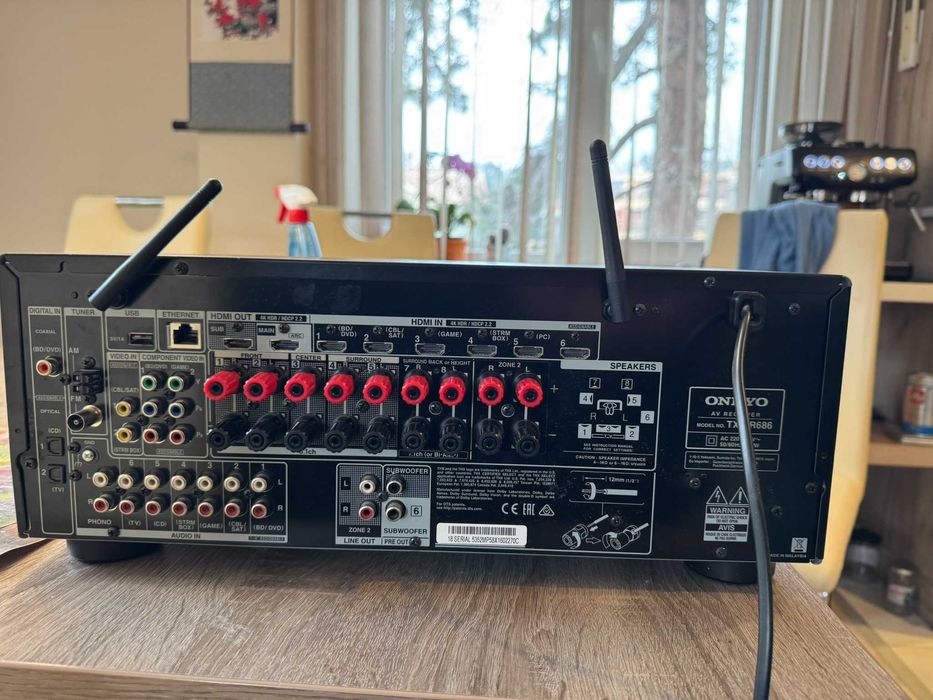

CONNECTION FEATURES
• 7 HDMI inputs (1 front) and 2 outputs (1 Main Out, 1 Sub Out)
• Powered USB terminal (5 V, 1 A) for audio playback
• 2 composite video inputs and 2 component video inputs
• 3 digital audio inputs (2 optical and 1 coaxial)
• 6 analog audio inputs, 1 stereo 1/8˝ (3.5 mm) analog input (front)
• Phono input (MM) and equalizer for turntable connection
• 2 subwoofer pre-outs
• 1/4˝ (6.35 mm) headphone jack (front)
• Speaker setup mic input (front)
• Banana-plug-compatible speaker posts
OTHER FEATURES
• Crossover adjustment for each channel
(40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)

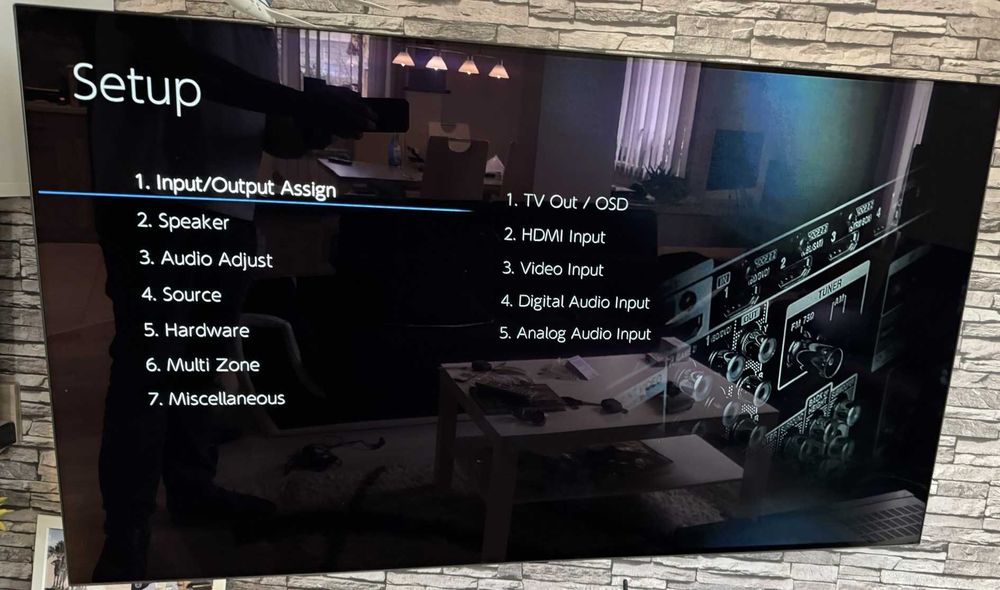

• Graphical User Interface with overlaid On-Screen Display via HDMI
• Quick Setup Guide via GUI and easy connection diagram on
rear panel
• Large input selector buttons
• Economical HDMI pass-through and Network Standby functions
• IP control support for home automation systems
• 3-mode display dimmer (normal/dim/dimmer)
• 40 FM/AM random presets
• Simple remote control

Amplifier Section
Power Output
All Channels 210 W/Ch (6 Ohms, 1 kHz, 10% THD,
1 Channel Driven)
100 W/Ch (8 Ohms, 20 Hz–20 kHz,
0.08% THD, 2 Channels Driven, FTC)
Dynamic Power 240 W (3 Ohms, Front)
210 W (4 Ohms, Front)
120 W (8 Ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, Half Power)
Input Sensitivity and Impedance
200 mV/47 k-Ohms (Line)
3.5 mV/47 k-Ohms (Phono)
Rated RCA Output Level and Impedance
1 V/470 Ohms (Subwoofer Pre Out)
200 mV/2.3 k-Ohms (Zone Line Out)
Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control ±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 106 dB (Line, IHF-A)
80 dB (Phono, IHF-A)
Speaker Impedance 4 Ohms–16 Ohms
Video Section
Input Sensitivity/Output Level and Impedance
Video 1.0 Vp–p/75 Ohms (Component Y)
0.7 Vp–p/75 Ohms (Component B/R)
1.0 Vp–p/75 Ohms (Composite)
Tuner Section
Tuning Frequency Range
FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM Preset Memory 40 Stations
General
Power Supply AC 120 V~, 60 Hz
Power Consumption 580 W
No-Sound Power Consumption
60 W
Standby Power Consumption
0.15 W
Dimensions (W x H x D) 17 1/8˝ x 6 13/16˝ x 14 15/16˝
(435 x 173.5 x 379.5 mm)
Weight 22.0 lbs. (10.0 kg)
