Описание
Чисто нов, с пълен комплект за калибриране. Подходящ за радио-любителска дейност и анализиране на антени.
ABS case: 58.7mm x 91.3mm x 17.1mm (excluding protrusions)
PCB: 54mm x 85.5mm x 11mm (without connectors, switches)
Measurement frequency: 10KHz -1.5GHz
RF output: 0dbm (±2dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
Port SWR: 1.1
Display: 2.8 inch TFT (320 x240)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 120mA, built-in 650mAh battery, maximum charging current 300mA
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:2.5ppm
Frequency Stability:0.5ppm
ABS case: 58.7mm x 91.3mm x 17.1mm (excluding protrusions)
PCB: 54mm x 85.5mm x 11mm (without connectors, switches)
Measurement frequency: 10KHz -1.5GHz
RF output: 0dbm (±2dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
Port SWR: 1.1
Display: 2.8 inch TFT (320 x240)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 120mA, built-in 650mAh battery, maximum charging current 300mA
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:2.5ppm
Frequency Stability:0.5ppm
ID: 140245429
Контакт с продавача
xxx xxx xxx
Добавена 23 май 2025 г.

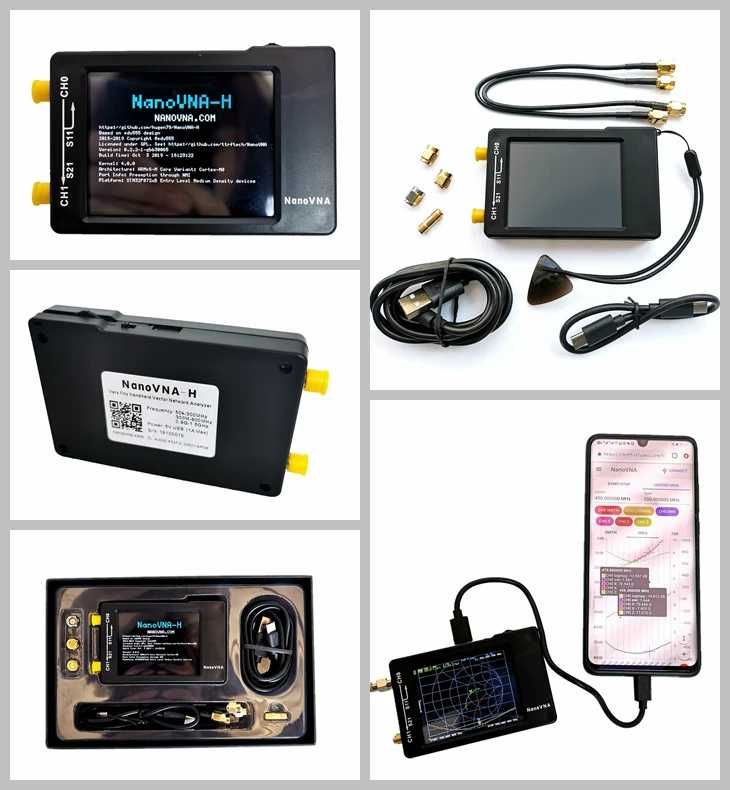

NanoVNA-H 2.8" - Векторен Мрежов Анализатор от hugen79
135 лв.
