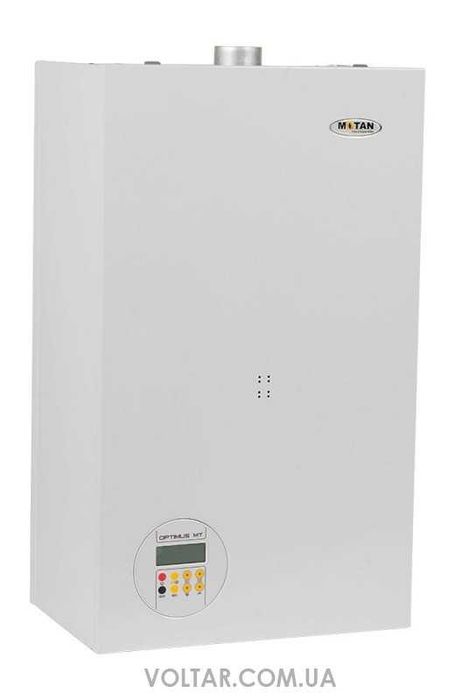

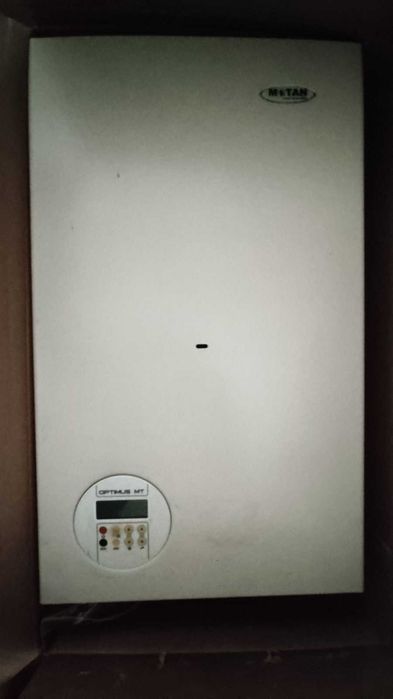

Мощен висококачествен стенен MOTAN Optimus MT, 24kW

Моля цената да не се коментира, събраните средства се ползват за онкологичното лечение на детето ни. Без бартер. Моля, разгледайте и другите ни обяви.

В прекрасно визуално и техническо състояние работещ, редовно обслужван!

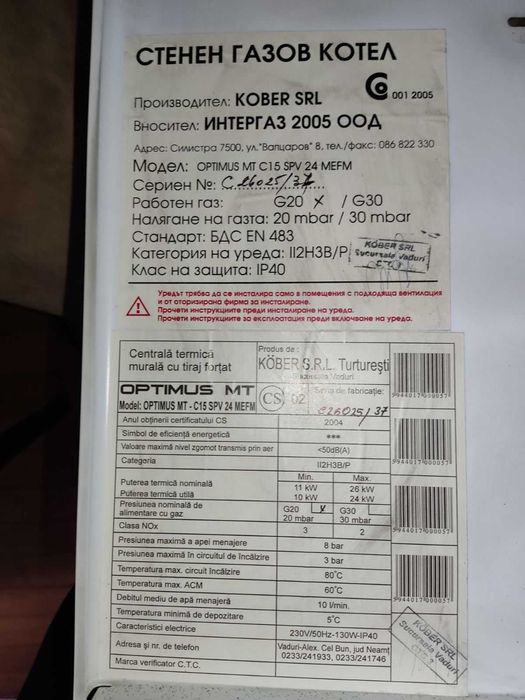

Manufacturer: Motan бойлер
Model: Optimus MT 24 kW
Central heating type: Mixed gas
Central with condensation: Not
Power: 24 kW
Maximum water temperature: 80 °C
Size: W 415 mm / H 700 mm / D 277 mm

Description:

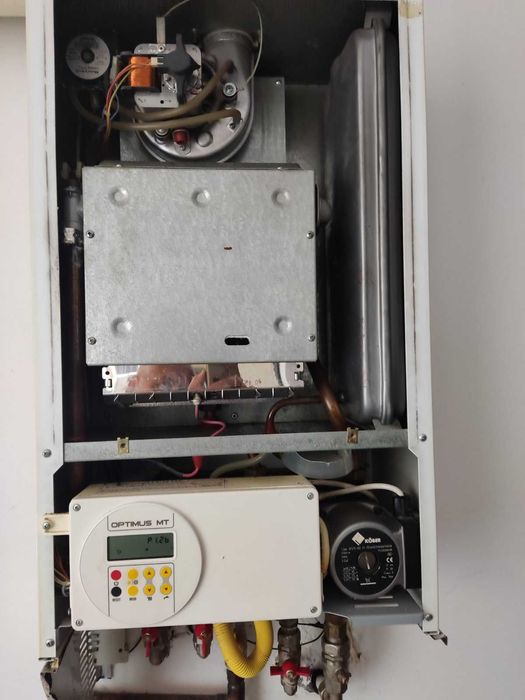

The wall-mounted thermal power plant is a device that consumes gaseous fuel, which has the role of transforming the energy of the gaseous fuel through combustion into thermal energy. This device operates unattended due to the protection and control systems it is equipped with. The gas enters the central unit through the gas supply circuit made up of a connection and a pressure reducer that will adjust to 20 mbar for G20-subgroups A(L) and A(H). For LPG (subgroups propane and propane-butane mixtures) the reducer will be adjusted to 37mbar. Thus it reaches the gas valve, which also has the role of modulating the gas flow at the exit to the burner. Ignition is achieved by initiating the flame by an ignition electrode, with the help of an ignition transformer. During combustion, the flame is detected by means of an ionization sensor. The forced draft variant is equipped with a fan, which has the role of exhausting the burnt gases. In the initiation phase, it has the role of evacuating a volume of air to ensure a non-explosive ignition. Explosive ignition can occur due to a gas build-up from the idle period. The combustion chamber, in the form of a parallelepiped made of sheet metal, lined on the inside with ceramic fiber, is designed in such a way as to allow the transfer to the exchanger with as little heat loss as possible. In the case of the heating circuit from the version with bitermic heat exchanger, the heat resulting from the combustion of the gaseous fuel is taken over by the bitermic heat exchanger and transferred to the heat agent (water) which is transported through the heating installation by the circulation pump. In the case of the domestic hot water circuit, the circulation pump does not work and the heat transfer is done through the bitermic exchanger in this circuit. In the case of the heating circuit from the version with two heat exchangers, the heat resulting from the combustion of the gaseous fuel is taken over by the monothermal heat exchanger and transferred to the heat agent (water) which is transported through the heating installation by the circulation pump. If a flow of water is detected on the domestic water circuit by the flow switch, the three-way valve is activated, which makes the transition from the heating circuit to the short circuit through the plate heat exchanger (primary of the plate heat exchanger) and the heat transfer is done through it to the domestic water circuit (secondary of the plate heat circuit). газов бойлер/котел.
