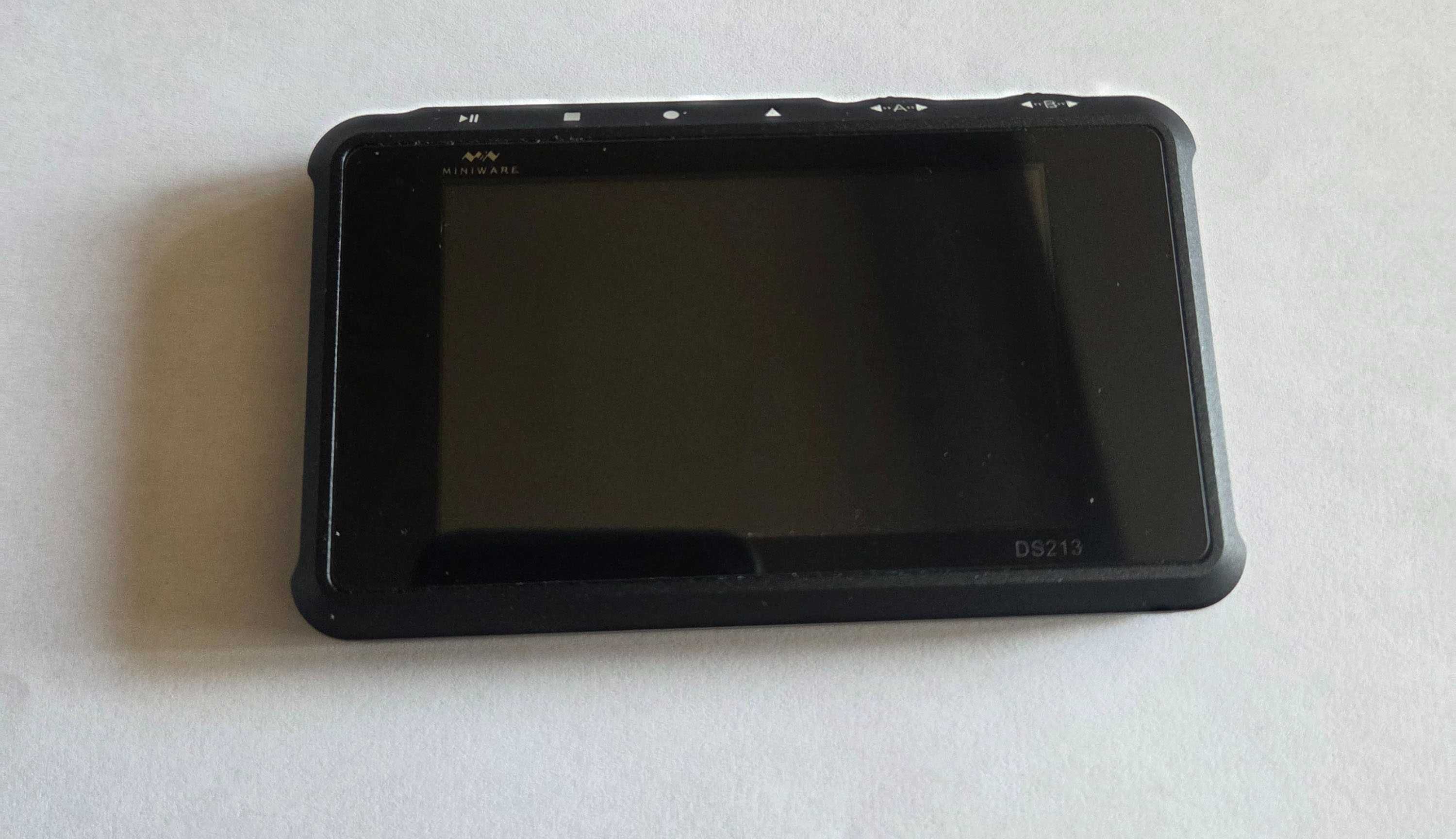

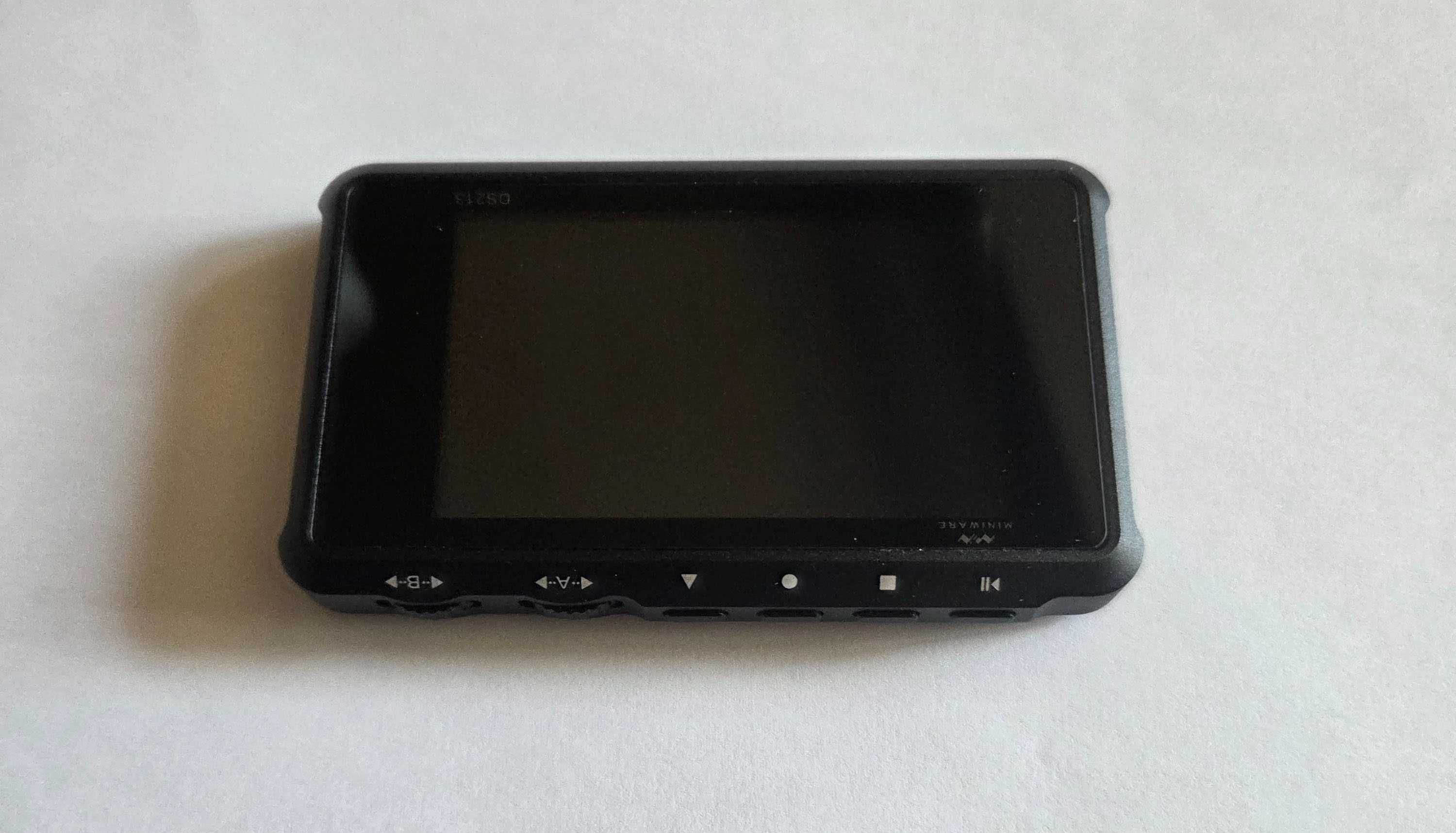

Мини осцилоскоп, изключително качествена изработка.
Неизползван.

Характеристики:

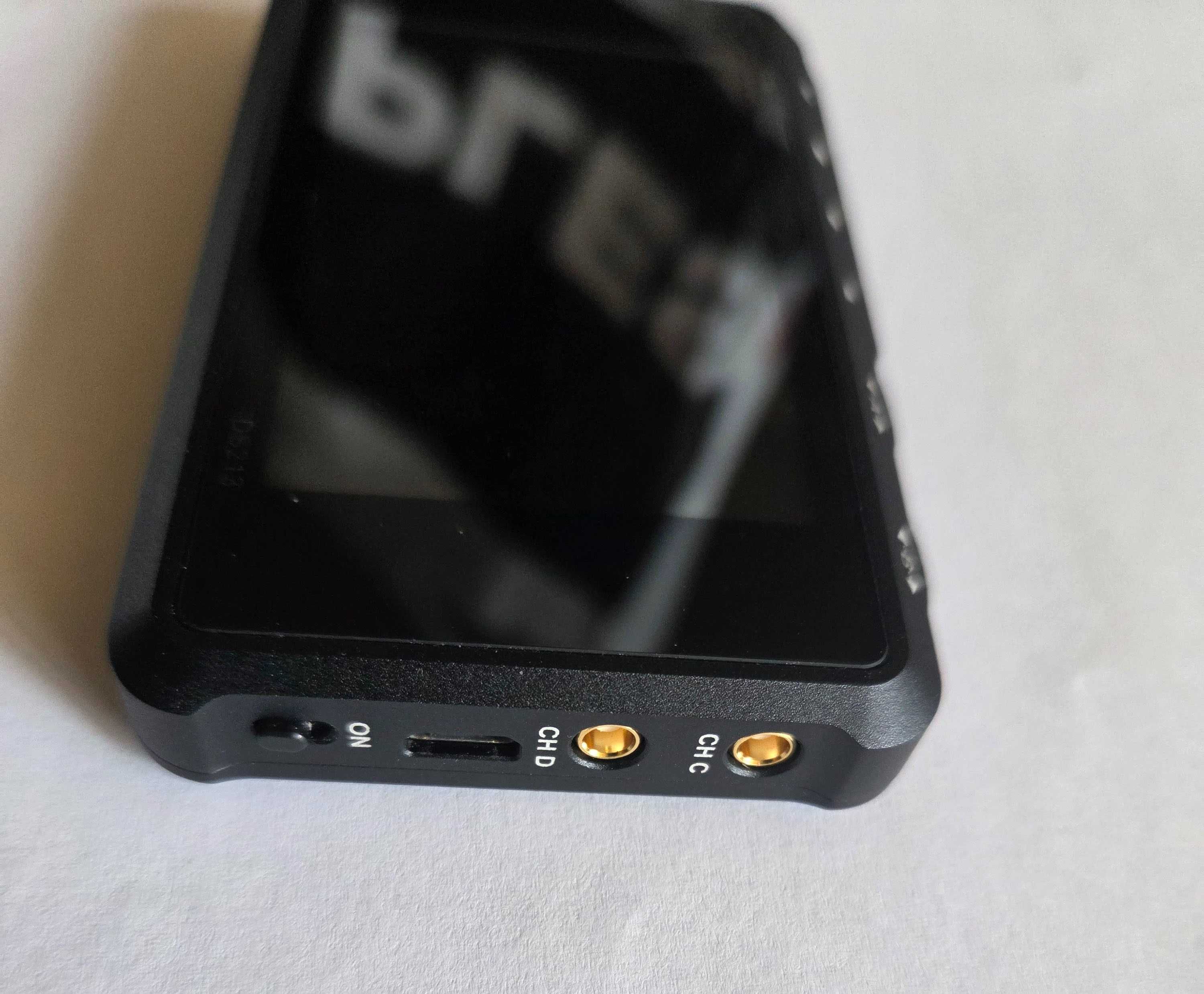

Channels 2 analog (CH A & CH B) + 2 digital (CH C & CH D)
Analog Bandwidth 15 MHz
Max Sampling Rate 100 MSa/s
Memory Depth 4 kpts per channel (4 × 4 k total)
Vertical Sensitivity 10 mV/div to 10 V/div (X1 probe); 100 mV/div to 100 V/div (X10 probe)
Vertical Resolution 8-bit resolution
Input Impedance 1 MΩ (analog), 100 kΩ (digital)
Max Input Voltage ±40 V (X1), ±400 V (X10)
Coupling Modes AC and DC
Trigger Modes Edge (rising/falling), positive/negative pulse, logic trigger
Built-in Signal Generator Square (10 Hz–8 MHz), Sine/Triangle/Sawtooth (10 Hz–20 kHz)
Measurement Functions Freq, period, duty, Vpp, RMS, avg, max, min, pulse widths
Math Functions INV A, INV B, A+B, A–B, C & D, C, D, RecA/B/C/D
Display 3″ TFT LCD, 400×240 resolution
Storage 8 MB internal USB-flash drive (.BMP, .BUF, .CSV formats)
CPU & Architecture ARM Cortex-M3 microcontroller with FPGA-managed ADC control & data cache
Power & Battery 1000 mAh rechargeable Li-Po battery; charges via micro-USB
Dimensions & Weight 99.5 × 58.5 × 13.5 mm; approx. 129 g
Certifications CE, FCC compliance
Firmware Open-source application layer; supports up to 4 firmware partitions

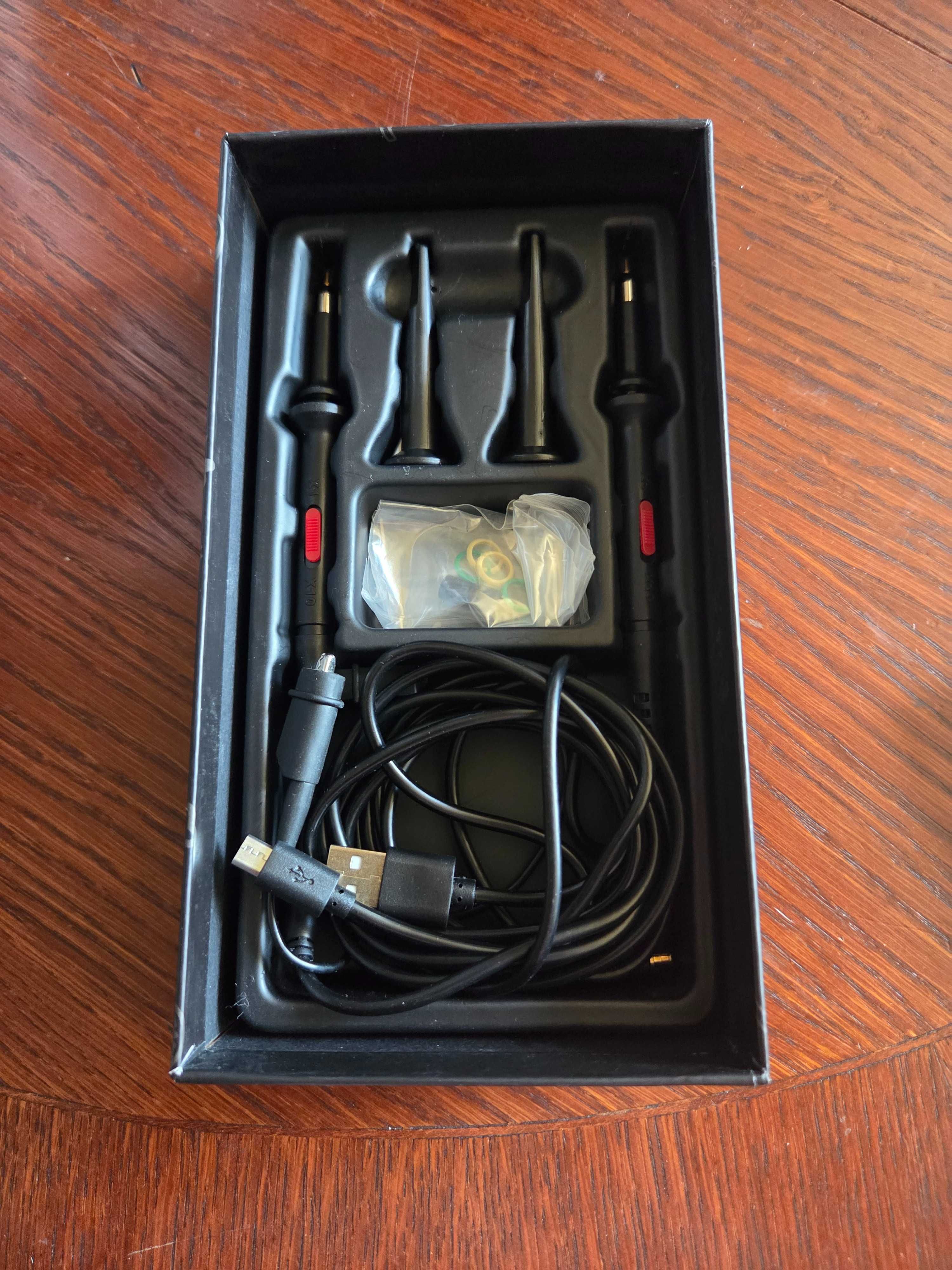

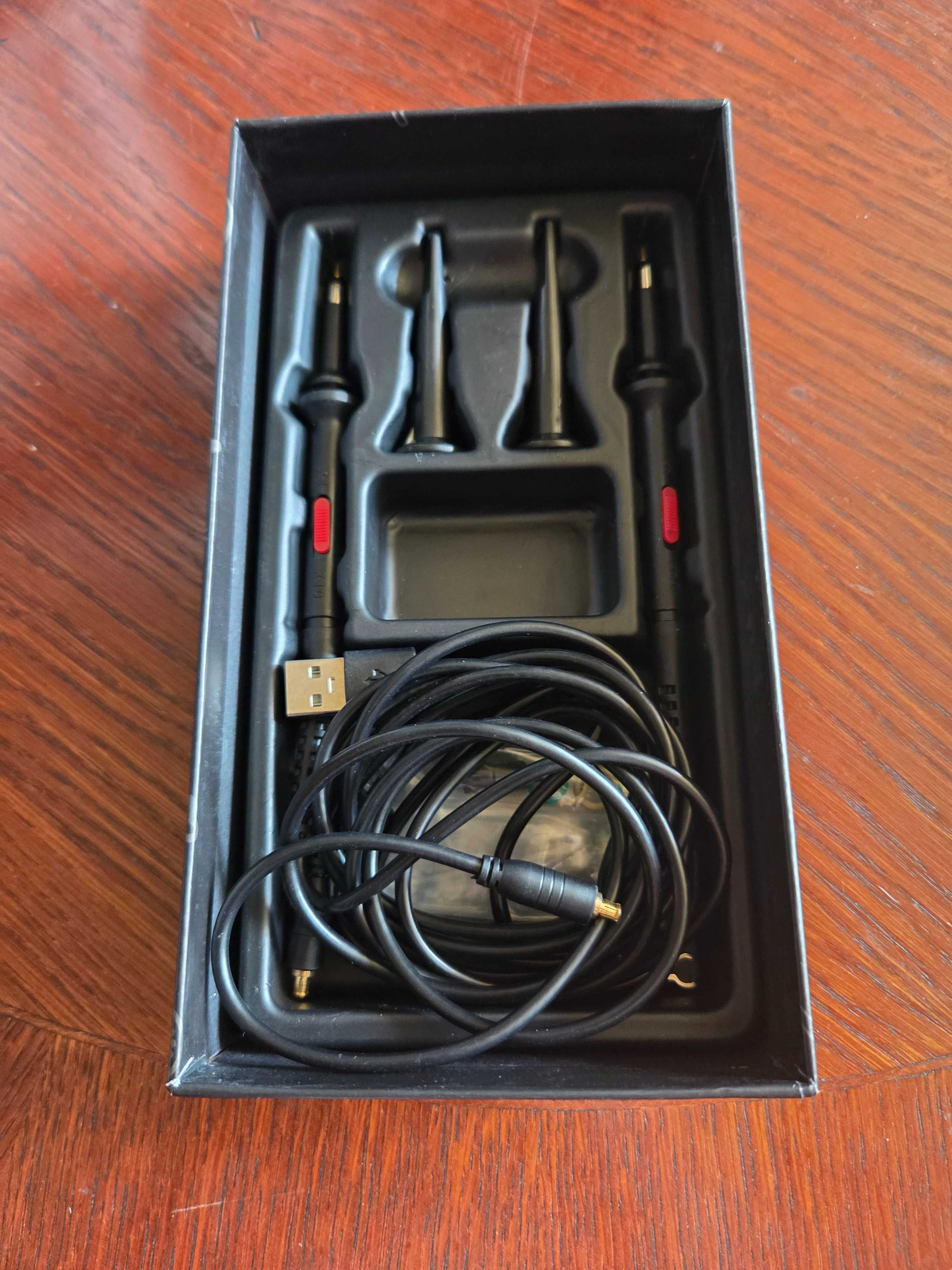

Box Contents DS213 unit, X1 & X10 probes, USB cable
