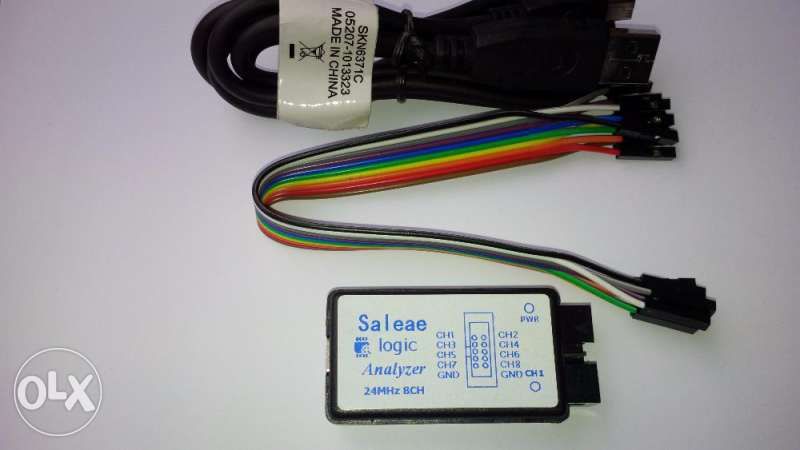

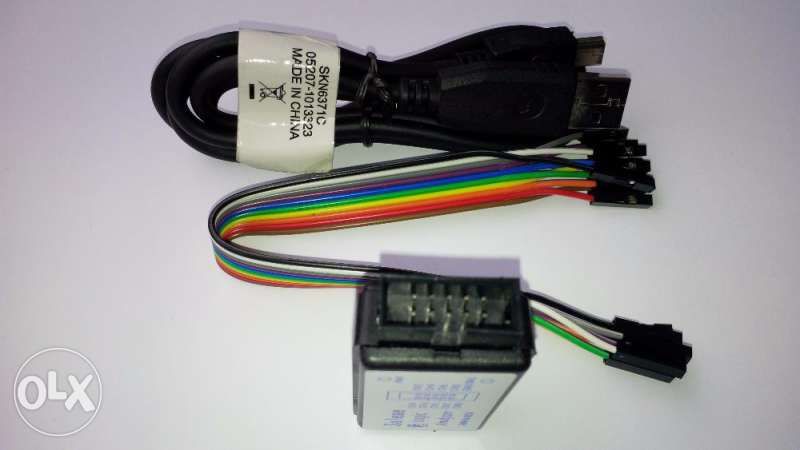

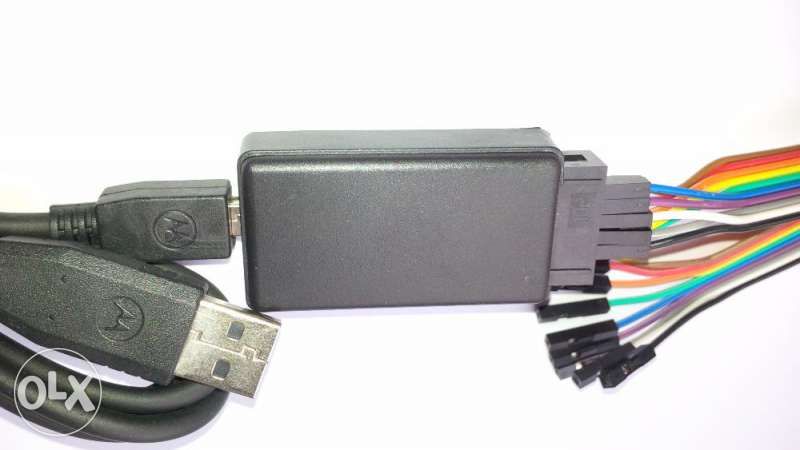

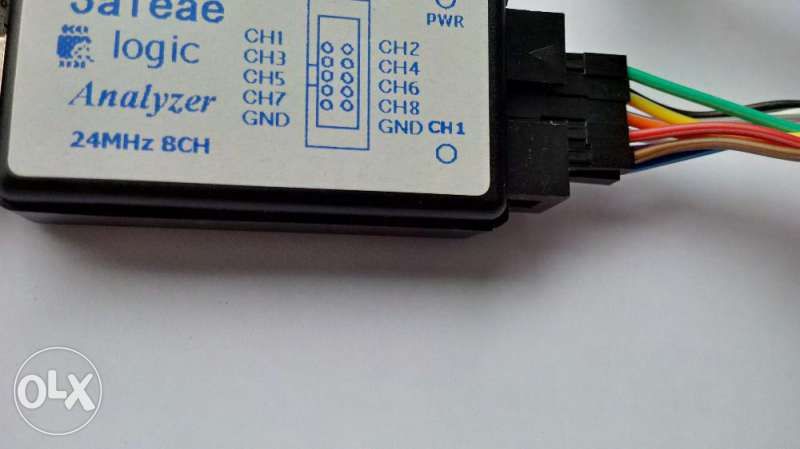

USB логически анализатор

Параметри:

Канали: 8
Входен капацитет: 5 pF
Входно съпротивление: 100 кОм
Захранване: от USB
Sampling rate: 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;

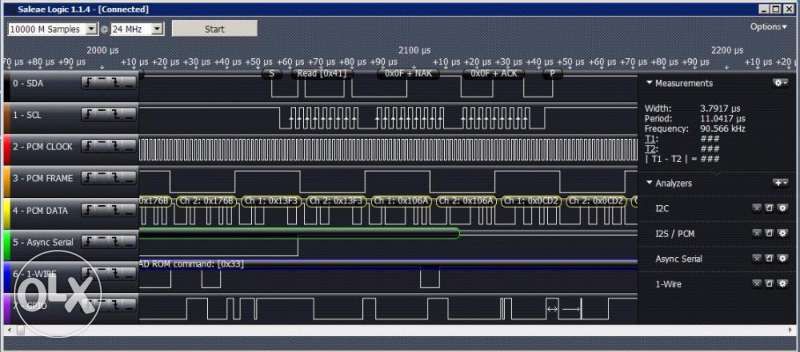

Софтуера е безплатен и може да се свали от тук :

support.saleae.com/logic-software/legacy-software/older-software-releases#1.1.20-download
Работи с по-старите версии до 1.1.20

Logic Analyzer Parameter:

1. 8 channels input;
2. Logical light indication: a small light indicate CHO electrical level;
3. Input: 5PF,100K Ohm;
4. USB power supply;
5. Sampling rate can be seted as below:
24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
6. Data upload real time, the max of depth of collection is 10T,far from practical need.
