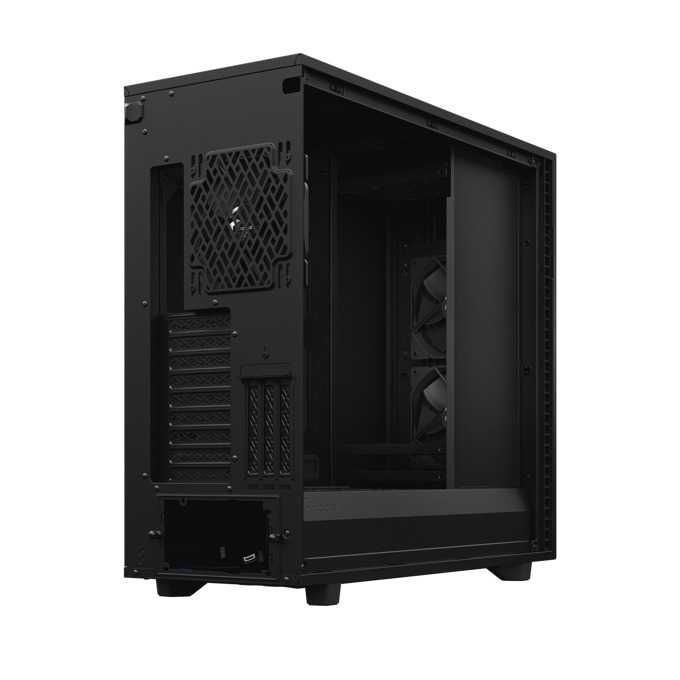

Кутия Fractal Design Define 7 XL Black Light TG, E-ATX/ATX/mATX/mITX/EE-ATX/SSI-CEB/SSI-EEB

Кутията е чисто нова. Това е модела с светлото стъко отстрани панела, не тъмото, не солидния железен панел а светло опушено стъкло. Този модел не се предлага в БГ, купувана от Германия. Чисто нова.

Марка Fractal Design
Тип Big/Full Tower

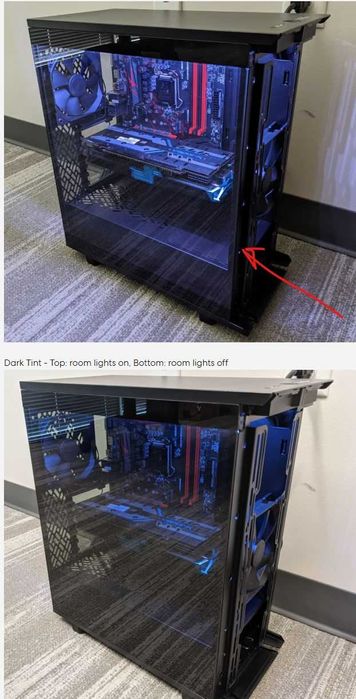

Цвят Черен с светло стъкло отстрани (не тъмо а светло)
Размер 604 x 240 x 566мм
Поддържани размери E-ATX, ATX, mATX, mITX, EE-ATX, SSI-CEB, SSI-EEB
Портове на предния панел 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio I/O
Тегло 16.64 кг.
Описание
Отвори за разширителни слотове: 9 + 3

Достъпни слотове за устройства: 2 x 5.25"
Скрити слотове за устройства: 6+2 x 3.5"/2.5"
Universal drive brackets, 2 x Dedicated 2.5" drive brackets
Охлаждане:

Възможности за добавяне на вентилатори:
1.Преден отвор: 4 x 120мм или 3 x 140мм, (2x Dynamic X2 GP-14 включен)

2.Горен отвор: 4 x 120мм или 3 x 140мм

3.Дъно: 2 х 120/140 мм

4.Заден отвор: 1 x 120/140мм (1x Dynamic X2 GP-14 включен)

Възможности за монтаж на течно охлаждане:
1.Преден отвор: 480/420мм

2.Горен отвор: 480/420мм

3.Дъно: 240/280 мм

4.Заден отвор: 120мм

Филтри за прах: горен отвор, 2x преден отвор, дъно + PSU
Допълнително:

Максимална височина на охладител за процесора - до 185мм
Максимална дължина на захранването: 250мм
Максимална дължина на видео картата: Макс. 524мм с монтиран преден вентилатор

Define 7 XL

Re-defining capacity.

The Define 7 XL sets a new standard for what you should expect from a fulltower case in terms of modularity, flexibility and ease of use.With its dual-layout interior, industrial sound damping and massively versatilelayout supporting the largest E-ATX and enterprise boards, multi-GPU setups,outlandish water loops, and almost two dozen storage devices (in Storagelayout), you’ll be hard pressed to find a limit to what you can do with yourbuild in the Define 7 XL

Keyfeatures
Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB

Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets inc

Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 28

Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering

Silence-optimized construction with industrial sound-damped front, top, and side panels

Top panel effortlessly swaps from sound damped solid steel to filtered ventilation

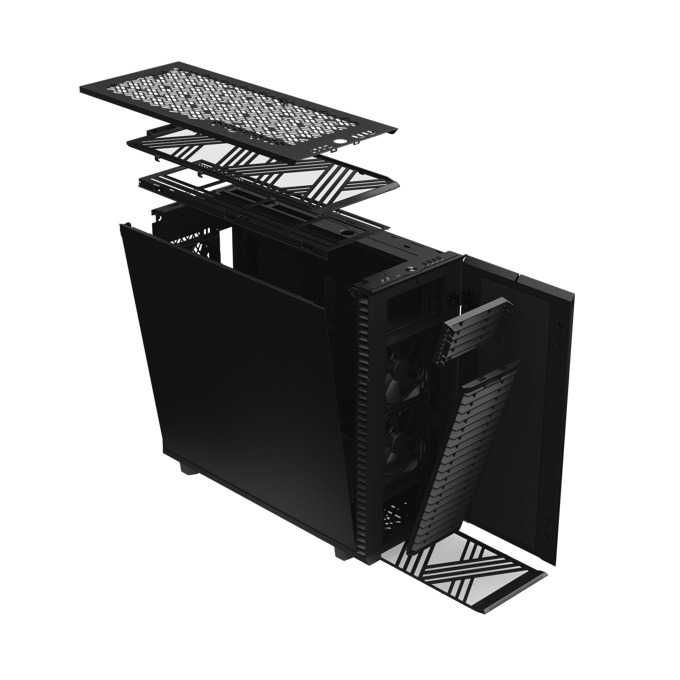

New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and

Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching

Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 G

Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount

Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately

Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case

Sturdy new HDD cage design with vibration damped trays

Tool-less, top-latching panels allow quick access while preventing accidental drops

Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup

Ventilated PSU shroud with two-part removable cover

Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and convenient front access

13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size

Dachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board

General Specifications

3.5"/2.5" drive mounts: 6 + 2 included, 18 positions total

Dedicated 2.5" drive mounts: 2 trays included, 5 positions total

5.25” drive mounts: 2

Expansion slots: 9 + 3

Motherboard compatibility: E-ATX/ATX/mATX/mITX/EE-ATX/SSI-CEB/SSI-EEB

Power supply type: ATX

Front interface: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0,
Audio I/O, Power button, Reset button

Total fan mounts: 11 x 120 mm or 9 x 140 mm

Front fan: 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)

Top fan: 4 x 120 mm or 3 x 140 mm

Rear fan: 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)

Bottom fan: 2 x 120/140 mm

Dust filters: Top, 2 x Front, Bottom + PSU

Front radiator: Up to 480/420 mm

Top radiator: Up to 480/420 mm

Rear radiator: 120 mm

Bottom radiator: Up to 240/280 mm

PSU max length: 250 mm (both HDD cages installed)

GPU max length: Storage layout: 359 mm

CPU cooler max height: 185 mm

Cable routing space: 30 mm

Cable routing grommets: Yes

Fixed velcro straps: Yes

Tool-less push-to-lock: Both side panels and top

Captive thumbscrews: HDD brackets, SSD brackets, PSU bracket

Left side panel: Industrial sound-damped steel or Tempered glass

Right side panel: Industrial sound-damped steel

Case dimensions (LxWxH): 604 x 240 x 566 mm

Case dimensions w/o feet/protrusions/screws: 590 x 240 x 548 mm

Net weight: TG: 16.64 kg/Solid: 16.53 kg

Package dimensions (LxWxH): 646 x 357 x 708 mm

Gross weight: TG: 18.84 kg/Solid: 18.73 k
