Суича е свален от ракла, работещ, с леки драскотини по боята, без никакви забележки.

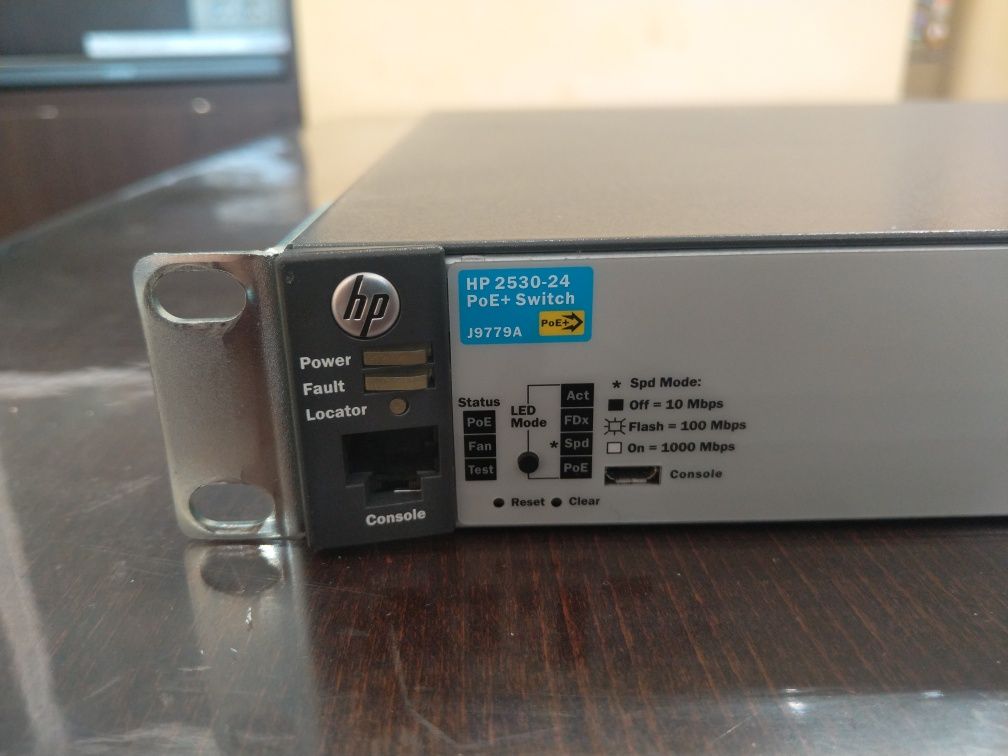

HP Aruba 2530-24-PoE+ Switch (J9779A) е вътрешен суич, който осигурява надеждно и бързо свързване в мрежите. Идеален за офиси и предприятия, поддържа Power over Ethernet (PoE+), което позволява захранване на устройства по мрежата. С компактен дизайн и висока производителност, той е отличен избор за мрежово оборудване.

System Specifications Description
I/O ports and slots 24 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3at PoE+)
Media type: Auto-MDIX
Duplex: Half or full
2 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: Half or full
1000BASE-T: Full only
2 fixed GbE SFP ports

Additional ports and slots
1 Dual-Personality (RJ-45 or USB Micro-B) serial console port

Memory and processor
ARM9E - 800 MHz, 128MB flash
Packet buffer size: 1.5MB dynamically allocated, 256MB DDR3 DIMM

Mounting and enclosure
Mounts in an EIA-Standard 19-inch telco rack or equipment cabinet (Rack-Mounting kit available)
Horizontal surface mounting
Wall mounting

Management
IMC
CLI
Web browser
Configuration menu
Out-of-Band management (Serial RS-232C or Micro-USB)
IEEE 802.3 Ethernet MIB
Repeater MIB
Ethernet interface MIB

Performance (IPv6 Ready Certified)
Description
1000Mb latency 1.1µs (LIFO 64-byte packets)
100Mb latency 1.7 µs (LIFO 64-byte packets)
Throughput Up to 9.5 Mp/s (64-byte packets)
Switching capacity 12.8 Gb/s
MAC address table size 16000 entries

Physical Specifications
Description

Dimensions (H x W x D) 4.45 x 44.2 x 32.26 cm (1.75 x 17.40 x 12.70 in)
1U height
Weight 3.81 kg (8.4 lb)

Electrical Specifications Description
Maximum heat dissipation 99 BTU/hr (104.45 kJ/hr), (Switch only: 99 BTU/hr; Combined switch + maximum PoE devices: 809 BTU/hr)

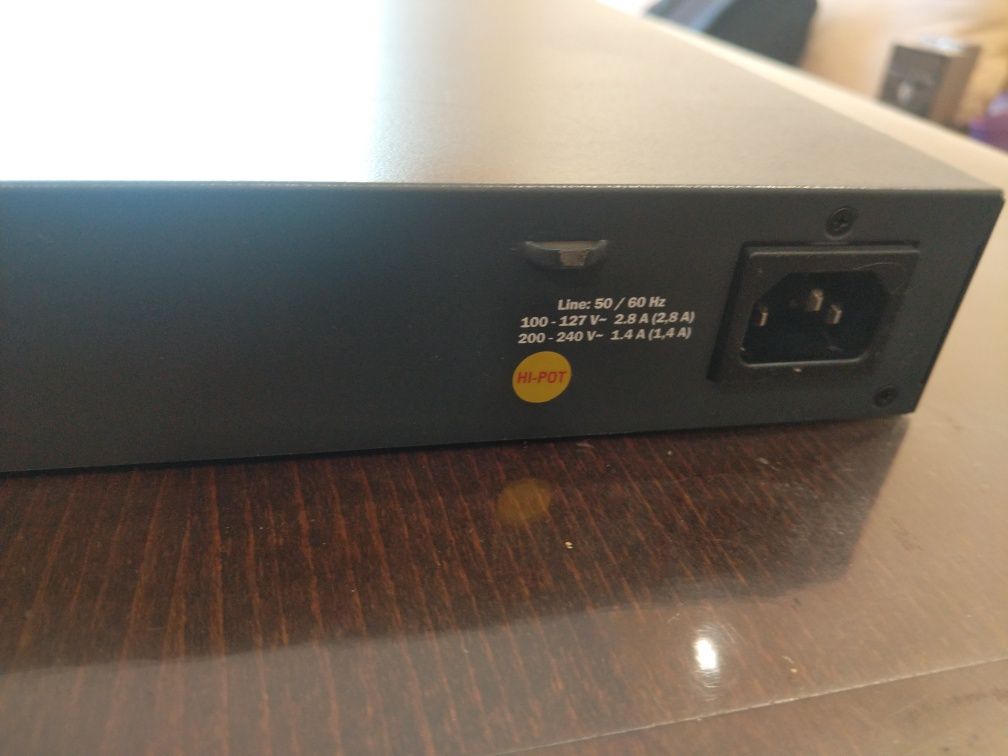

Voltage 100 - 127 / 200 - 240 V ac
Current 2.8/1.4 A
Idle power1 21.8 W
Maximum power rating2 237 W
PoE power 195 W
Frequency 50/60 Hz
