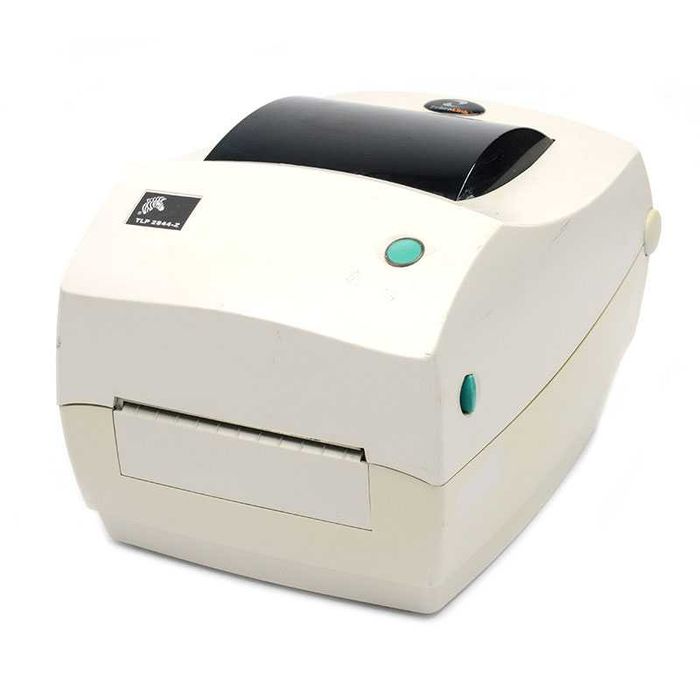

Модел: LP-2844-Z
Печат: Термо директен (черно-бял)
Скорост: 102 мм/сек
Резолюция: 203 dpi
Широчина на етикетите: 25.4 мм до 108 мм
Максимална широчина на печат: 104 мм
Интерфейс: USB, RS-232,LAN

Широчината на печата е 104 мм като това не пречи да е в крак с най-модерните технологии включително OpenACCESS™ дизайн и панорамно стъкло за мониторинг. Всичко това прави TLP2844-Z пълен професионалист когато става въпрос за увеличаване на производителността на работното място. Сериен, паралелен и USB интерфейси, а също така вграден Ethernet (ZebraNet PrintServer II), също така раполага с 8Мб флаш памет с часовник в реално време и набор от азиатски и международни езици.

Resolution
203 dpi (8 dots/mm)
Memory
8 MB SDRAM

Print width
4.09″ (104 mm) maximum
Print length
39″ (991 mm)
Print speed
4″ (102 mm)/sec
Media sensors
Reflective
Transmissive
Media Characteristics
Maximum label and liner width
4.25″ (108 mm)
2.8″ (71 mm) with Media Adapter Guides
Minimum label and liner width
1.00″ (25.4 mm)
0.585″ (15 mm) with Media Adapter Guides
Maximum label and liner length
39″ (991 mm)
Maximum label and liner length (optional)
N/A – no SRAM memory option
Maximum roll diameter
5″ (127 mm)
Core diameter
1.0″ (25.4 mm) and 1.5″ (38 mm)
Media thickness
0.003″ (.08 mm) to 0.007″ (0.18 mm)
Media types
(black-mark optional), black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notch, notch sensing, notched, perforated, receipt, roll-fed, tag, tag stock
Ribbon Characteristics
Outside diameter
1.34″ (34 mm)
Standard length
244′ (74 m)
Ratio
1:01
Ribbon width
Recommended to be at least as wide as media
1.33″ (33.8 mm) to 4.30″ (110 mm)
ID Core
0.5″(12.7mm)
Operating Characteristics
Operating temperature
TT: Operating temperature40°F(5°C)to105°F(41°C)Thermal transfer
DT: Operating temperature40°F(5°C)to105°F(41°C)Direct thermal
Storage temperatures
-40°F(-40°C)to140°F(60°C)
Operating humidity
10-90% non-condensing R.H.
Storage humidity
5-95% non-condensing R.H.
Electrical
Auto-detectable (PFC compliant) 100-240 VAC, 50-60 Hz
Agency approvals
FCC
VCCI/PSE
C-TICK
UL
IRAM/S
NOM
GOST-R
CSA
CE
CCC/SRRC
Physical Characteristics
Width
7.9″ (201 mm)
Height
6.8″(173mm)
Depth
9.75″(248mm)
Weight
3.2lbs(1.5kg)
Shipping weight
6 lbs (2.72 kg)
Related Products
Options
Cutter
Internal ZebraNet PrintServer II for Ethernet connectivity
Dispenser with label taken sensor
Asian and International Font Packs
8 MB Flash memory with real time clock
Communication and Interface Capabilities
Serial RS-232 (DB9)
Parallel (Centronics)
USB
ZebraNet PrintServer II for Ethernet connectivity (internal or external)
Programming Languages
Core programming languages
ZPL, ZPL II
Bar Codes/Symbologies
Linear
Codabar
Code 128
Code 39
Code 93
EAN-13
EAN-8
Interleaved 2-of-5
Industrial 2-of-5
ISBT-128
Logmars
MSI
Plessey
Postnet
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
EAN-14
UPC-A and UPC-E with EAN 2 or 5 digit extensions
Code 11
RSS-14
2-dimensional
Codablock
QR Code
Code 49
Data Matrix
MaxiCode
PDF417
MicroPDF417
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics
Standard Fonts: 16 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
Supports user-defined fonts and graphics–including custom logos
IBM Code Page 850 International Characters
