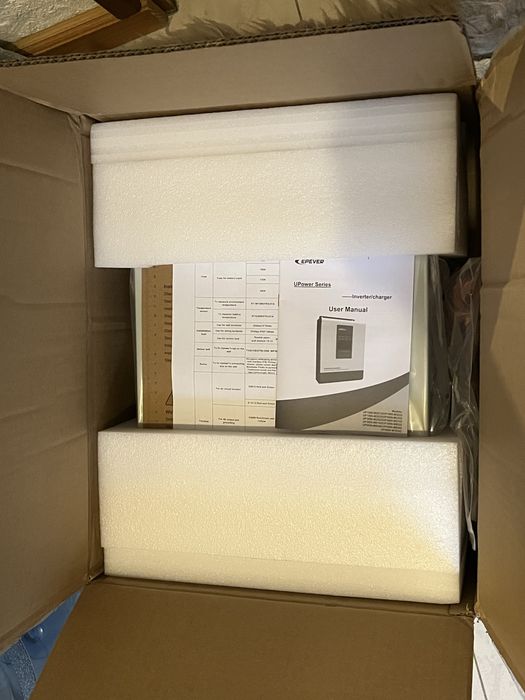

Чисто нов инвертор, соларен контролер, battery charger EPEVER UP1000-M3212 12v 800w inverter charger.
Nominal battery voltage = 12VDC

Battery input range = 10.8 ~ 16VDC

Inverter Output:

Continuous output power = 800W

Output power (15min) = 1000W

Overload Power (5s) = 1600W

Max. surge power = 2000W

Output voltage range = 220VA +/-5%, 230VAC (-10% ~ +5%)

Output frequency = 50/60+/-0.1 Hz

Output mode = Single phase

Output wave = Pure Sine Wave

Max efficiency = 91%

Transfer time = 0 ~ 20ms

Utility Input:

Utility input voltage range = 160VAC ~ 280VAC (working voltage range) / 170VAC ~ 270VAC (Untility starting voltage range)

Max. Utility charge current = 20A

Solar Charging:

Max. PV open circuit voltage = 60V

Max. PV input power = 390W

Max. PV charging current = 30A

Equalization voltage = 14.6V

Boost Voltage = 14.4V

Float Voltage = 13.8V

Tracking efficiency = 99.5%

Max. charging conversion efficiency = 98%

General:

Zero load consumption = 1.2A

Enclosure = IP30

Relative humidity = 95% (N.C.)

Working environment temperature = -20C ~ 50C (full input and output with no derating)

Mechanical Parameters:

Dimensions = 386mm x 300mm x 126mm

Mounting dimension = 230mm

Mounting hole size = 8mm
