Data
General

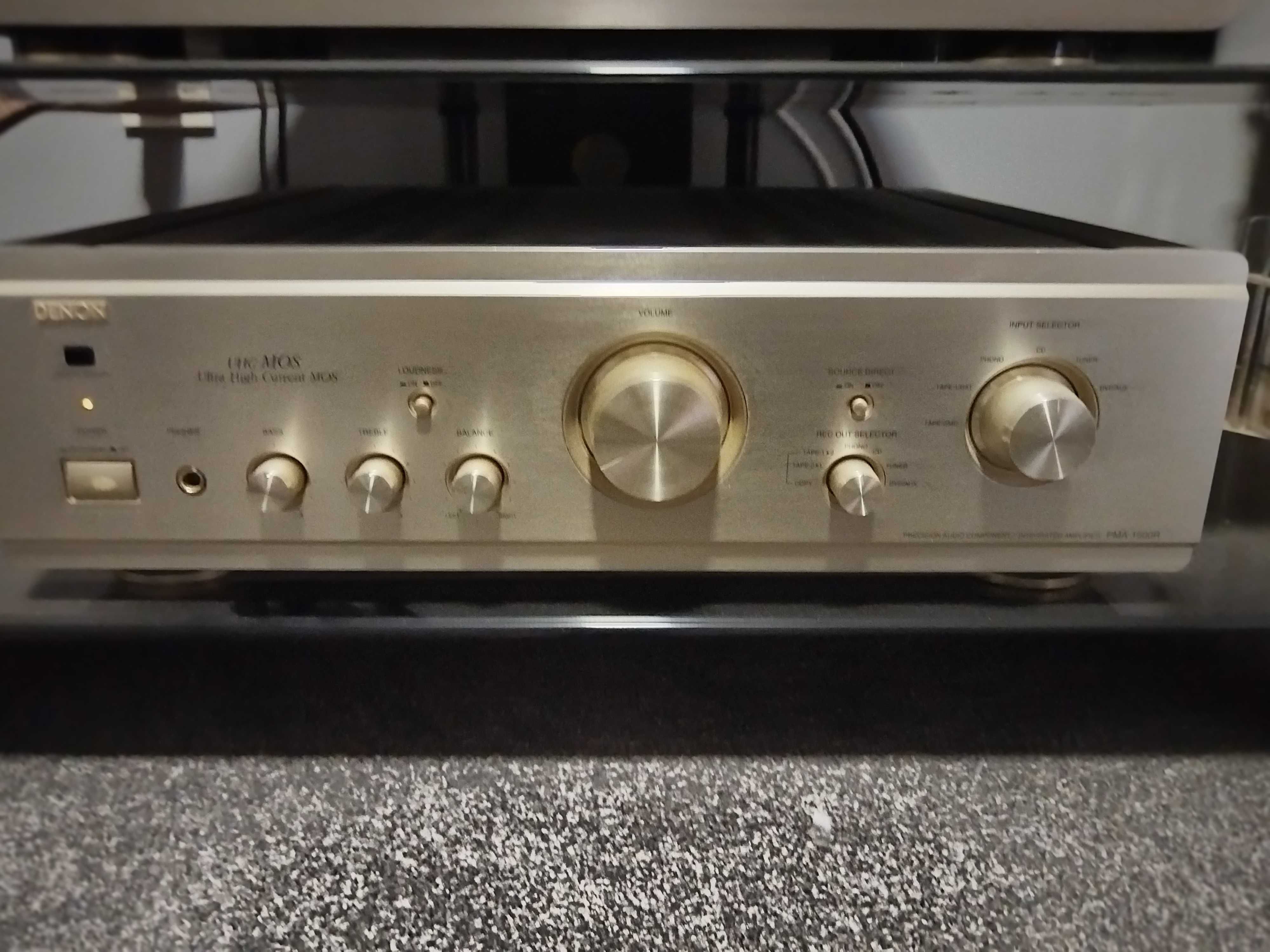

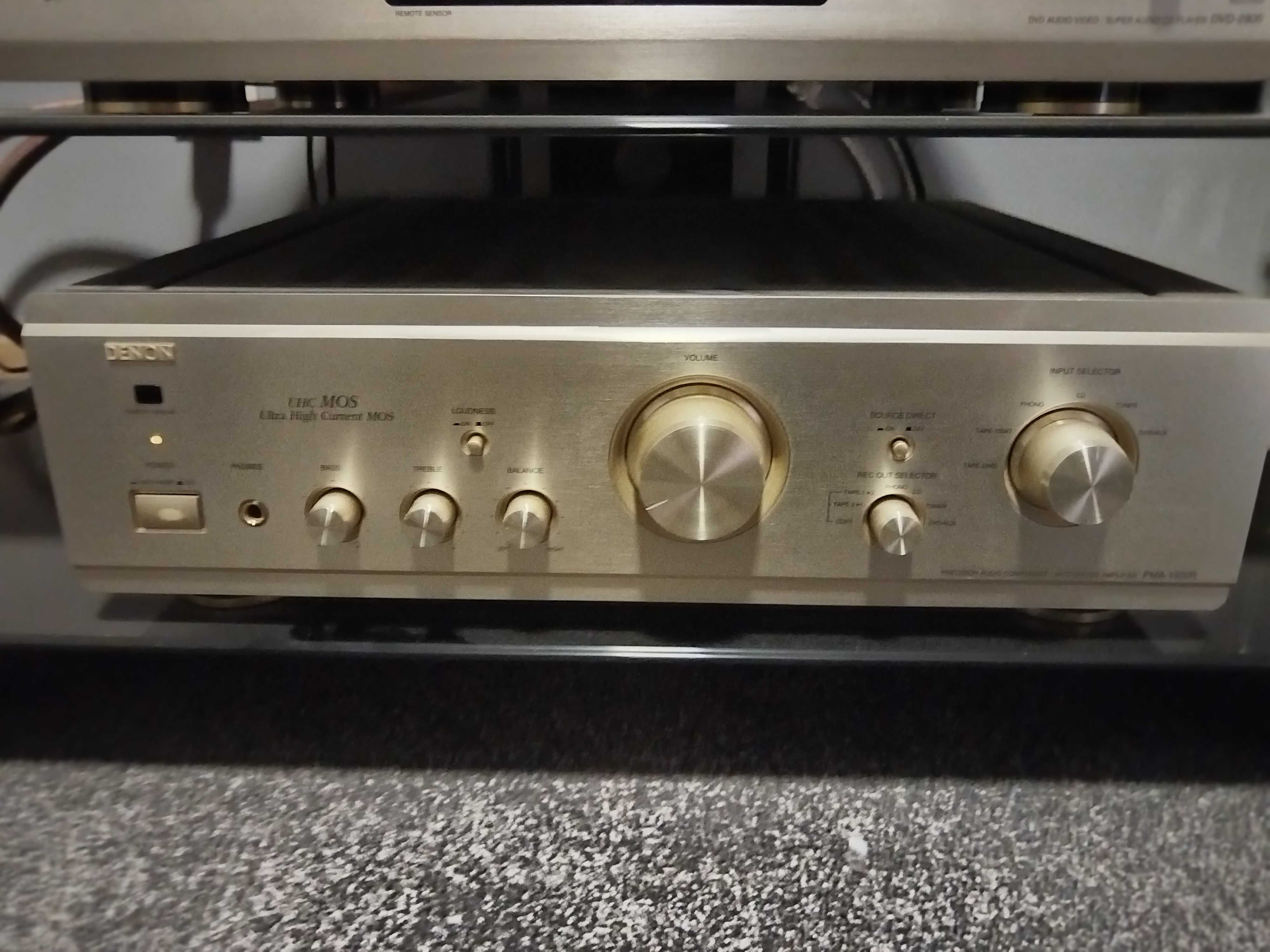

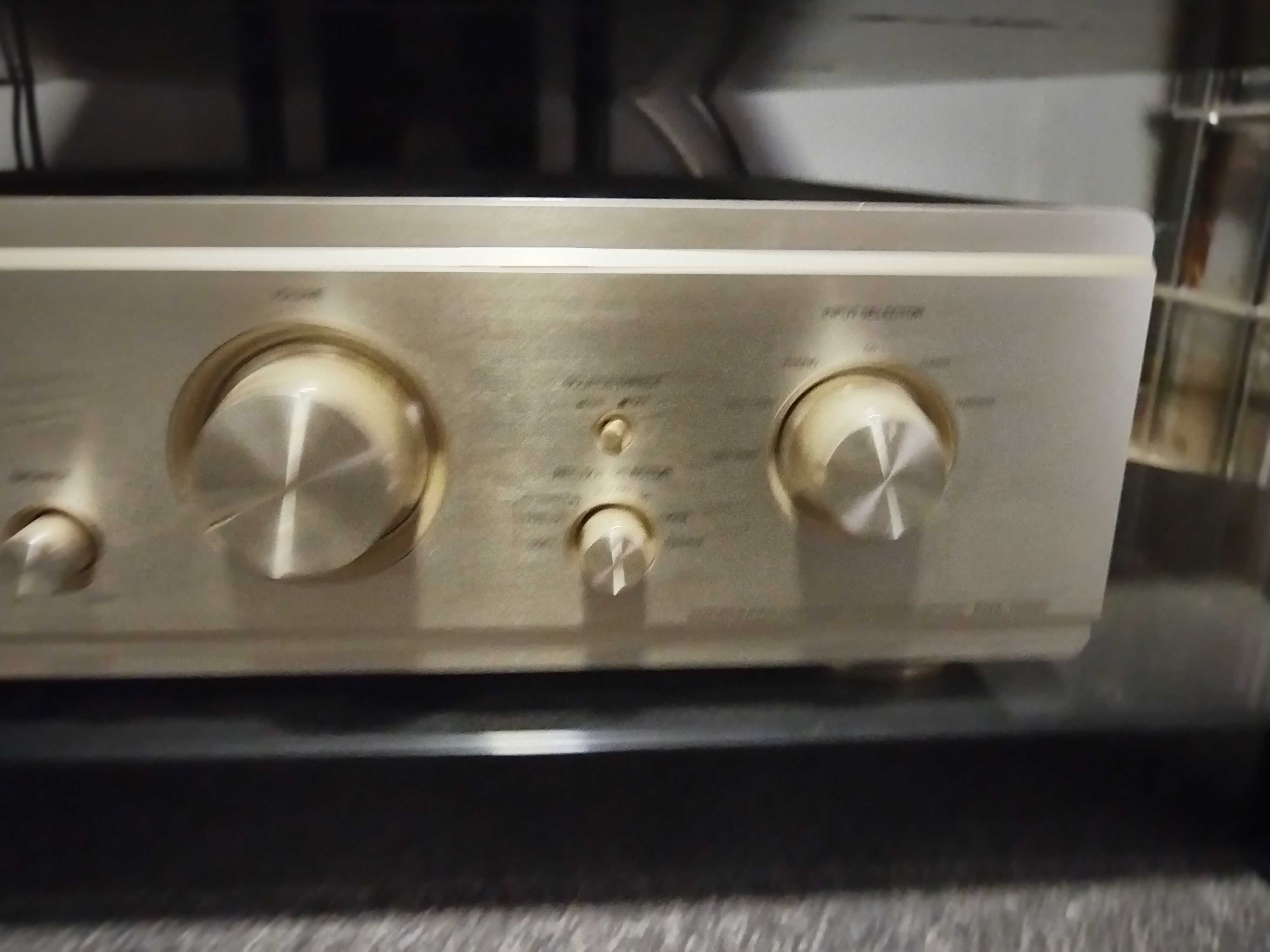

Manufacturer: Denon
Model: PMA-1500 R
Type: Integrated amplifier
Years of manufacture: 1997 - 2004
Made in: Japan
Color: Champagne, Black
Remote control: yes, RC-837
Power consumption: 305 W max.
Dimensions: 434 x 134 x 407 mm (WxHxD)
Weight: approx. 14.0 kg
Original price approx.: 1'299 DM

Connections

Number of inputs: 6
PHONO (MM: 2,5m / 47kΩ/Ohm | MC: 200µV / 100Ω/Ohm)

CD, TUNER, DVD/AUX (150mV / 47kΩ/Ohm)
TAPE-1/DAT, TAPE-2/MD (150mV / 13kΩ/Ohm *SOURCE-DIRECT: ON)
Number of outputs: 3 (rated output: 150mV *recording output jack).
preamplifier output
TAPE1 REC OUT
TAPE2 REC OUT

Technical Data

Rated continuous power (at THD)
8 Ohm: 2x70W (20Hz to 20kHz, T.H.D 0,07%)
4 Ohm: 2x140W (DIN, 1kHz, T.H.D. 0,7%)
Total harmonic distortion: 0,01%
Attenuation factor: -3dB at nominal output, 8Ω/Ohm (1kHz).
Frequency Response: 20Hz ~ 20kHz
Signal-to-noise ratio: (IHF-A crossover).
PHONO (MM: 91dB (at 5mV input))
PHONO (Inputs shorted) (MC: 76dB (at 0.5mV input)) CD, TUNER, DVD/AUX, TAPE-1/DAT, TAPE-2/MD (110dB * SOURCE-DIRECT: ON)

Stereo channel separation: n/a.
Tone control:
Bass: 100Hz ±8dB
Treble: 10kHz ±8dB Loudness: 50Hz +10dB | 10kHz +6dB

Remote Control

Model: RC-837
Power supply: 3V DC, two R6P(AA)
Dimensions: 55(W) x 194(H) x 18(D) mm
Weight: 100g (including batteries)
