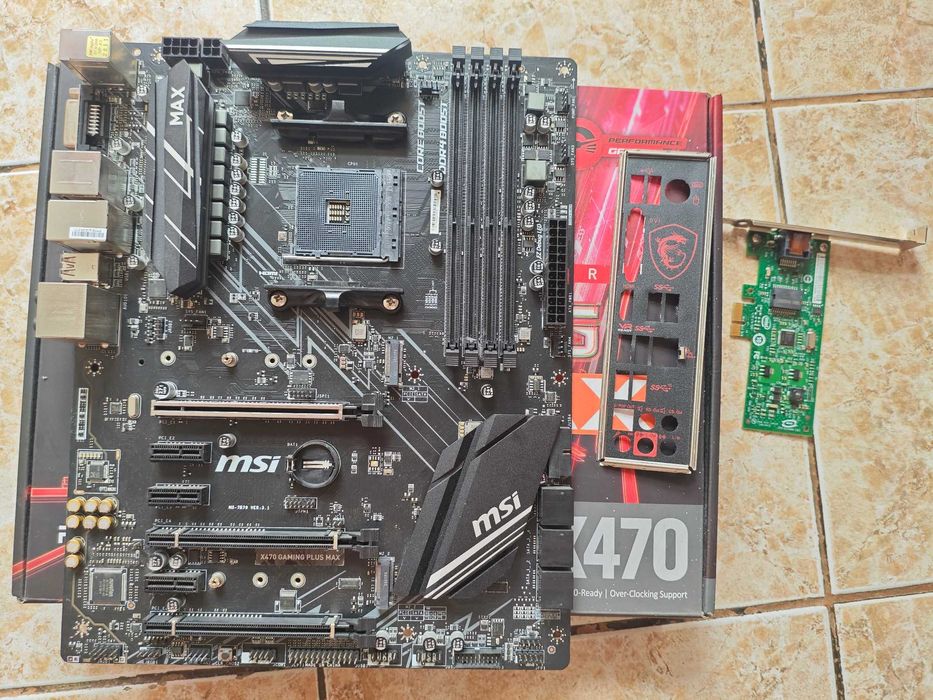

Дъното поддържа всички Ryzen 1000, 2000, 3000, 4000 и 5000 процесори.

Основното му предимство пред останалите дъна е че първите два PCI-E x16 слота могат да работят в x8/x8 режим (за разлика от масовите дъна при които втория слот е x4 или по-бавен), което го прави идеално за Lossless Scaling гейминг с две видео карти.
Аз лично съм го ползвал с две RTX 3060Ti видео карти и съм играл всичко на 4K MAX със 144 FPS.

Вградената LAN карта е изгоряла, затова го давам в комплект с отделна професионална Intel expi9301ctblk Gigabit LAN карта.

За София и Пловдив може лично предаване. За останалата страна изпращам по Еконт или Спиди.
Ако не вдигна моля пишете на ЛС, Viber или WhatsApp.

Пълни характеристики:

CPU:
Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

AMD® X470 Chipset
4x DDR4 memory slots, support up to 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 Mhz by A-XMP OC MODE1
For AMD Other CPU
Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE
Dual channel memory architecture
Supports non-ECC UDIMM memory
Support ECC UDIMM memory (Non-ECC MODE)

Athlon™ with Radeon™ Vega Graphics processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.

Slots:
2x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
1st, 2nd and 3rd Gen AMD Ryzen™ Processors support x16/x0, x8/x8 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors support x8/ x0 mode
Athlon™ with Radeon™ Vega Graphics Processors support x4/x0 mode
1x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
3x PCIe 2.0 x1 slots

PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

1x DVI-D port, supports a maximum resolution of 1920x1200 60Hz
1x HDMI™ port 1.4, supports a maximum resolution of 4096x2160 30Hz
Only support when using Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Maximum shared memory of 2048 MB

*No Display support when using the Processor model with suffix “F”

1st, 2nd and 3rd Gen AMD Ryzen™ Processors
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Storage:
6x SATA 6Gb/s ports
2x M.2 slot (Key M)1
M2_1 slot (from AMD® processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors) or PCIe 3.0x2 (Athlon™ with Radeon™ Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices
M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices

SATA1 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot.
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB:
ASMedia® ASM1143 Chipset
2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
4x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio:
Realtek® ALC892/897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN:
1x Realtek® 8111H Gigabit LAN controller

Internal connectors:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
2x USB 3.2 Gen1 connectors (support additional 4 USB 3.2 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin PUMP fan connector (supports up to 2A)
4x 4-pin system fan connectors
1x Serial port connector
1x Parallel port connector
2x 5050 RGB LED strip 12V connectors
1x TPM module connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x Clear CMOS button

Dimensions:
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
