Марка:
ASRock

Серия:
ASRock H170

Платформа:
Intel

Сокет:

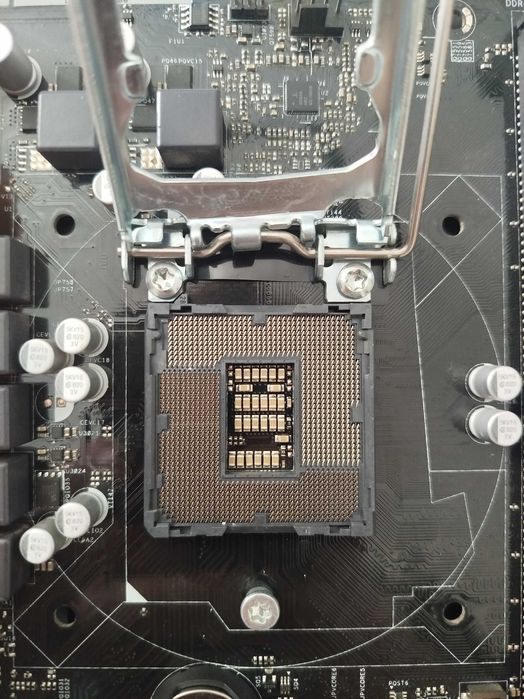

Intel LGA 1151

Описание
Интерфейси:

1 x PS/2 мишка/ клавиатура
1 x D-Sub
1 x DVI-D
1 x HDMI
1 x DisplayPort 1.2
6 x USB 3.0
1 x RJ-45 LAN с LED индикатор
HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Слотове за разширение:

2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)( Поддържа NVMe SSD като boot disks)
2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Kонектори:

1 x Print Port Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)( Всички CPU/Chassis Fan Connectors автоматично откриват дали се ползва 3-pin или4-pin fan
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
(CPU Fan Connector поддържа CPU вентилатора на максимална 1А ( 12W ) мощност на вентилатора)

Съхранение:

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 14 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug ( If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and SATA3_1 will be disabled)
1 x Ultra M.2 Socket, supports type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)( Supports ASRock U.2 Kit Supports NVMe SSD as boot disks )

Брой слотове за памет
4
Аудио контролер
Realtek ALC892 (7.1 канален съраунд)
Интернет контролер
Intel I219V Gigabit LAN 10/100/1000 Мбит/сек
Размер
Micro-ATX
