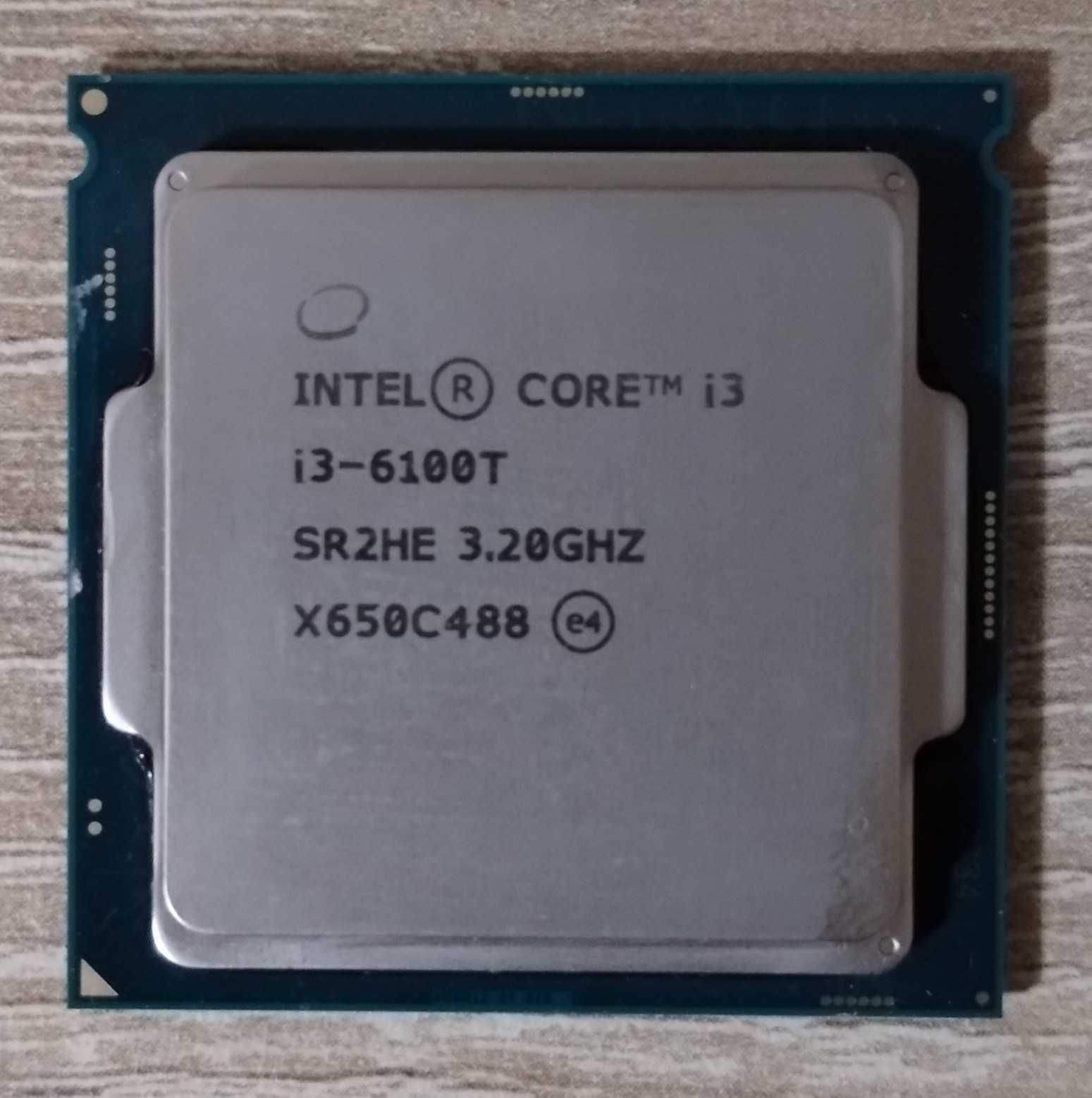

CPU Intel Core i3-6100T 3M Cache 3.20 GHz Dual-core Four-threaded 35W LGA 1151 процесор

CPU Specifications
Total Cores 2
Total Threads 4
Processor Base Frequency 3.20 GHz
Cache 3 MB Intel® Smart Cache
Bus Speed 8 GT/s
TDP 35 W

Supplemental Information
Marketing Status Discontinued
Launch Date Q3'15
Servicing Status End of Servicing Lifetime
End of Servicing Updates Date Friday, September 30, 2022
Embedded Options Available No
Included Items FHS Part #E98290-001

Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-1866/2133, DDR3L-1333/1600 1.35V
Max # of Memory Channels 2
Max Memory Bandwidth 34.1 GB/s
ECC Memory Supported ‡ Yes

GPU Specifications
GPU Name‡ Intel® HD Graphics 530
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 950 MHz
Graphics Video Max Memory 64 GB
Graphics Output eDP/DP/HDMI/DVI
4K Support Yes, at 60Hz
Max Resolution (HDMI)‡ 4096x2304 24Hz
Max Resolution (DP)‡ 4096x2304 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304 60Hz
Max Resolution (VGA)‡ N/A
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡3
Device ID0x1912

Expansion Options
Scalability1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16

Package Specifications
Sockets Supported FCLGA1151
Max CPU Configuration1
Thermal Solution Specification PCG 2015A (35W)
TCASE 66°C
Package Size37.5mm x 37.5mm
Advanced Technologies
Intel® Optane™ Memory Supported ‡ No
Intel® Turbo Boost Technology ‡ No
Intel® Hyper-Threading Technology ‡ Yes
Intel® Transactional Synchronization Extensions No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes

Security & Reliability
Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Memory Protection Extensions (Intel® MPX) Yes
Intel® OS GuardYes
Intel® Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Intel® Stable IT Platform Program (SIPP) No
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
