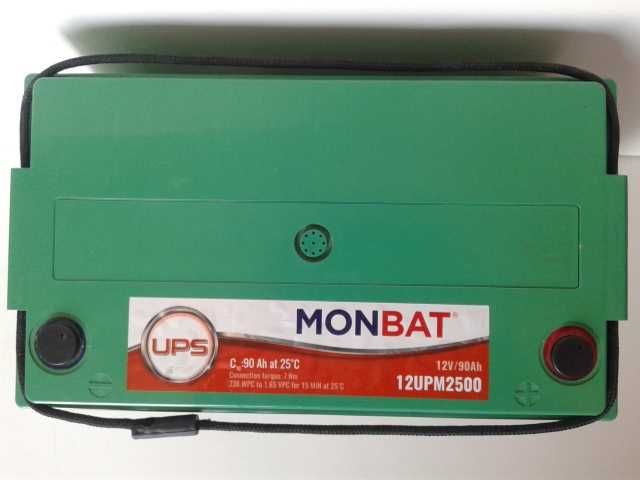

12UPM2500 TOP TERMINAL AGM VRLA

Product characteristics:
• Valve-regulated lead-acid battery
• UPS and reserve power applications
• EUROBAT design life definition: Long Life 10 - 12 years
• Extremely long float life performance
• Superior cycling endurance
• Compact design with high energy density
• Low installation cost, maintenance free product
• Sealed for leak-proof operation
• Delivered ready for use
• Non-hazardous cargo for ground, sea and air transport
• Fully recyclable product

TECHNICAL SPECIFICATIONS:
Electrical specifications:
• Nominal voltage: 12V
• Number of cells: 6
• Rated capacity: 90 Ah (10 h rate to 1.80 Vpc at 25 °C)
• Internal resistance: 5.9 mOhm (IEC 60 896 -21/22)
• Short circuit current: 2 270 A (IEC 60 896 -21/22)
• Float charge voltage: 2.27 V per cell (Vpc) at 25 °C

Design features:
• Design life at 20 °C: Long Life 10 - 12 years
• Plates: Tick Flat Pasted
• Active material: Very high purity virgin lead
• Grid alloy: Lead-Calcium-Tin alloy
• Electrolyte: Sulphuric acid, Analytical grade
• Separator: Absorbing Glass Mat (AGM)
• Operating temperature: - 10 °C to +50 °C (maximum)
+15 °C to +25 °C (recommended)
• Venting valve: Rubber, one way, self resealing
- Opening pressure: 1.7 PSI
- Resealing pressure: 1.5 PSI

• Internal gas recombination efficiency: 99%
• Flame arrestor: Available
• Storage temperatures: -20 °C to +50 °C
• Self discharge: Less than 2.5% per month at 20°C
• Storability without recharging: Up to 6 months at 20°C
• Shelf life: Up to 1 year
• Container / lid material: Shock resistant ABS FR;
flammability class UL94 V0
• Terminal position: Top
• Terminal sealing: Mechanical + epoxy double sealing
• Terminal type: Brass; Female; M6 thread
• Terminal torque: 6 Nm
• Carrying Handles: Available

Applicable standards:
• IEC 60896 - 21/22 • IEC 61427 – 1/2 • IEEE 1184
• ЕN 50272 - 2 • IEC 61056 - 1 • IEEE 1187 / 1188

Manufacture standards:
• ISO 9001, ISO 14001, OHSAS 18001, AQAP 2110

Състояние: употребявани в добро състояние, използвани са в прецизно климатизирано помещение (дейта център), периодично се зареждат

Цена: 100 лв/брой
Отстъпки за количества
Гаранция: 1 месец

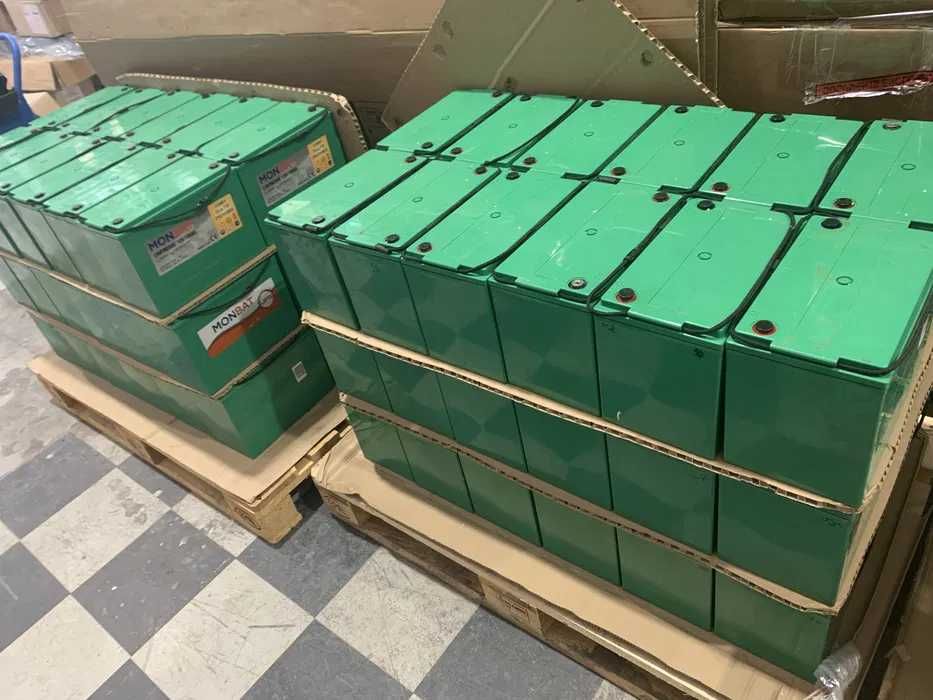

Наличност: 50+ бр.

Подходящи за соларни системи.

Обаждания се приемат само в работни дни от 09:00 до 18:00 ч.
През почивните дни, напишете съобщение, ще върнем отговор максимално бързо.
