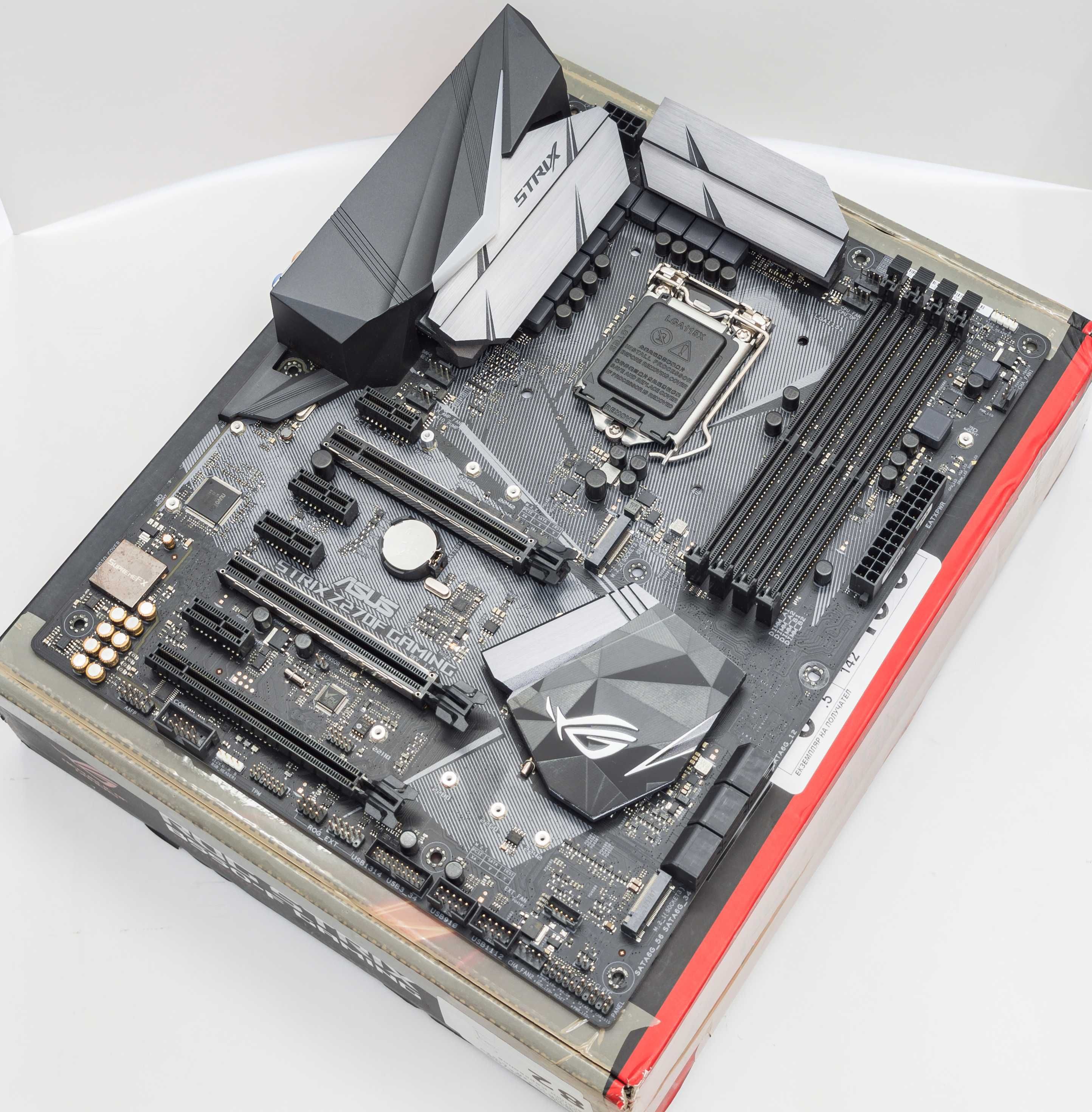

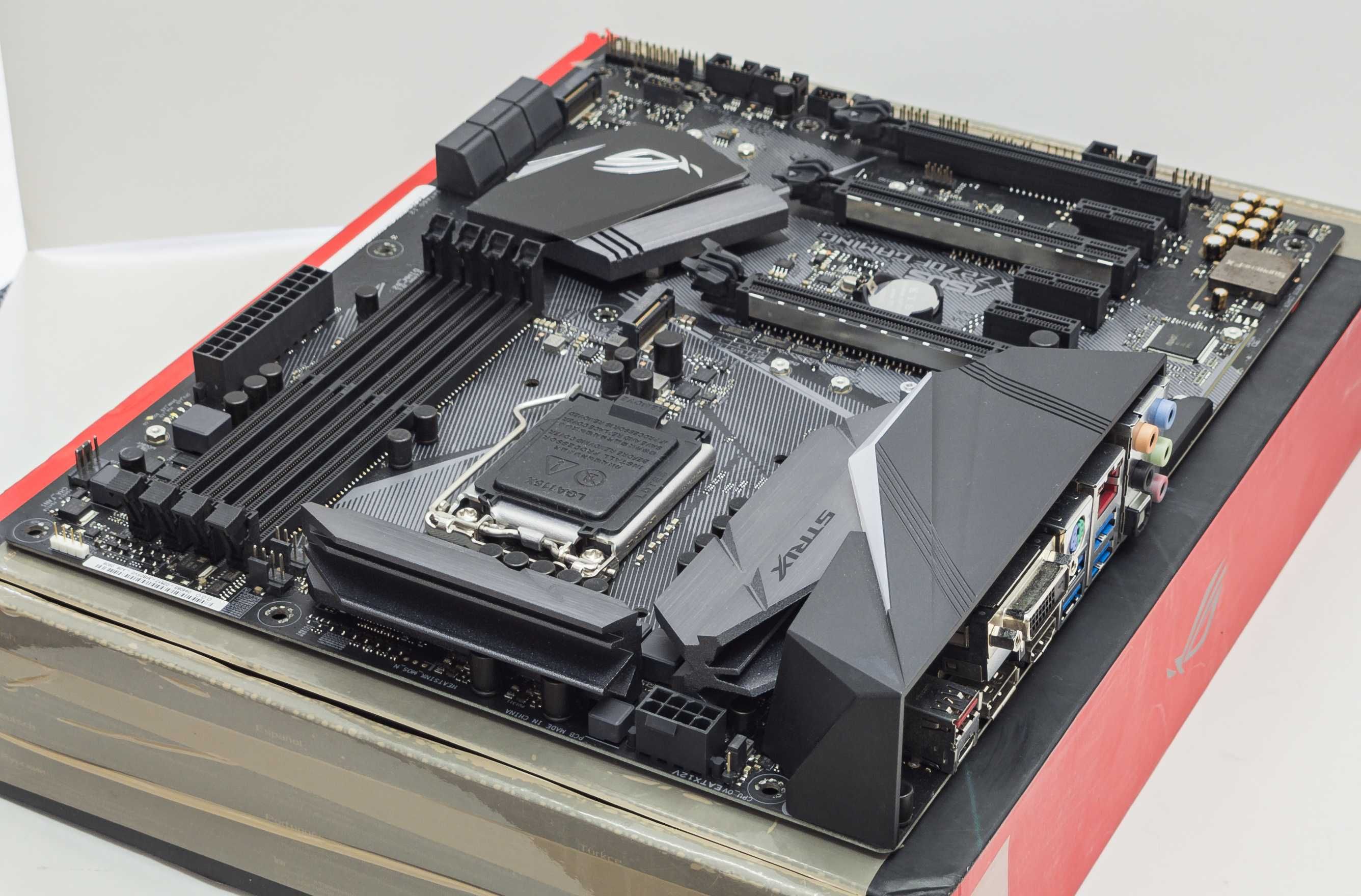

ASUS ROG STRIX Z270F GAMING LGA1151 ATX Z270 gaming motherboard with Aura Sync RGB LED, DDR4 3866MHz, Dual M.2, USB 3.1 Type C, SATA 6Gb/s, and HDMI

The successor to the Z170 Pro Gaming motherboard series
Unmatched personalization with ASUS exclusive AURA Sync RGB lighting, two additional RGB headers and a 3D-printing friendly mount
5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
Maximize your connectivity and speed with Dual M.2, Intel® Optane™ Memory compatibility and USB 3.1 Type-A / Type-C
Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors
Gaming networking — Best-in-class Intel® Gigabit Ethernet, LANGuard, and GameFirst technology
Two Patent-pending SafeSlots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
Спецификация
Сокет: Intel LGA 1151
Чипсет: Intel Z270
Процесори: Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Поддържана памет: 4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Аудио: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Мрежова връзка: Intel® I219V Gigabit LAN
Слотове за периферия: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
Интерфейс за данни: 6 x SATA3 6.0 Gb/s
2 x M.2 Socket (NGFF)
Изходи на задния панел: 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A + USB Type-C
4 x USB 3.1 Gen 1 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s)
Форм фактор / Размери: ATX
MPN: STRIX Z270F GAMING
Производител: ASUS
