Fully featured PA amplifier with 2 independent stereo zone outputs and mixer section for 2 microphones and a stereo audio source.

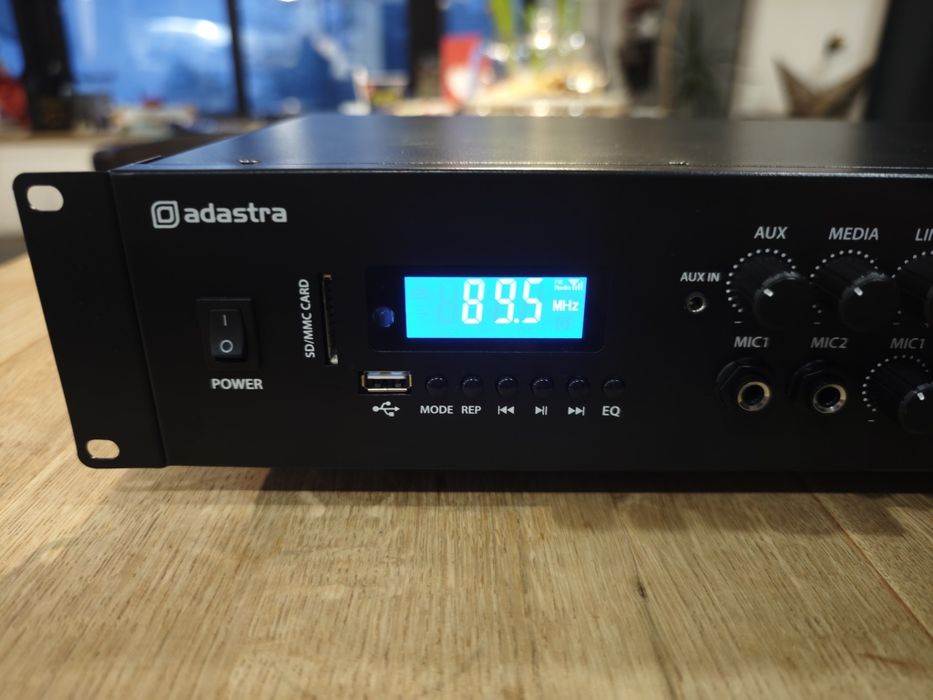

An inbuilt media player section offers playback of MP3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner.

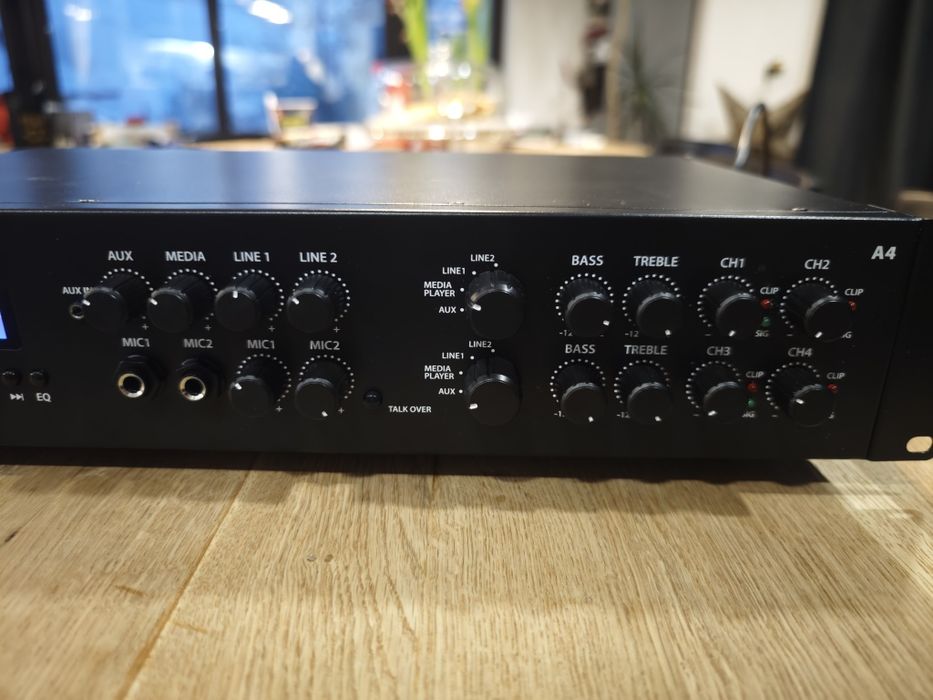

A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player.

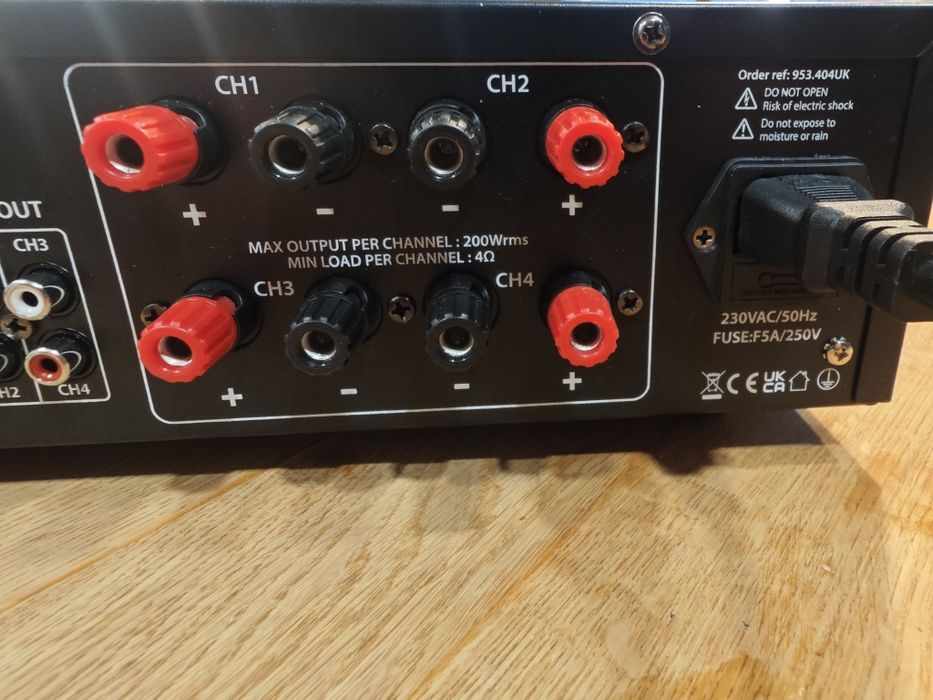

Mic inputs 1 and 2 are live to both output zones at all times. 2 pairs of speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers on each of the 4 channels to deliver up to 4 x 200W.

Designed to offer installers a comprehensive dual zone PA for bars, restaurants and function rooms.

FEATURES
Independent stereo playback to 2 separate zones
Media player with USB/SD playback
FM radio tuner with external aerial connection
Bluetooth receiver

Specifications
Power supply: 230Vac, 50Hz (IEC)
Fuse: F5A, 250V
Output power: rms 4 Ohms4 x 200W
Output power: rms 8 Ohms4 x 100W
Amplifier : construction Class D
Frequency response: 20Hz - 20kHz ±0.5dB
Microphone inputs: 2 x 6.3mm jack (mono)

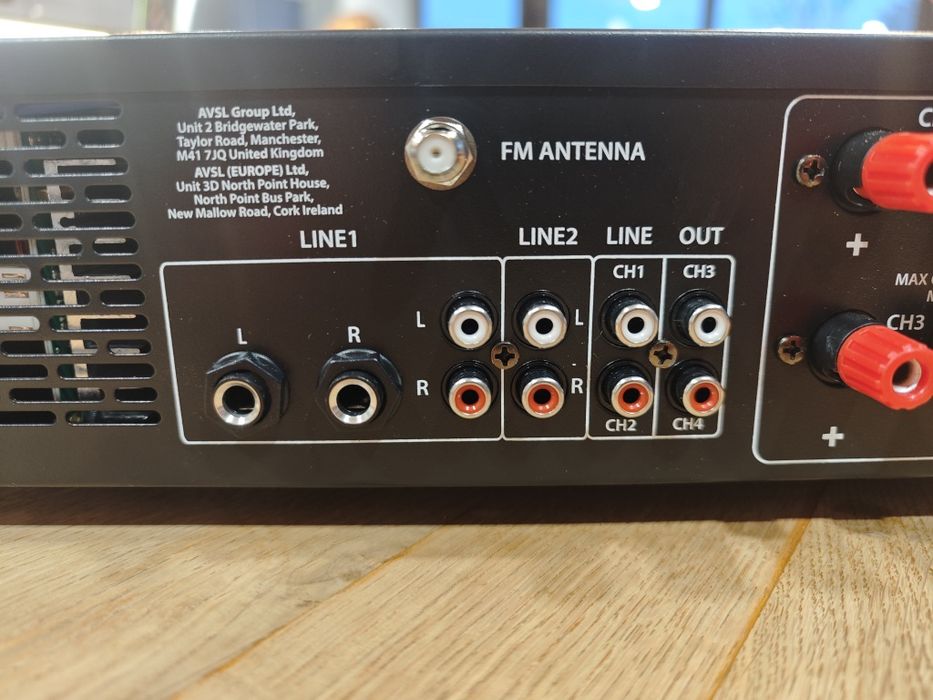

Line inputsLine 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
Input sensitivity: line 0.775Vrms
Auxiliary input: 3.5mm stereo jack
Input sensitivity : aux0.480Vrms
Input impedance: 20k Ohms (balanced), 10k Ohms (unbalanced)
Audio source: USB/SD mp3 playback, FM tuner, BT receiver
Bluetooth version: 2.3
Input controls :Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
Line output: 4 x RCA
Speaker outputs: 4mm binding posts (4 channels)
Antenna connection: F type (FM tuner)
Output controls: 2 x source select, 2 xBass, 2 xTreble, Ch1, Ch2, Ch3, Ch4
Dynamic range: 92dB
THD +N: 0.1%
Protection: Thermal, over-current, over-voltage, short-circuit
Dimensions: 482 x 240 x 88mm
Weight: 5.98kg
