Продавам нови клетки за сглобяване на батерии с гарантиран капацитет от 314Ah ( достига до 335Ah).

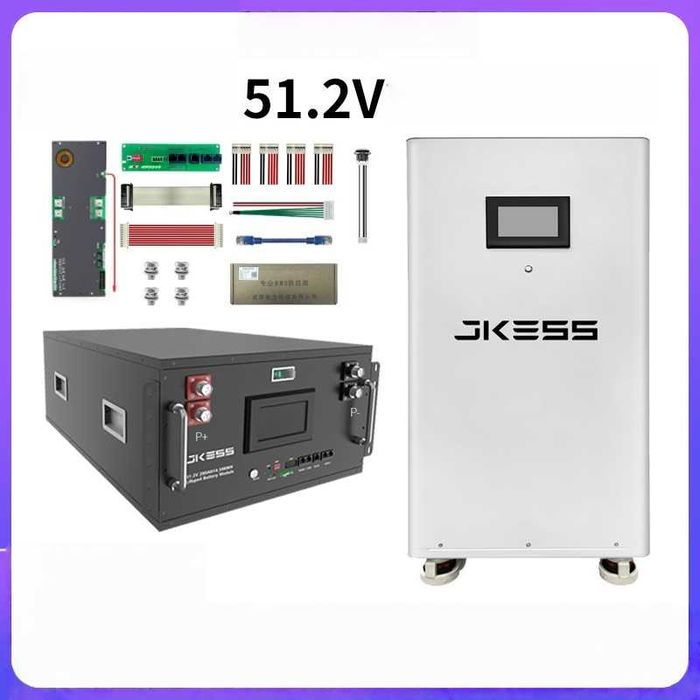

Може и сглобяване във фабрични кутии като на снимката с BMS JK PB2A16S20P 200A , активен баланс 2А и топ баланс.
В комплект с медни шини за свързване и изолационни плочи за изолация между клетките в пакета.
Идеални за съхранение на енергия от соларни панели, вятърни турбини и други източници.

Product Information:

LISHEN 314Ah LiFePO4 3.2V Grade A+

These Cells are Original LiFePO4 cells directly from DEJIN, with certificate, and the actual capacity of the cells are 325–340Ah (each cell is individually tested and signed by the inspector).

- 314Ah capacity – Ideal for energy storage projects

- Grade A quality – Automated production, tested with precise measuring equipment

- 8000+ cycles – Long lifespan for sustainable energy supply

- QR code engraved – Each cell individually marked

- Balanced cells – Ready for immediate use and of the highest quality

Available documents:
LISHEN 314AH Battery Specification Sheet
UN38.3
MSDS
Risk Disclosure
Important Installation Notice:
To avoid contact resistance, the following points must be observed:

- Thoroughly clean the battery terminals with ethanol or pure alcohol to remove oxide layers.
- The terminals must not be touched with greasy fingers – they must be absolutely grease-free and clean.
- Ideally, the contacts should be cleaned with a brass brush or fine sandpaper (grit 1000).
- The contact surfaces of the cell connectors must also be carefully cleaned.
- The use of assembly greases, copper paste, or similar substances must be strictly avoided – they cause contact resistance, which can lead to heat generation and measurement errors during operation. As a result, the full capacity of the cells cannot be utilized.

- Tighten the M6 screws with a torque of 6 Nm.



NOTE

We recommend a maximum discharge down to 2.70 V and a maximum charge of each cell up to 3.50 V.

48.0 V system: Max. voltage 56.0 V, Max. discharge 43.3 V
24.0 V system: Max. voltage 28.0 V, Max. discharge 21.65 V
12.0 V system: Max. voltage 14.0 V, Max. discharge 10.82 V

Application
Solar energy storage, solar power system, UPS supply, Engine starting battery, Electric bicycle/motorcycle/scooter, Golf trolley/carts, RV, EV, Caravan So on.
